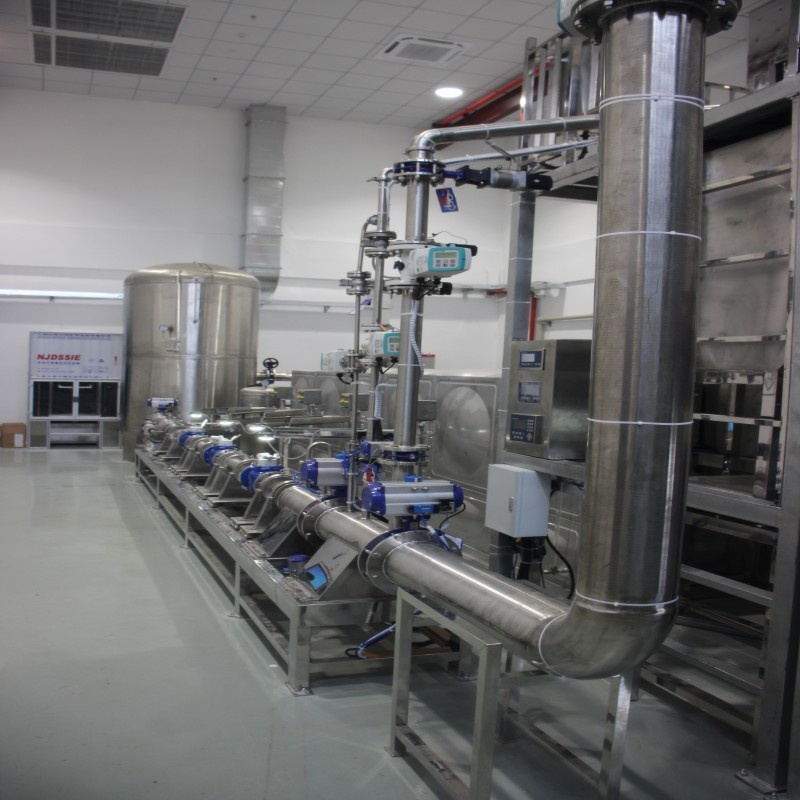

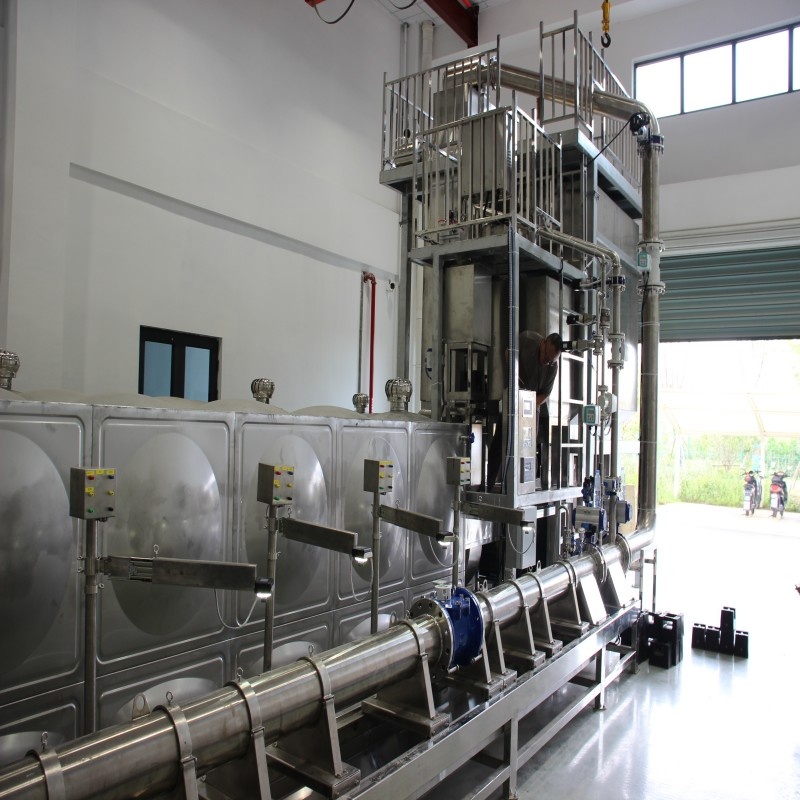

DN50-200 Fully Automatic Water Meter Wear Device

Mettler Toledo stainless steel electronic scales 150KG(6000e,30000d), 3000KG(6000e,30000d),12000KG(3000e)

Verification Caliber	DN50-200
Capacity	DN50 1pcs,DN80 1pcs, DN100 1pcs, DN150 1pcs, DN200 1pcs
Measurement Range	0.3-630 m³/h
Device Expansion Uncertainty	≤0.2% (k=2)
Water Meter Type	"Ultrasonic water meter Mechanical water meter Electromagnetic water meter"
Electronic Scale	Mettler Toledo stainless steel electronic scales 150KG(6000e,30000d), 3000KG(6000e,30000d),12000KG(3000e)
Water Source Power System	Nanfang Pump, (Flow Rate:5 M³/H, Head:34.6m) 1pcs (Flow Rate:100 M³/H, Head:30m) 2pcs (Flow Rate:400 M³/H, Head:32m) 2pcs
Electromagnetic Flowmeters	German Siemens Electromagnetic flowmeters (DN15, Measurement Range:0.15-6.36m³/h) (DN125, Measurement Range:10-400m³/h)
Real-time pressure monitoring	German JUMO, range:0-4mpa, accuracy:≤0.2%
Material of the device	"Made of high-quality industrial aluminum and stainless steel 304,durable and excellent appearance"
Computer Software And Hardware	It adopts touch industrial control integrated design, supports Win10 64-bit operating system with a simple and efficient operation interface. The hardware is equipped with 8GB memory, 128G SSD, 1TB hard disk, 17-inch Capacitive Touch screen and supports diversified expansion
Communication	Modbus/RS232 Serial Port
