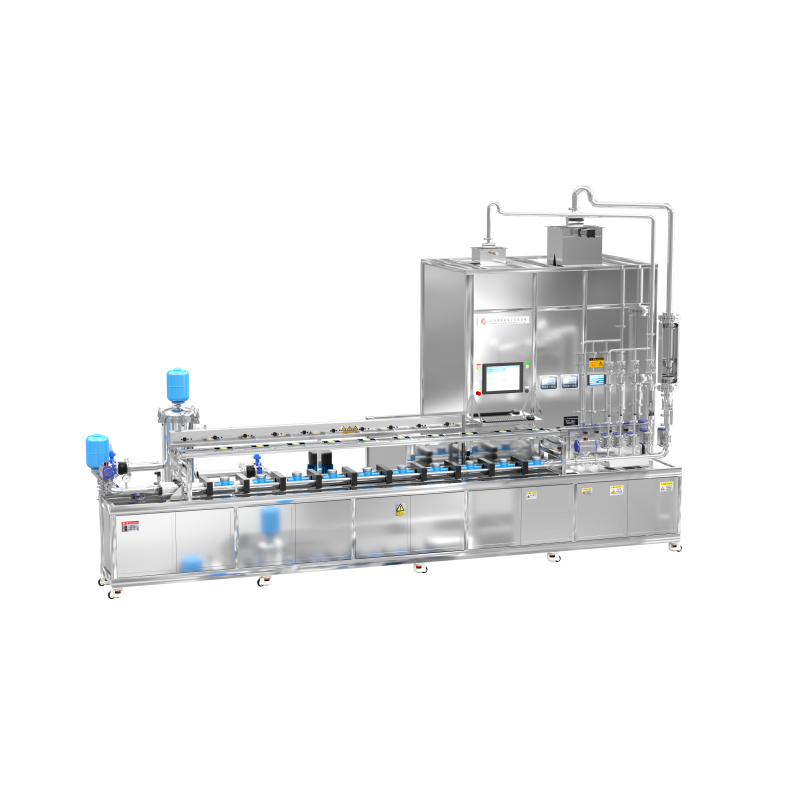

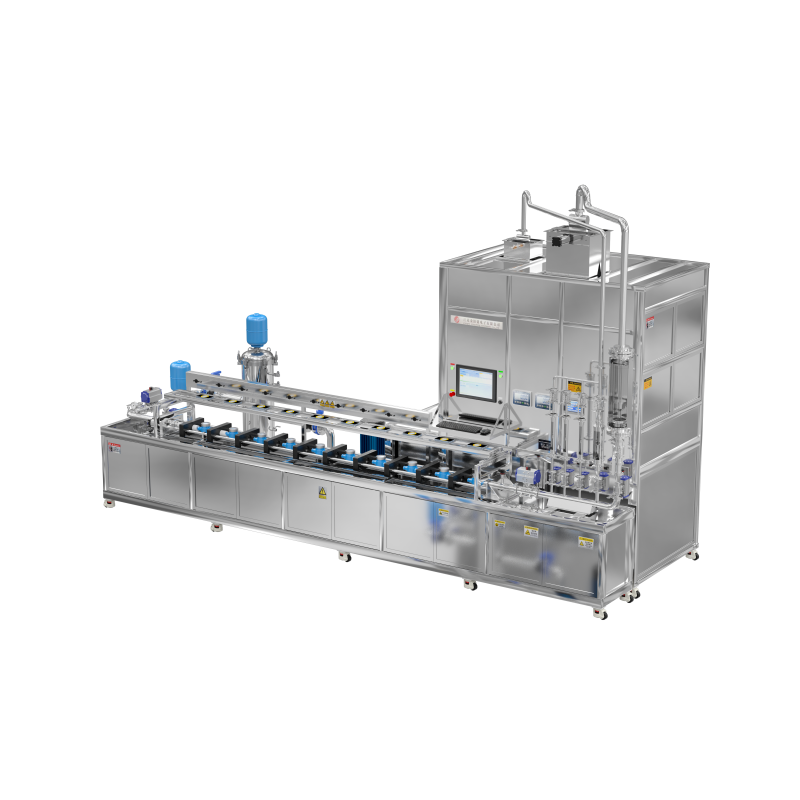

DN15-50 Flow Meter Test Bench

DN15-50 Flow Meter Test Bench(inspection equipment)

Verification caliber	DN15-50
Capacity	DN15 10pcs、DN20 8pcs、DN25 6pcs DN32 2pcs、DN40 2pcs、DN50 1pcs
Measurement Range	(0.06~40)m³/h
Electronic Scale resolution	①Max=30kg，6000e Max=600kg，3000e
Water Source Power System	"Flow Rate: 10m³/h, Pump Head: 50m Flow Rate: 50m³/h, Pump Head: 40m
Water supply operating pressure adjustable、Pneumatic supply pressure	0.0-0.5Mpa 0.4-0.7MPa
Device Expansion Uncertainty	Master meter method: U_rel ≤ 0.3 % (k = 2) Static weighing method: U_rel ≤ 0.05 % (k = 2)
Flow Meter Type	Electromagnetic Flow Meter Ultrasonic Flow Meter Mass Flow Meter
Meter clamping method	individual pneumatic clamp
Reversing Valve	Open-Type Reversing Valve
Material of the device	Made of high-quality industrial aluminum and stainless steel 304,durable and excellent appearance
Data acquisition system	Mobile device, 4–20 mA, infrared, RS-232, pulse
