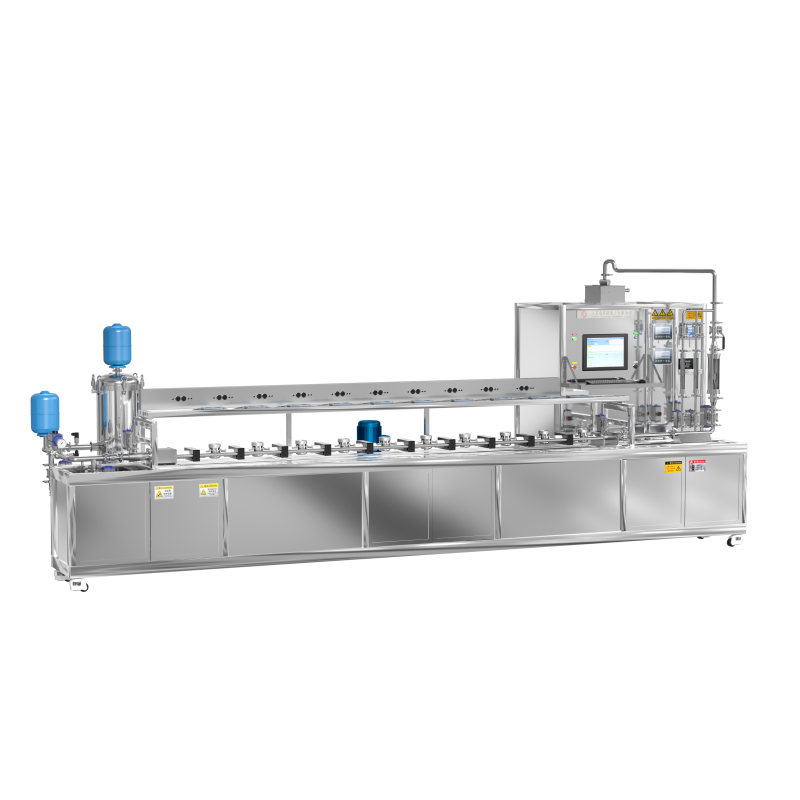

DN15-25 Flow Meter Test Bench

DN15-25 Flow Meter Test Bench(inspection equipment)

Verification caliber	DN15-25
Capacity	DN15 10pcs、DN20 8pcs、DN25 6psc
Measurement Range	(0.01~8)m³/h
Electronic Scale resolution	①Max=30kg，6000e ②Max=150kg，30000d
Water Source Power System	Flow rate 10m³/h，Pump Head 62m
Water supply operating pressure adjustable、Pneumatic supply pressure	0.3-0.7Mpa 0.4-0.7MPa
Device Expansion Uncertainty	Master meter method: U_rel ≤ 0.3 % (k = 2) Static weighing method: U_rel ≤ 0.05 % (k = 2)
Flow Meter Type	Electromagnetic Flow Meter Ultrasonic Flow Meter Mass Flow Meter
Meter clamping method	individual pneumatic clamp
Reversing Valve	Open-Type Reversing Valve
Material of the device	Made of high-quality industrial aluminum and stainless steel 304,durable and excellent appearance
Data acquisition system	Mobile device, 4–20 mA, infrared, RS-232, pulse
