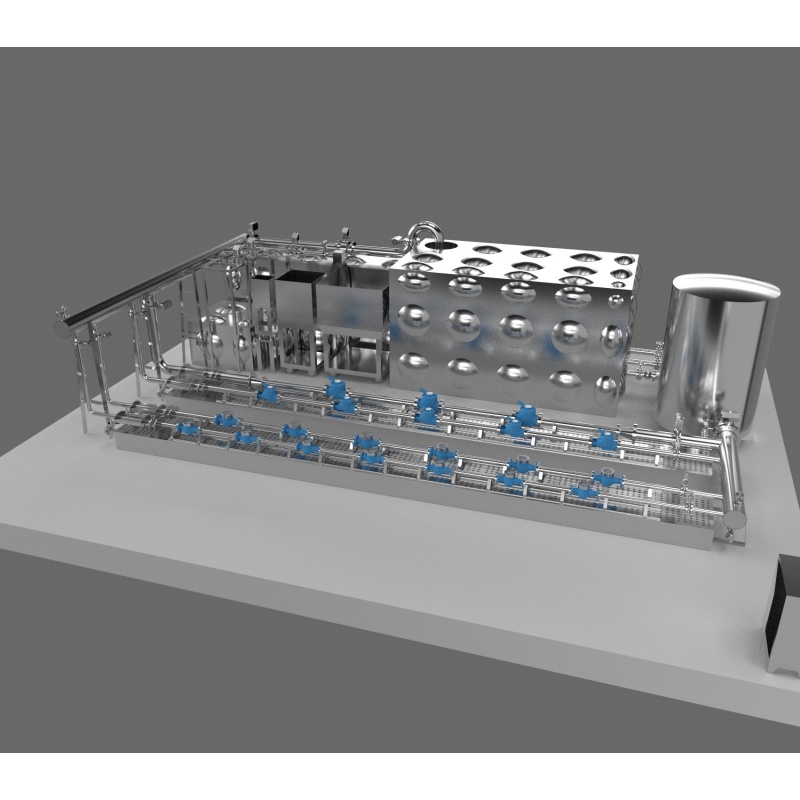

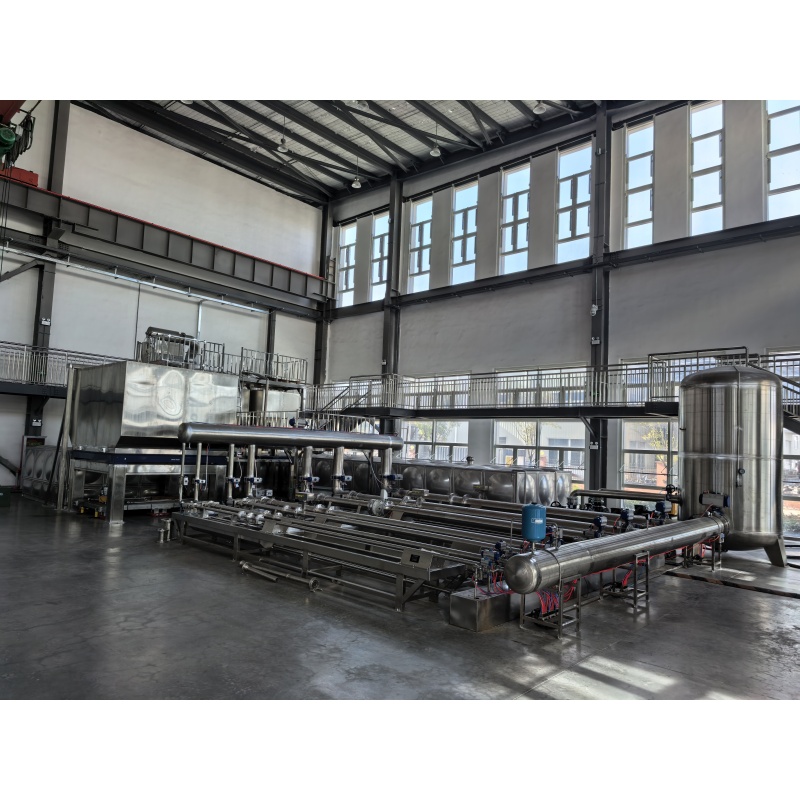

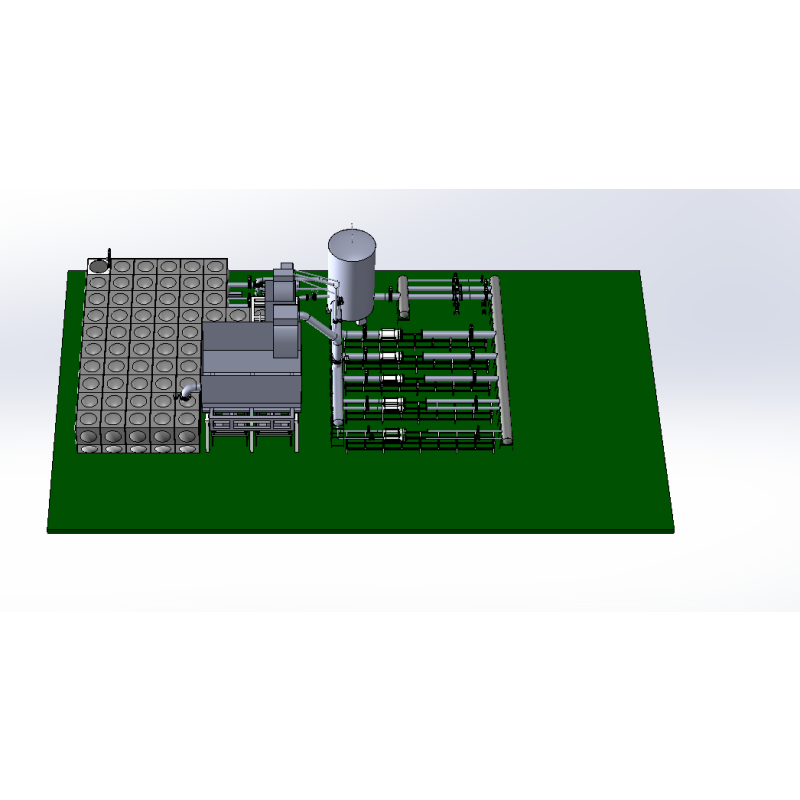

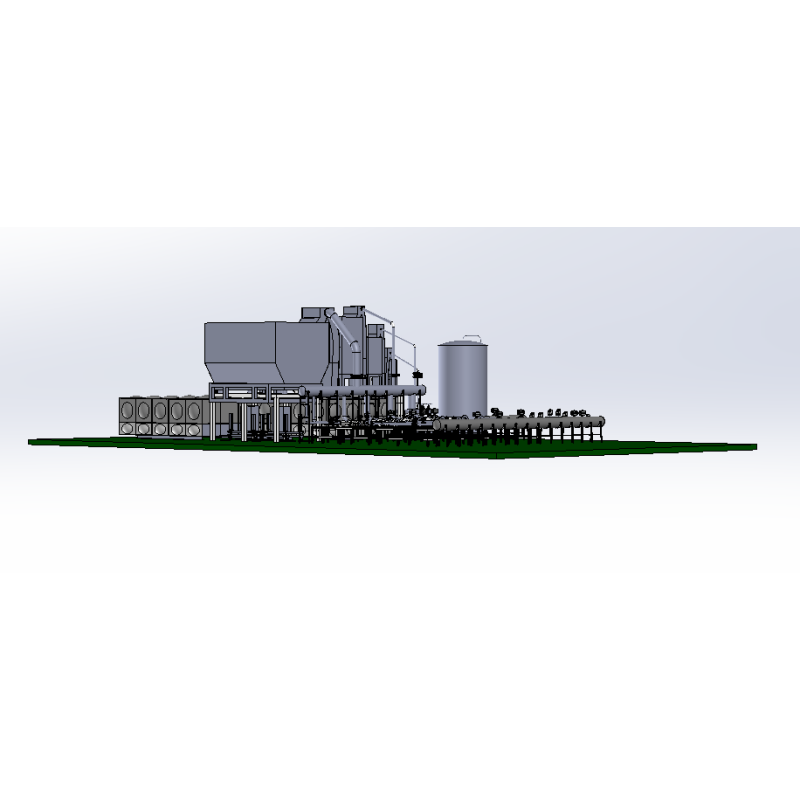

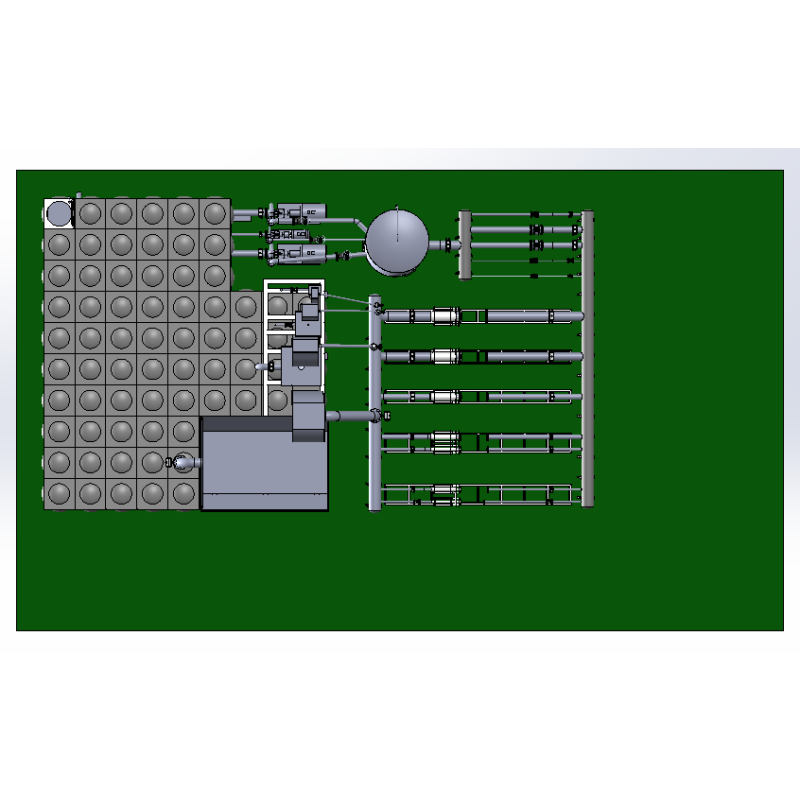

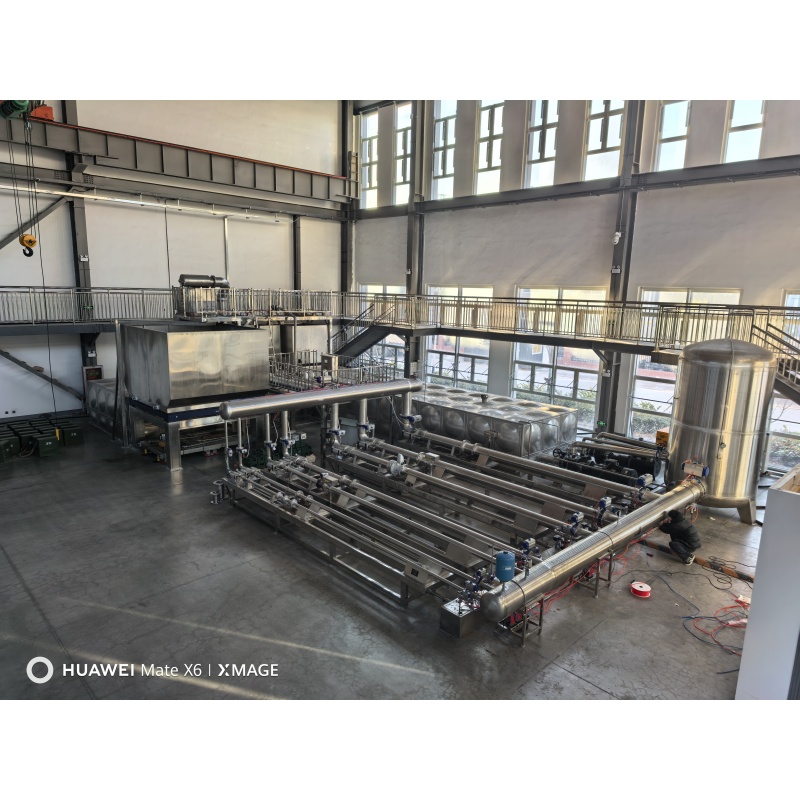

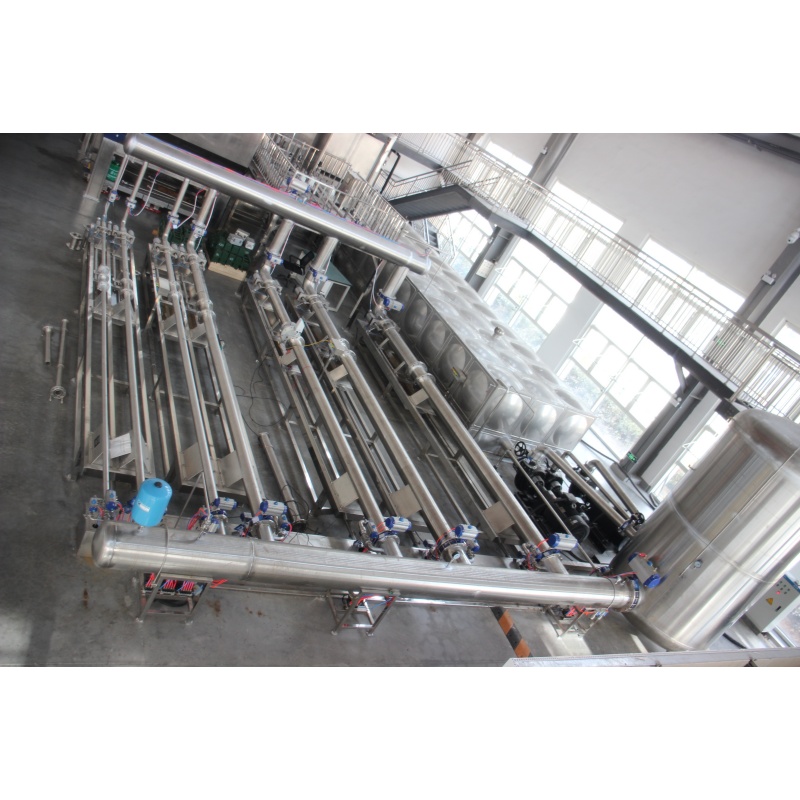

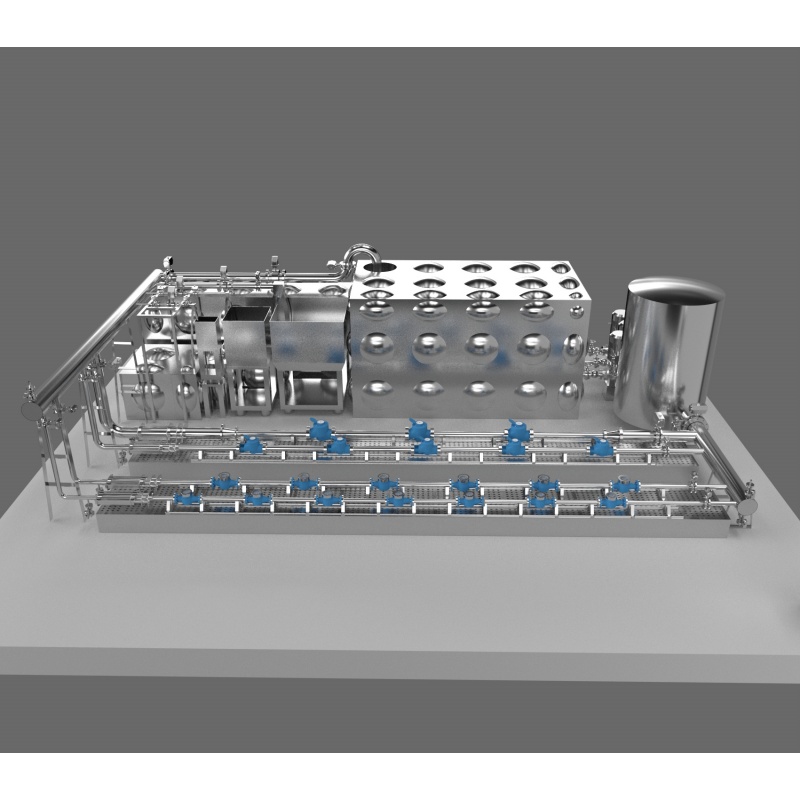

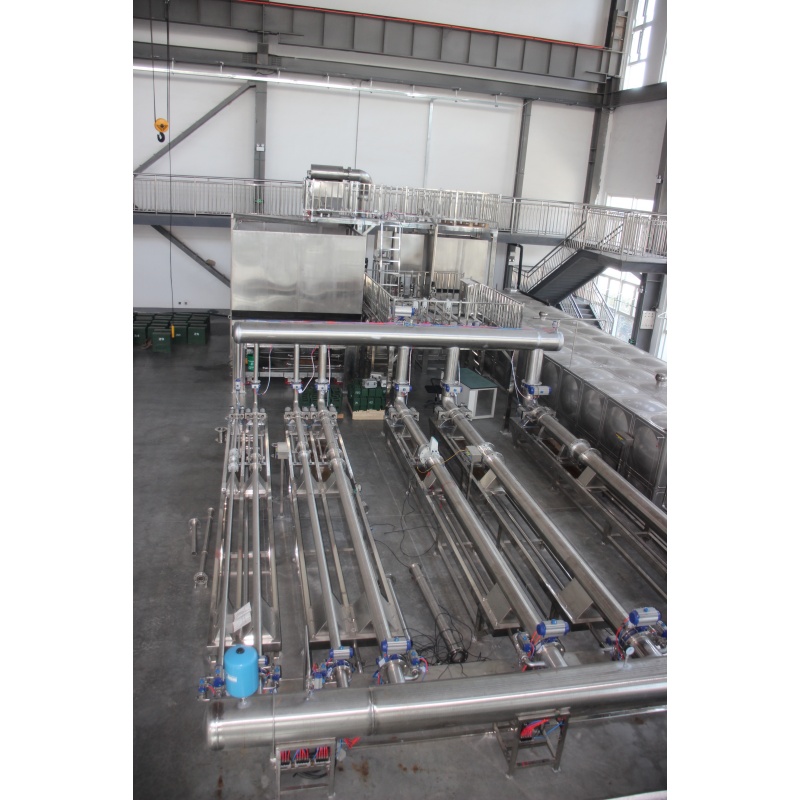

DN50-300 Flow Meter Test Bench

DN50-300 Flow Meter Test Bench(inspection equipment)

Verification caliber	DN50-300
Capacity	DN50 1pcs、DN80 1pcs、DN100 1pcs DN125 1pcs、DN150 1pcs、DN200 1pcs DN250 1pcs、DN300 1pcs
Measurement Range	(0.3~1200)m³/h
Electronic Scale resolution	150KG:6000e，30000d 12000KG:6000e 3000KG:6000e，30000d 20000KG:3000e
Water Source Power System	Flow Rate: 5m³/h, Pump Head: 34.6m Flow Rate: 12.5m³/h, Pump Head: 33m Flow Rate: 100m³/h, Pump Head: 30m（2 set） Flow Rate: 540m³/h, Pump Head: 30m（3 set）
Water supply operating pressure adjustable、Pneumatic supply pressure	0.0-0.5Mpa 0.4-0.7MPa
Device Expansion Uncertainty	Master meter method: U_rel ≤ 0.3 % (k = 2) Static weighing method: U_rel ≤ 0.05 % (k = 2)
Flow Meter Type	Electromagnetic Flow Meter Ultrasonic Flow Meter Mass Flow Meter
Meter clamping method	individual pneumatic clamp
Reversing Valve	Open-Type Reversing Valve
Material of the device	Made of high-quality industrial aluminum and stainless steel 304,durable and excellent appearance
Data acquisition system	Mobile device, 4–20 mA, infrared, RS-232, pulse
