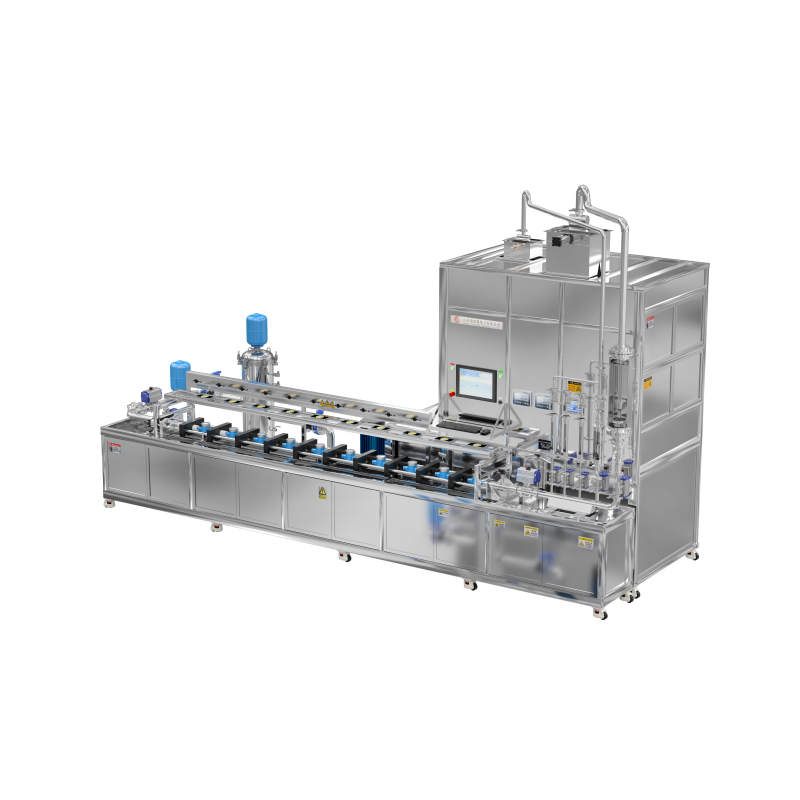

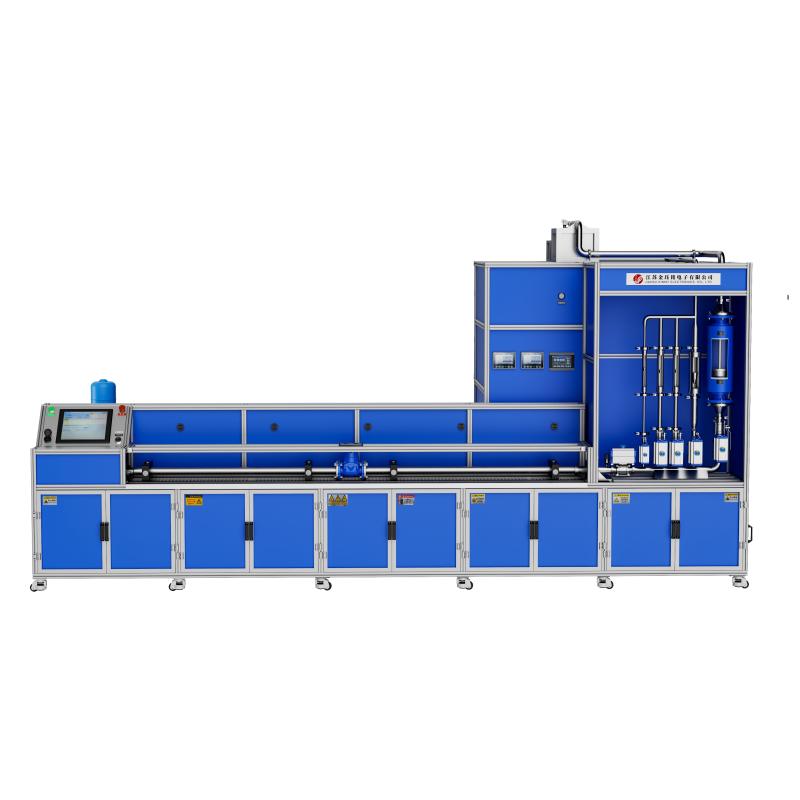

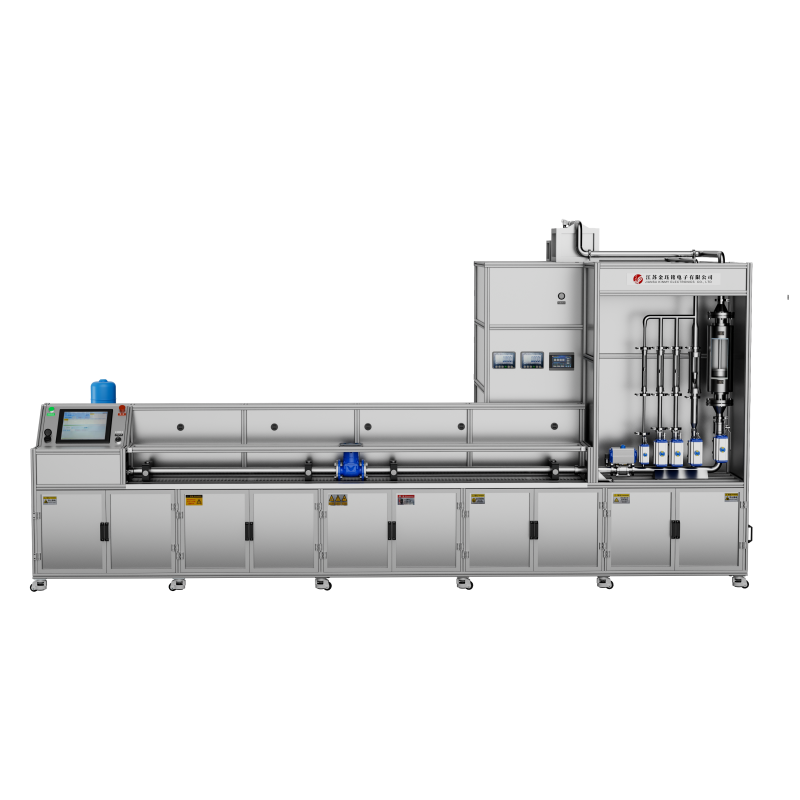

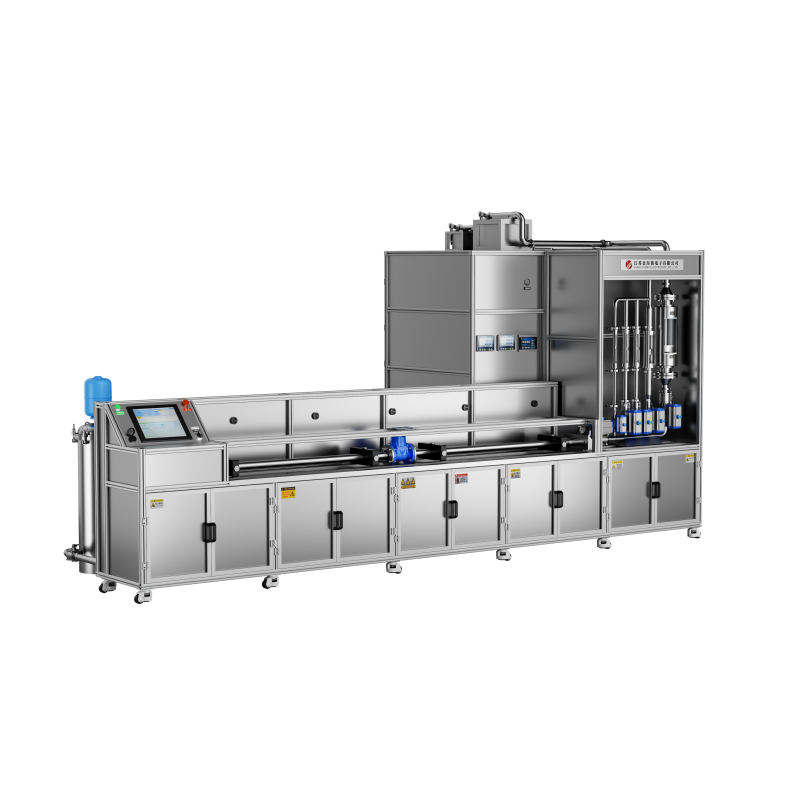

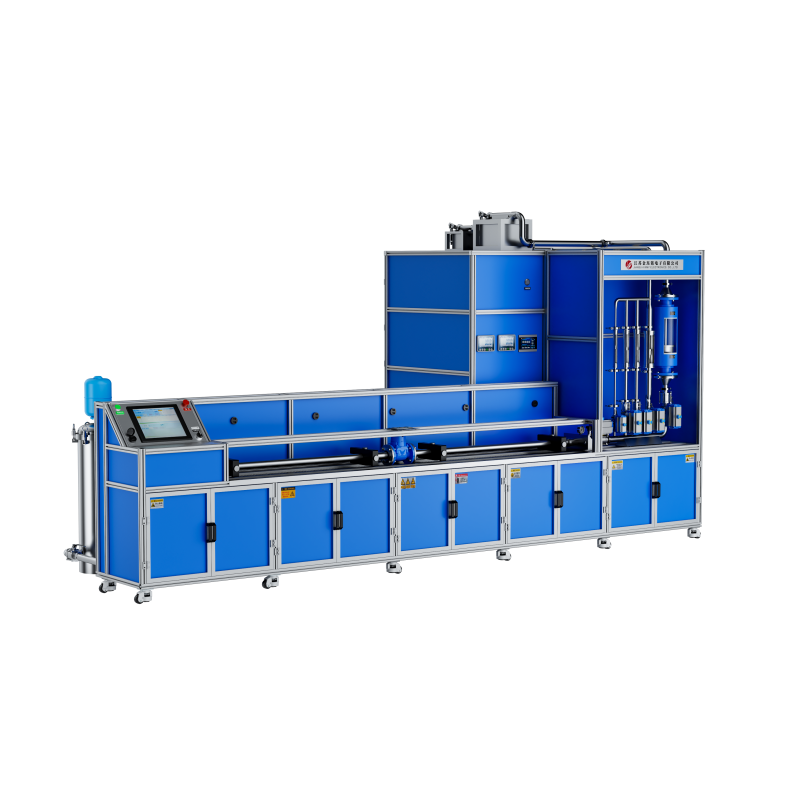

DN15-100 Flow Meter Test Bench

DN15-100 Flow Meter Test Bench(inspection equipment)

Verification caliber	DN15-100
Capacity	DN15 6pcs、DN205pcs、DN25 4pcs DN32 3pcs、DN40 3pcs DN50/65 1pcs、DN80 1pcs、DN100 1pcs
Measurement Range	(0.006~160)m³/h
Electronic Scale resolution	150KG:6000e 15KG:6000e，30000d 300KG:6000e，30000d 3000KG:6000e
Water Source Power System	Flow Rate: 2.5m³/h, Pump Head: 35m Flow Rate: 20m³/h, Pump Head: 50.3m Flow Rate: 100m³/h, Pump Head: 30m （2 set）
Water supply operating pressure adjustable、Pneumatic supply pressure	0.0-0.5Mpa 0.4-0.7MPa
Device Expansion Uncertainty	Master meter method: U_rel ≤ 0.3 % (k = 2) Static weighing method: U_rel ≤ 0.05 % (k = 2)
Flow Meter Type	Electromagnetic Flow Meter Ultrasonic Flow Meter Mass Flow Meter
Meter clamping method	individual pneumatic clamp
Reversing Valve	Open-Type Reversing Valve
Material of the device	Made of high-quality industrial aluminum and stainless steel 304,durable and excellent appearance
Data acquisition system	Mobile device, 4–20 mA, infrared, RS-232, pulse
