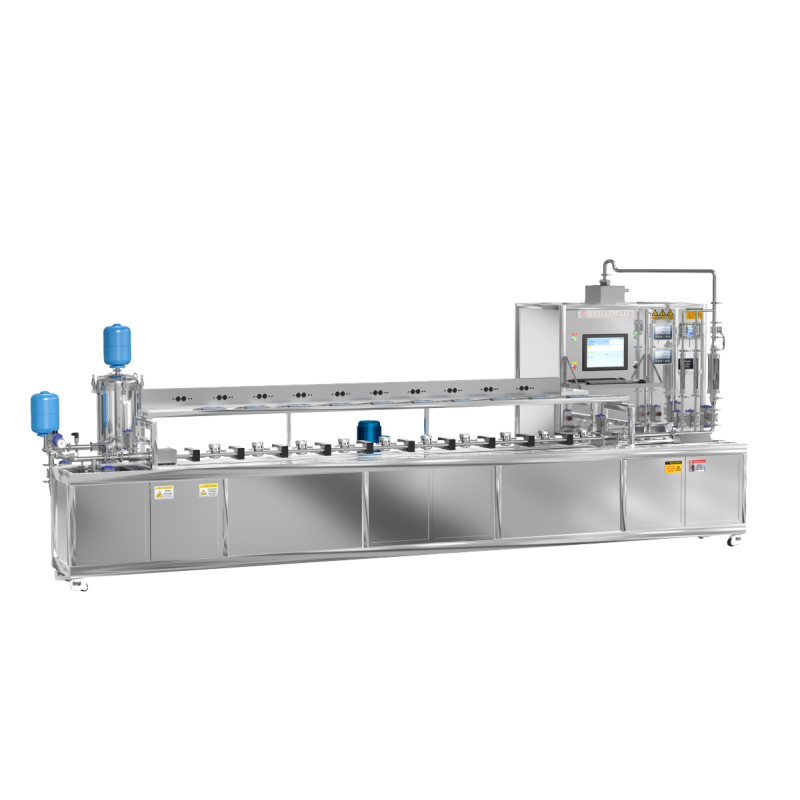

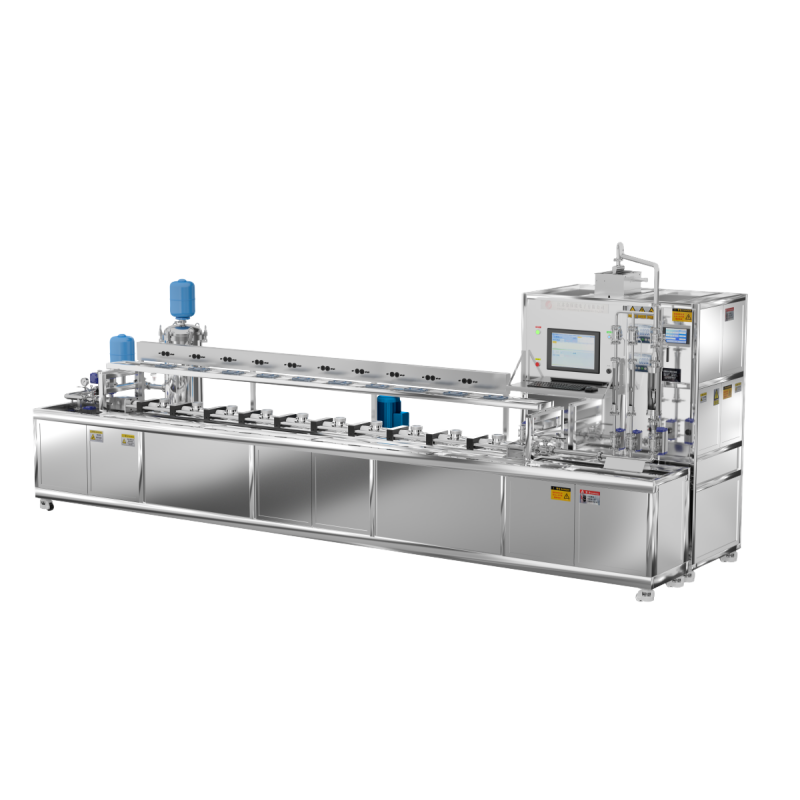

DN15-DN50 Automatic Water Meter Durability Test Bench

Calibration Medium	Pure Tap Water
Environmental Conditions	Atmospheric temperature is 3℃-35℃ The relative humidity of the atmosphere is 15%-85% Atmospheric pressure is 86 KPa -106Kpa
Caliber Of The Meter Being Inspected	DN15, DN20, DN25
Number Of Test Tables At One Time	DN15 5 pieces, DN20 5 pieces, DN25 5 pieces; DN32 2 pieces, DN40 2 pieces, DN50 2 pieces
Working Voltage	AC220V/380V
Water Source Working Pressure	0.2-0.47Mpa adjustable, air source; Working Pressure: 0.4-0.7MPa
Meter Clamping Mechanism	Two-Row Single Meter Independent Pneumatic Meter Clamping Device
Diameter	Φ32mm Telescopic stroke ≥80mm
Diameter	Φ50mm Telescopic stroke ≥100mm
Water Pump	South Water Pump CDMF-3-7, flow rate 10m3/h, head 62 meters
Water Tank	200L
