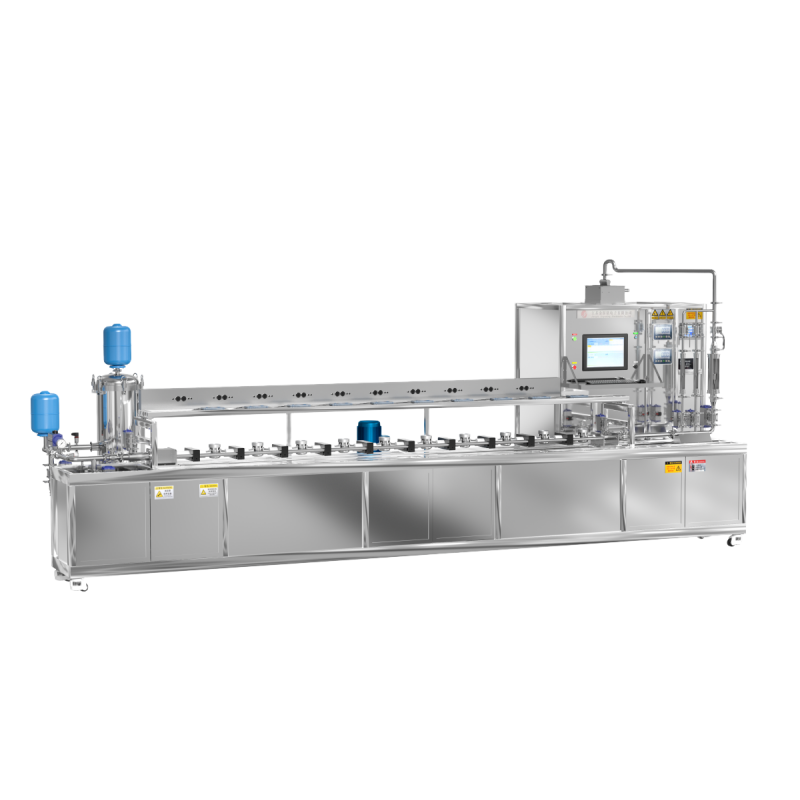

DN15-25 Fully Automatic Water-Meter Filling & Pressure-Testing Machine

DN15-25 Fully Automatic Water-Meter Filling & Pressure-Testing Machine

DN15-DN40 Fully Automatic Water Injection And Pressing Machine

Send Inquiry

Product Description

Calibration Medium	Pure Tap Water
Environmental Conditions	Atmospheric temperature is 3℃-35℃ The relative humidity of the atmosphere is 15%-85% Atmospheric pressure is 86 KPa -106Kpa
Caliber Of The Meter Being Inspected	DN15, DN20, DN25
Number Of Screwing Meters At One Time	DN15 5 pcs, DN20 5 pcs, DN25 5 pcs, DN32 2pcs, DN40 2pcs
Working Voltage	AC220V
Water Meter Sealing Test	Pressure Range (1.6~3.2) Mpa
Vacuum System	Differential pressure vacuum generator, vacuuming and filling water to keep the water meter full of water.
Water Source Working Pressure	0.2-1.0Mpa adjustable, air source working pressure: 0.4-0.7MPa
Meter Clamping Mechanism	Single Meter Independent Pneumatic Meter Clamping Device
Diameter	Φ32mm Telescopic stroke ≥80mm
Water Pump	South Water Pump CDMF-3-7, flow rate 10m3/h, head 62 meters
Water Tank	200L
