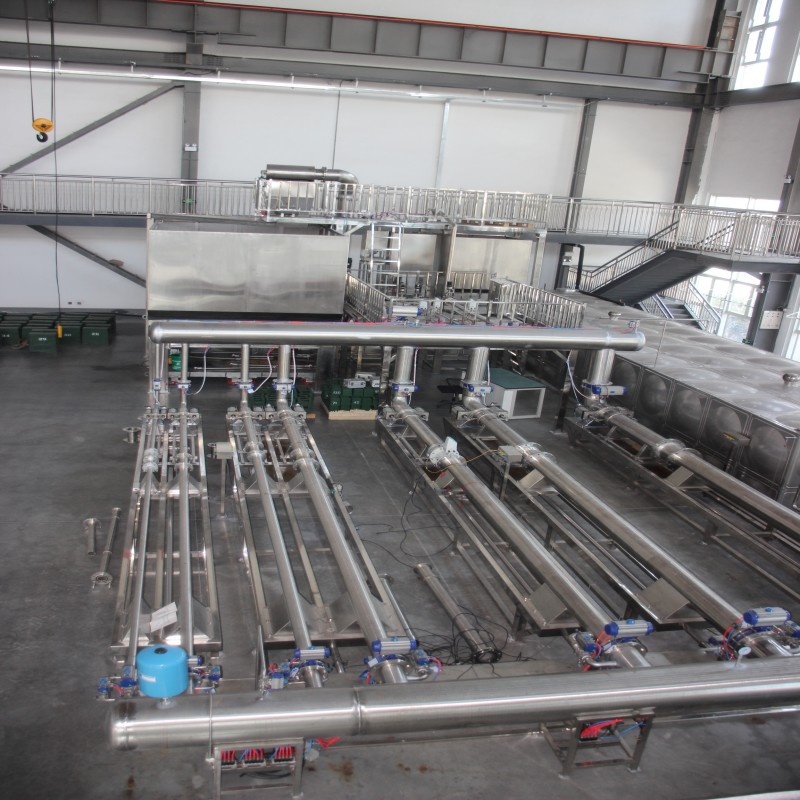

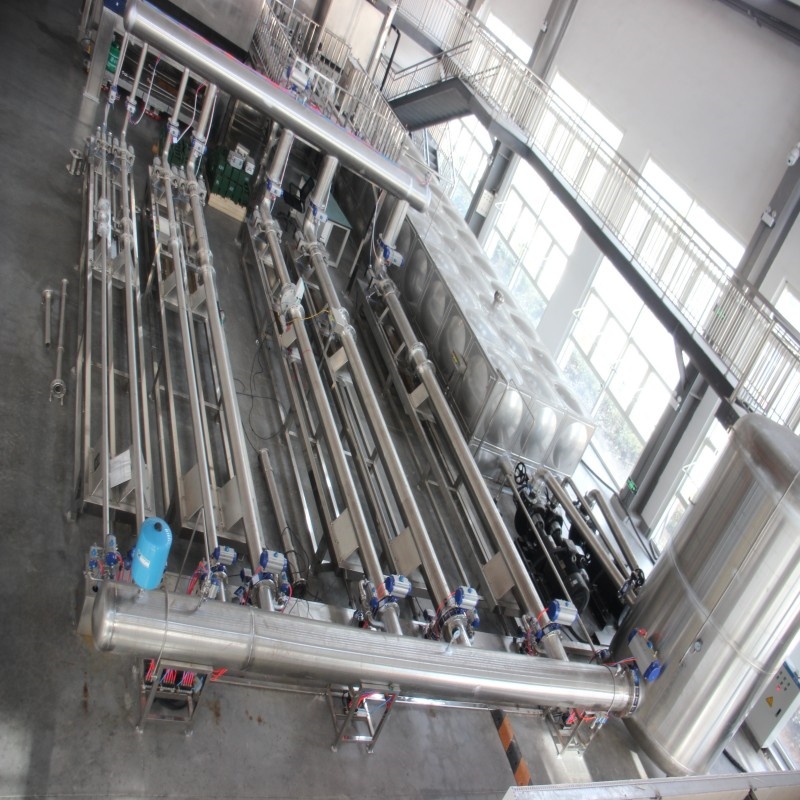

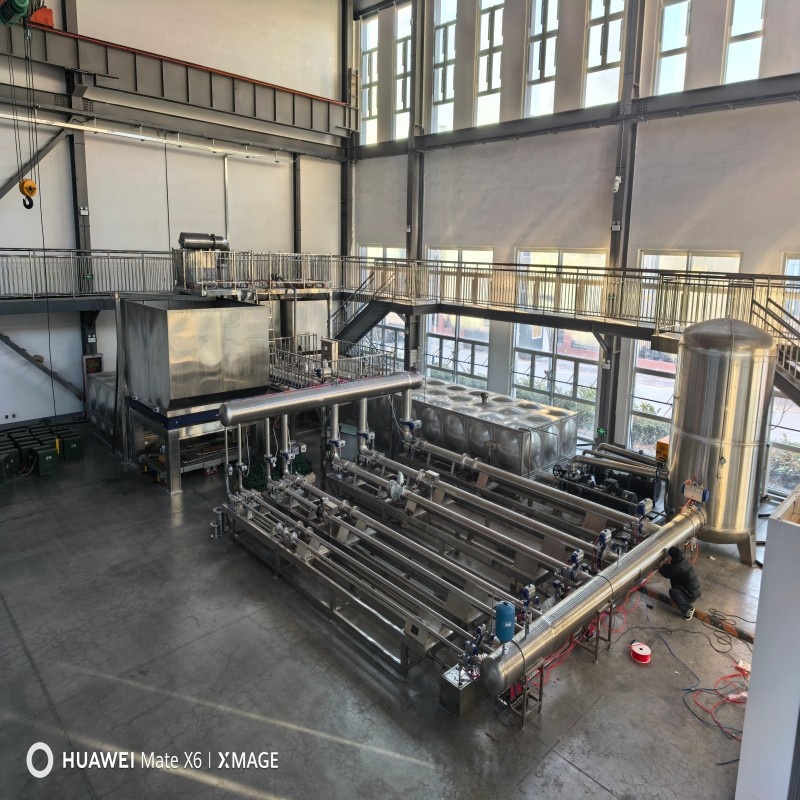

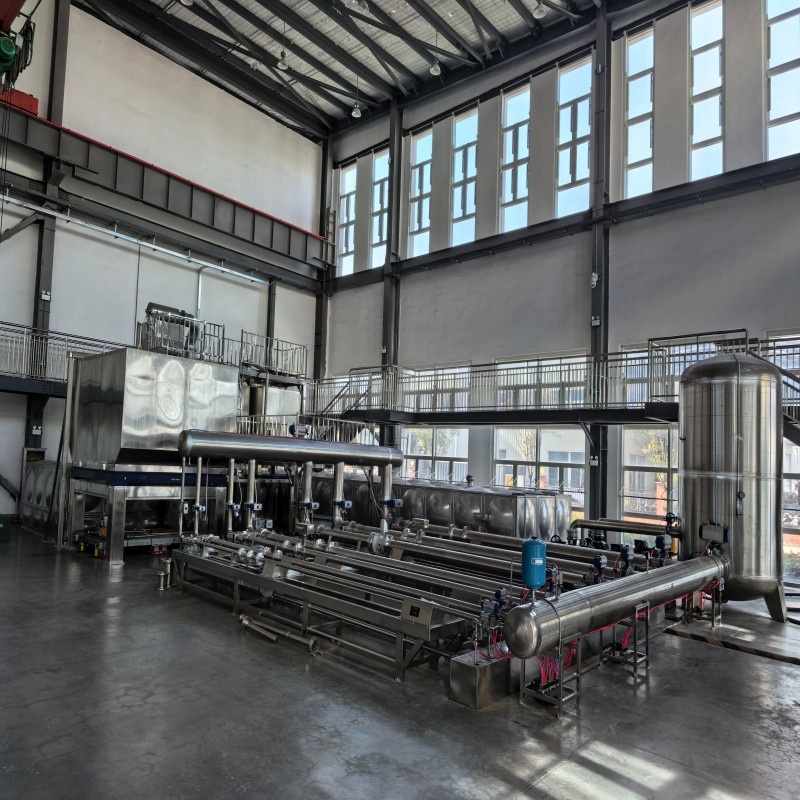

DN50-300 Fully Automatic Water Meter Endurance Test Bench

DN50-300 Fully Automatic Water Meter Endurance Test Bench

The hardware is equipped with 8GB memory, 128G SSD, 1TB hard disk, 17-inch Capacitive Touch screen and supports diversified expansion

Send Inquiry

Product Description

Verification Caliber	DN50-300
Capacity	DN50 1pcs, DN80 1pcs, DN100 1pcs, DN150 1pcs, DN200 1pcs, DN250 1pcs, DN300 1pcs
Measurement Range	0.3-1200 m³/h
Device Expansion Uncertainty	≤0.2% (k=2)
Water Meter Type	"Ultrasonic water meter Mechanical water meter Electromagnetic water meter"
Electronic Scale	Mettler Toledo stainless steel electronic scales 150KG(6000e,30000d), 3000KG(6000e,30000d),12000KG(6000e), 20000KG(3000e)
Water Source Power System	Nanfang Pump, (Flow Rate:5 M³/H, Head:34.6m) 1pcs (Flow Rate:12.5 M³/H, Head:33m) 1pcs (Flow Rate:100 M³/H, Head:30m) 2pcs (Flow Rate:540 M³/H, Head:30m) 3pcs
Electromagnetic Flowmeters	German Siemens Electromagnetic flowmeters (DN10, Measurement Range:0..07-2.82m³/h) (DN15, Measurement Range:0.15-6.36m³/h) (DN125, Measurement Range:10-400m³/h) (DN250, Measurement Range:40-1600m³/h)
Real-time pressure monitoring	German JUMO, range:0-4mpa, accuracy:≤0.2%
Material of the device	"Made of high-quality industrial aluminum and stainless steel 304,durable and excellent appearance"
Computer Software And Hardware	It adopts touch industrial control integrated design, supports Win10 64-bit operating system with a simple and efficient operation interface. The hardware is equipped with 8GB memory, 128G SSD, 1TB hard disk, 17-inch Capacitive Touch screen and supports diversified expansion
Communication	Modbus/RS232 Serial Port
