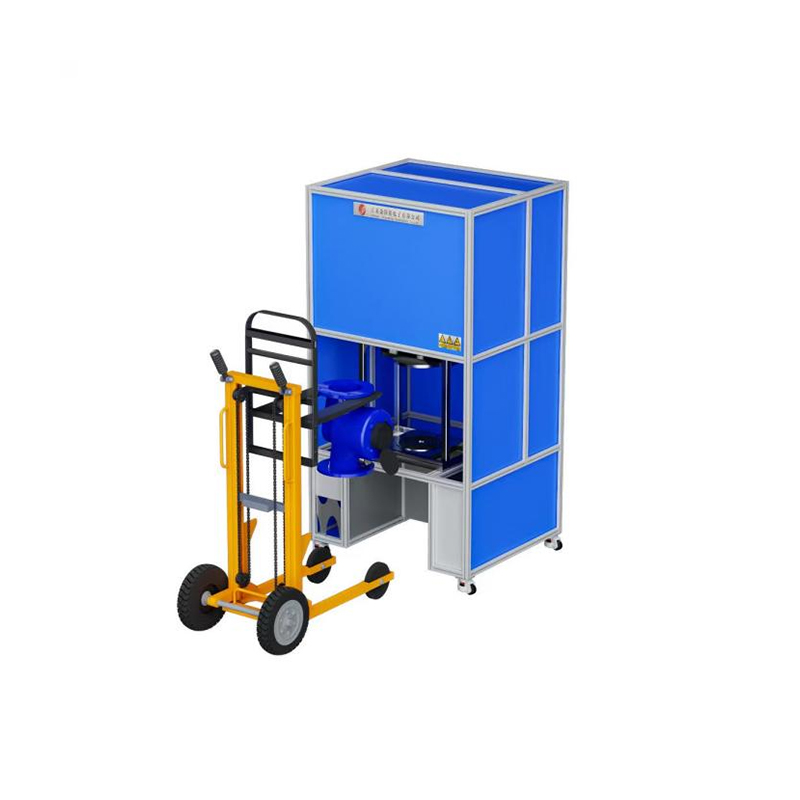

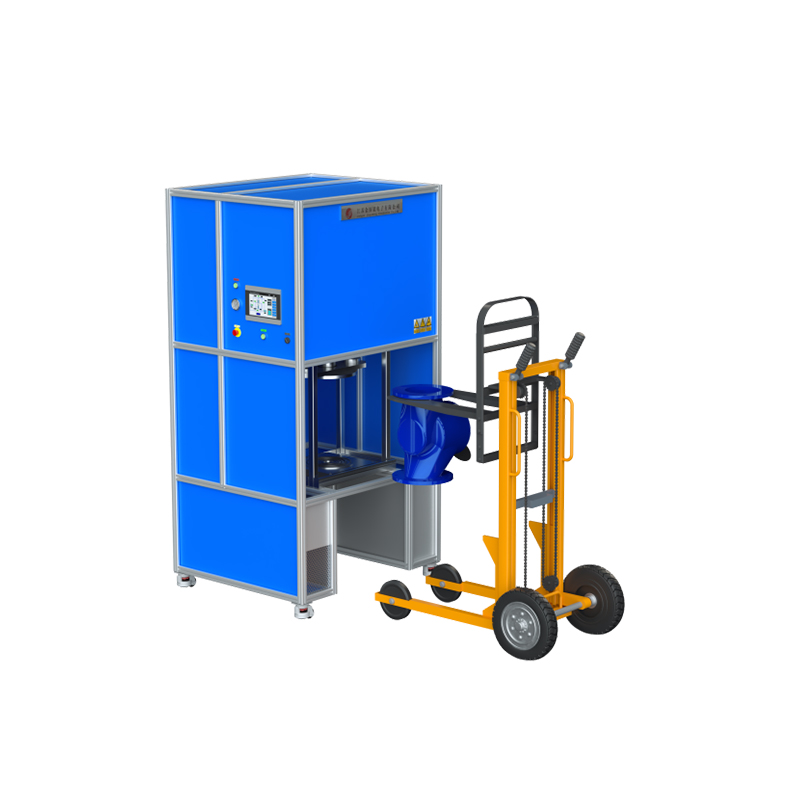

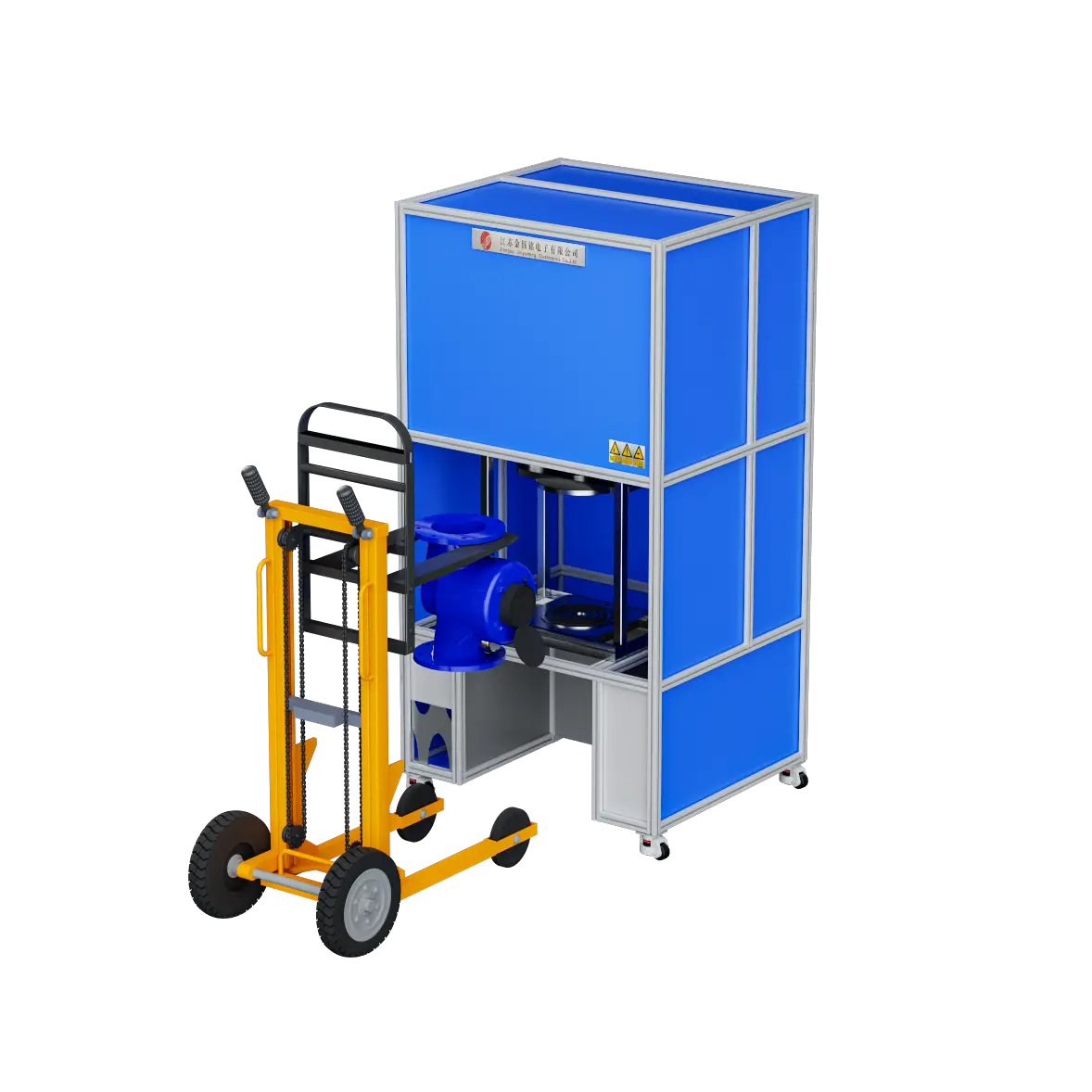

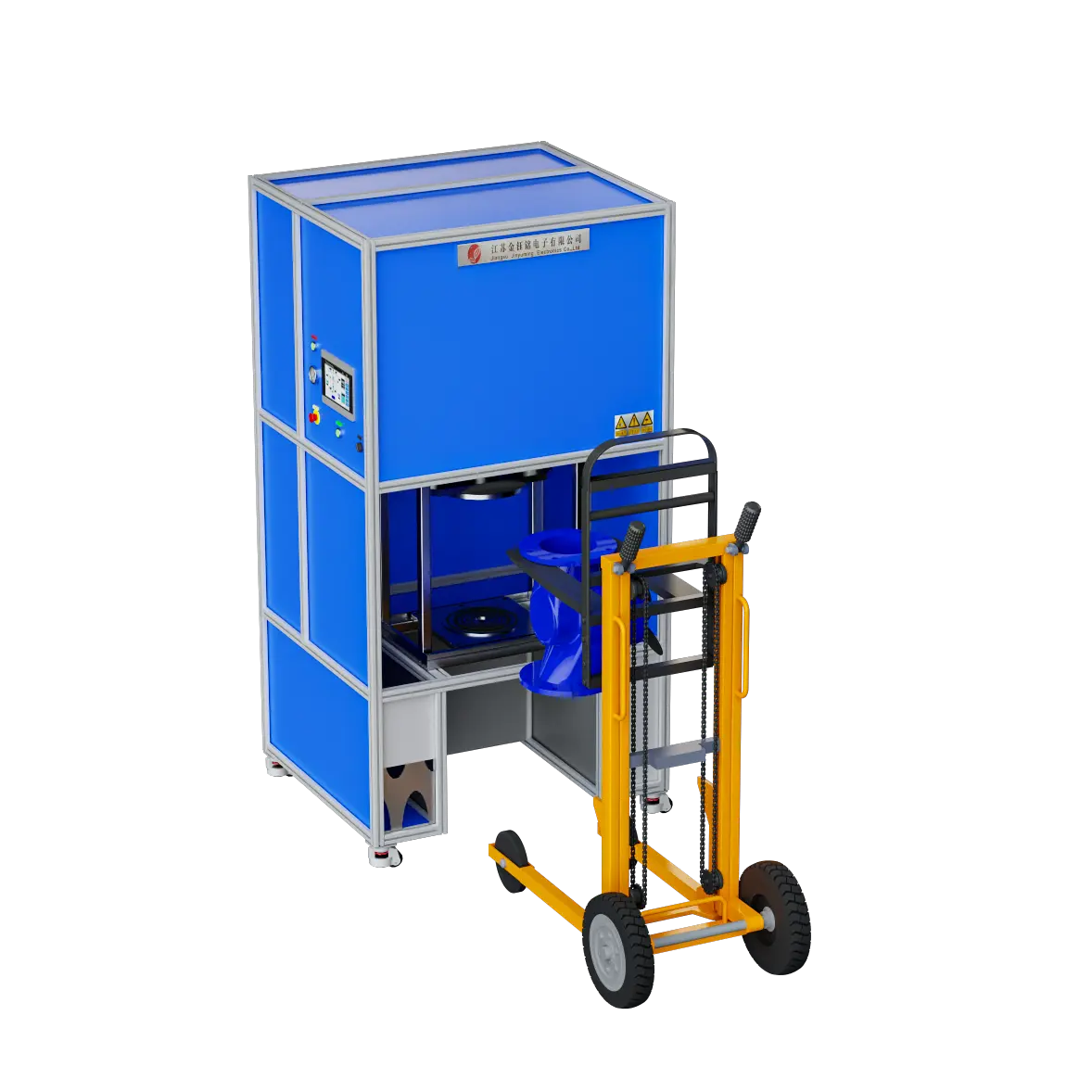

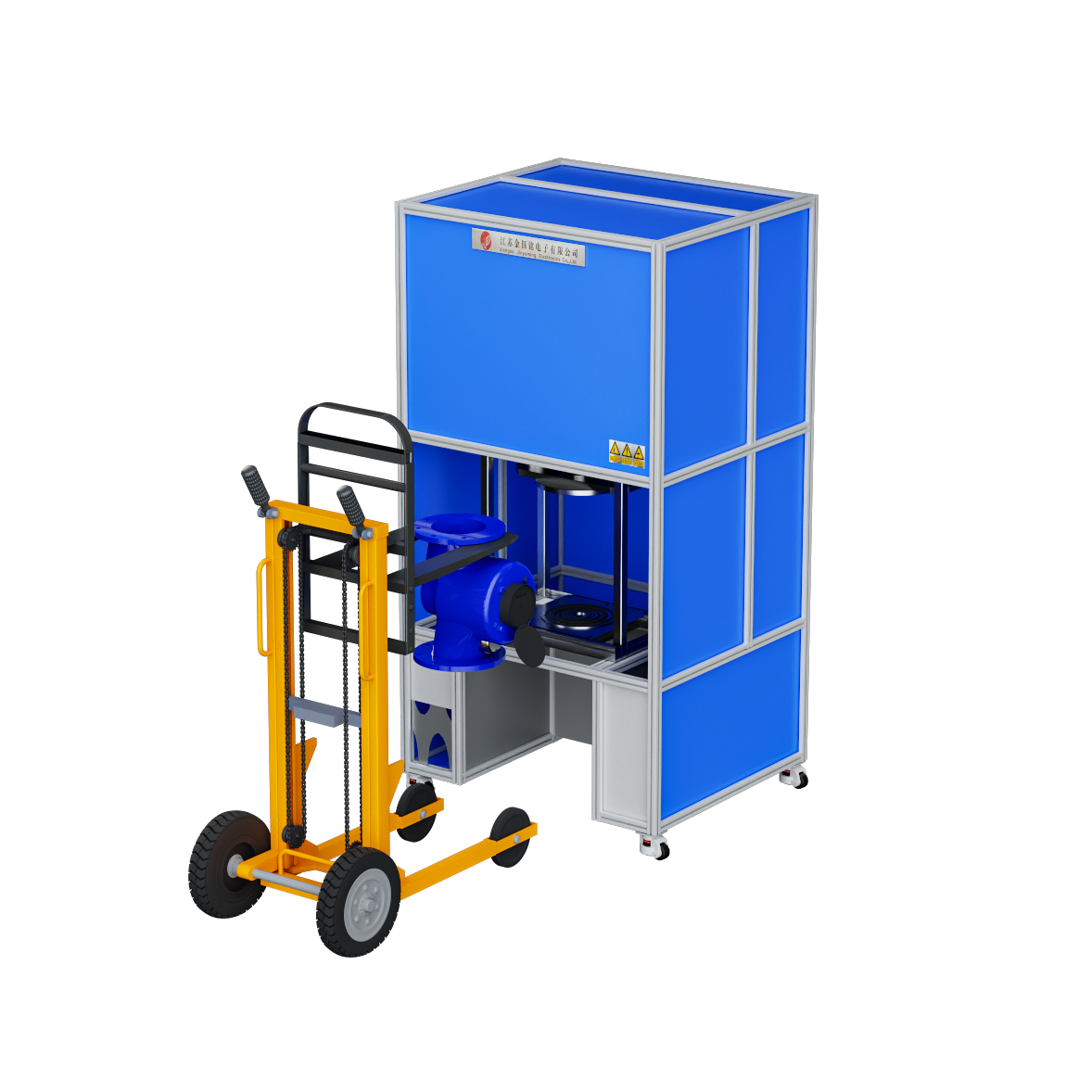

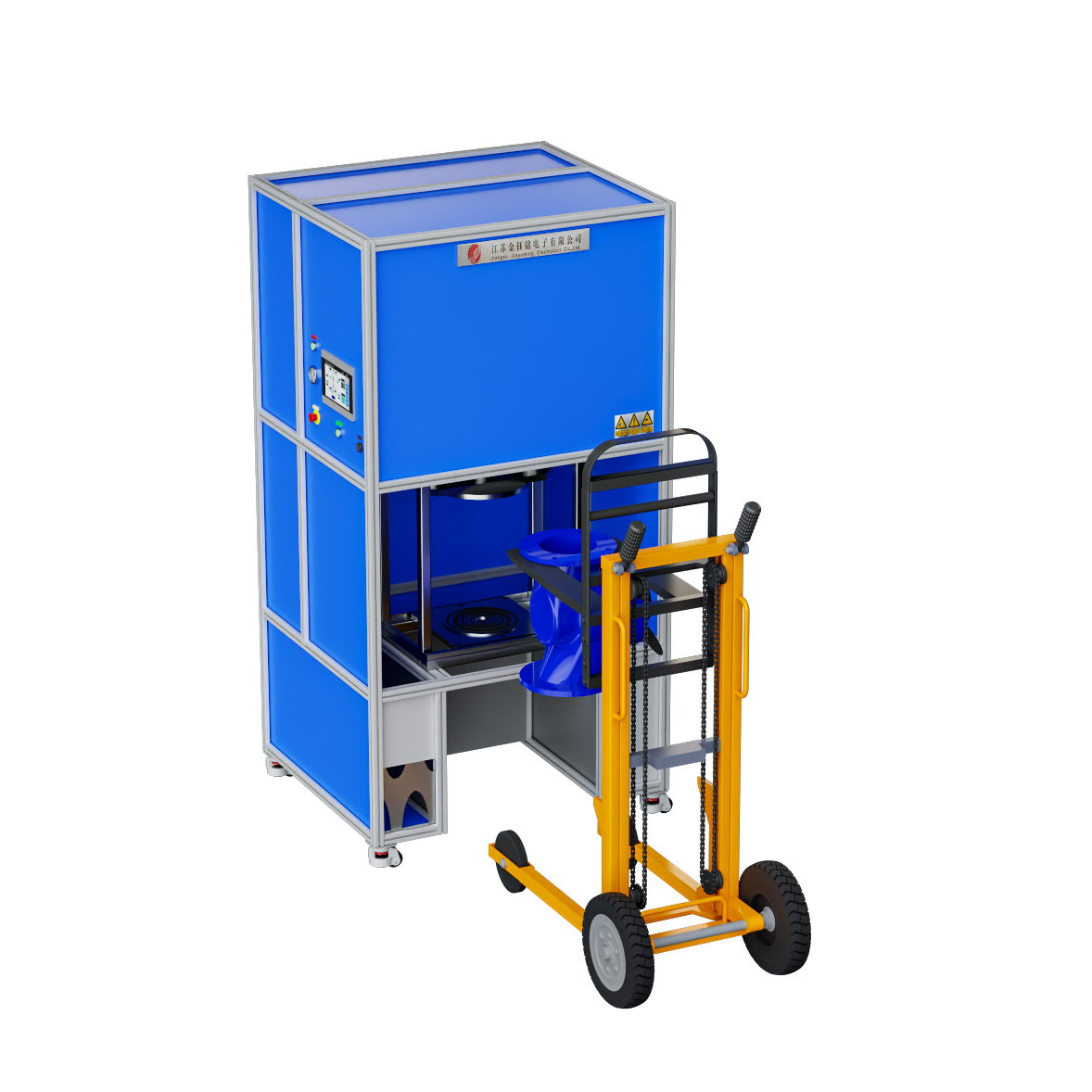

Fully Automatic Water Meter Pressure Testing Machine (DN50-DN200)

Fully Automatic Water Meter Pressure Testing Machine (DN50-DN200)

Fully Automatic Water Meter Pressure Testing Machine (DN50-DN200)

Send Inquiry

Product Description

Product Model: JYM-15-25-5-AZZAH-PS4.0

Performance Specifications:

Test Medium: Pure tap water;

Environmental Conditions:

Ambient temperature: 3℃-35℃

Relative humidity: 15%-85%

Ambient pressure: 86 KPa-106 KPa

Operating Voltage: AC220V

Water Meter Sealing Test: Pressure range (1.6~3.2) MPa;

Water Source Working Pressure: 0.2-1.0 MPa

Adjustable air source working pressure: 0.4-0.7 MPa;

Clipping Mechanism: Single meter independent pneumatic clamp;

Nominal Diameter: Φ100mm

Extension stroke ≥80mm;

Water Pump: Southern Water Pump CHM3-20, flow rate 10m³/h, head 62m

Water Tank: 200L
