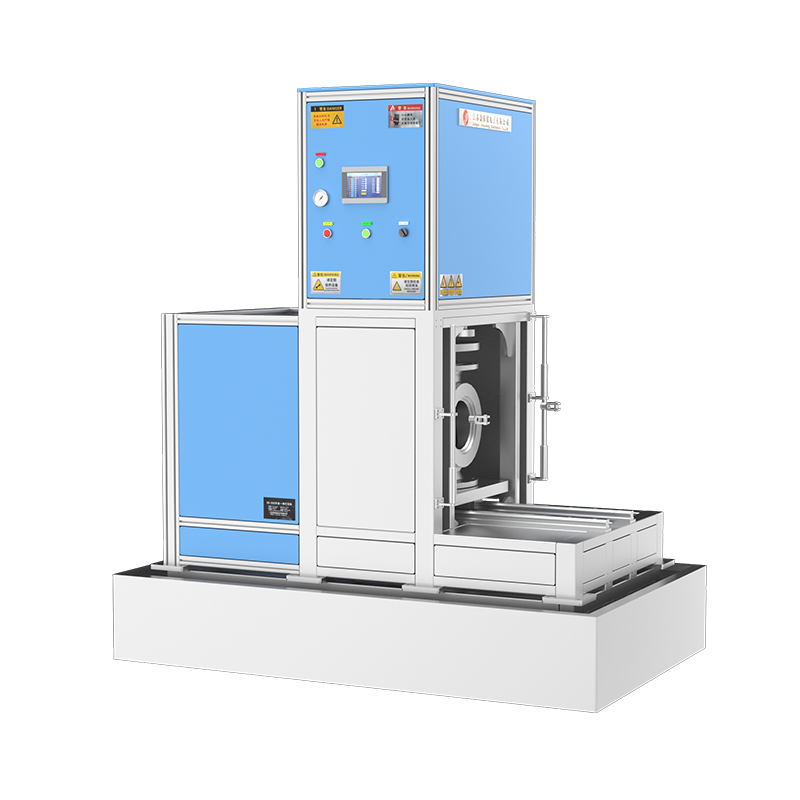

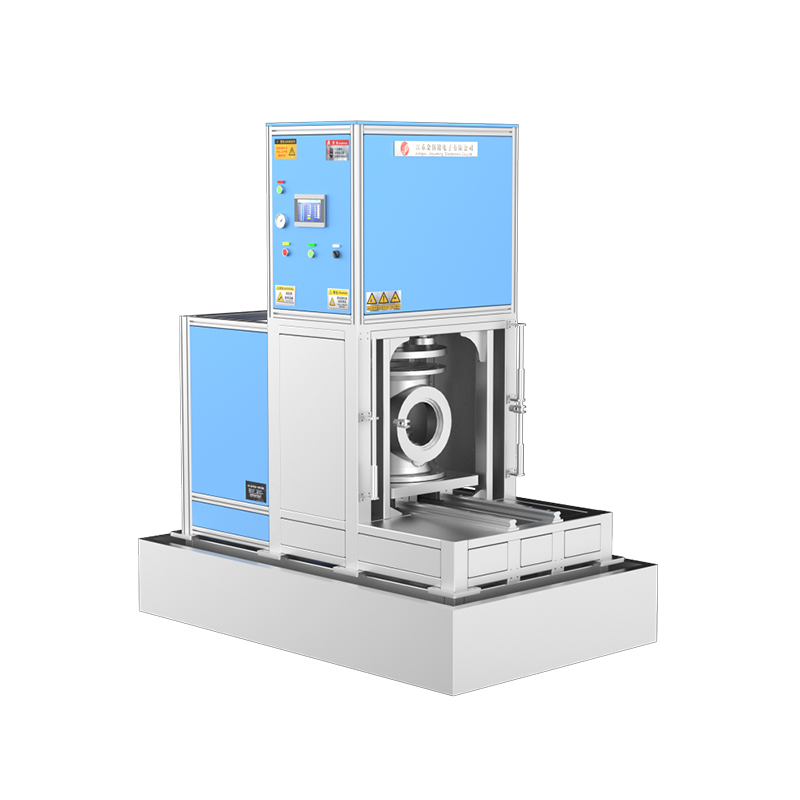

Fully Automatic Water Injection and Pressure Testing Machine (DN50-DN300)

Fully Automatic Water Injection and Pressure Testing Machine (DN50-DN300)

Fully Automatic Water Injection and Pressure Testing Machine (DN50-DN300)

Send Inquiry

Product Description

Product Model: JYM-15-25-5-AZZAH-PS4.0

Performance Specifications

Test Medium: Pure tap water;

Environmental Conditions: Atmospheric temperature: 3℃-35℃

Relative humidity: 15%-85%

Atmospheric pressure: 86 KPa-106 KPa

Operating Voltage: AC220V

Water Meter Sealing Test: Pressure range (1.6~3.2) MPa;

Vacuum System: Differential pressure vacuum generator, evacuating and filling water to maintain a full water meter.

Water Source Working Pressure: 0.2-1.0 MPa

Adjustable Air Source Working Pressure: 0.4-0.7 MPa;

Clipping Mechanism: Independent pneumatic clamp for each meter;

Nominal Diameter: Φ32mm; Extension stroke ≥80mm;

Water Pump: Southern Water Pump CDMF-3-7, flow rate 10m³/h, head 62m;

Water Tank: 200L
