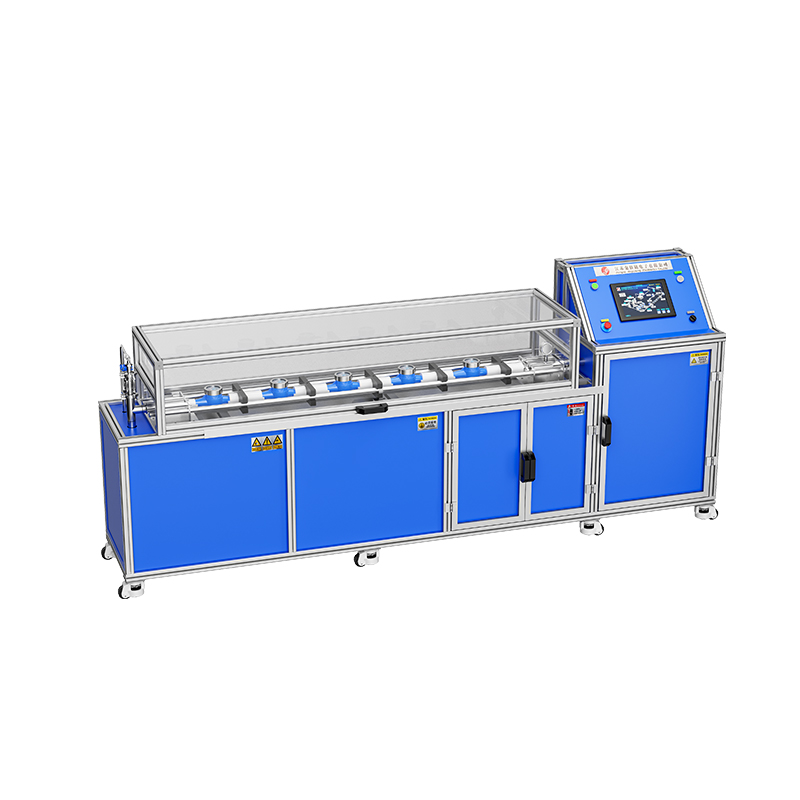

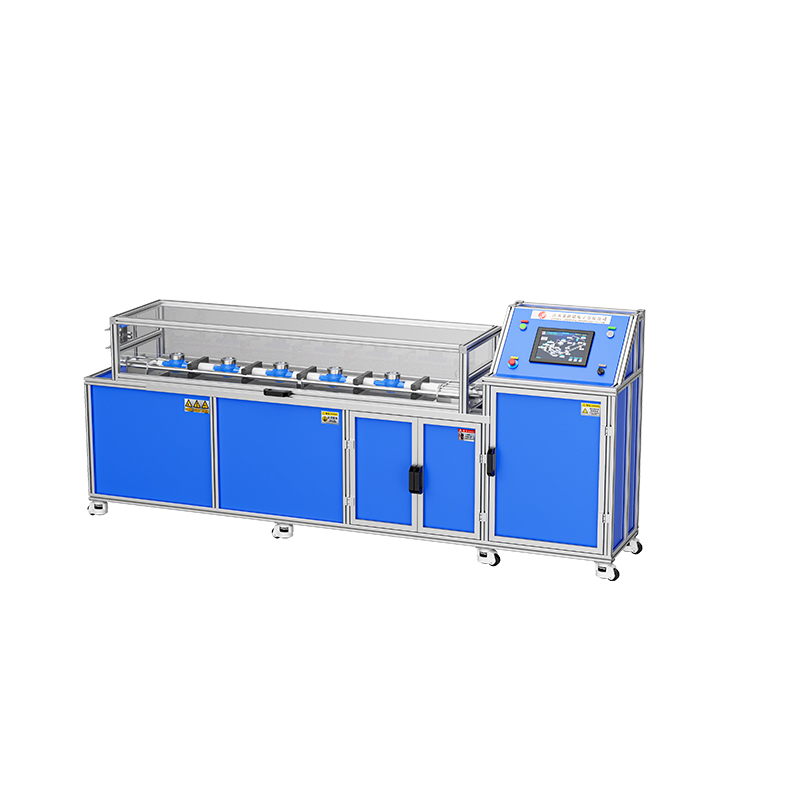

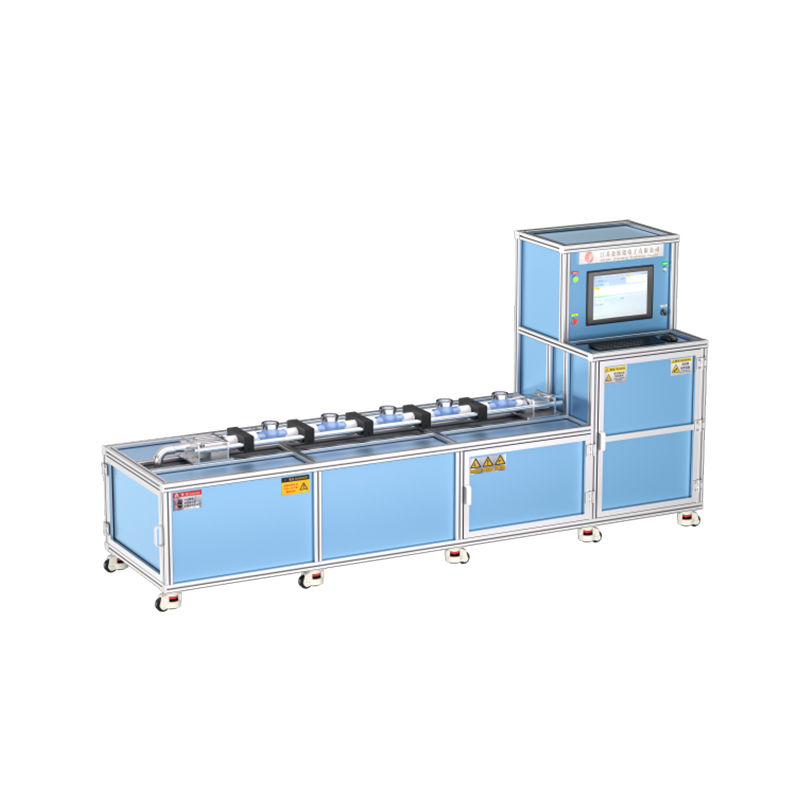

Fully Automatic Water Injection and Pressure Testing Machine (DN15-DN25)

Product Model: JYM-15-25-5-AZZAH-PS4.0

Performance Specifications

Test Medium: Pure tap water;

Environmental Conditions: Ambient temperature: 3℃-35℃;

Relative humidity: 15%-85%;

Atmospheric pressure: 86 KPa-106 KPa;

Meter Diameter: DN15, DN20, DN25;

Number of meters tightened at one time: 6 DN15, 6 DN20, 6 DN25;

Operating Voltage: AC220V;

Water meter sealing test: Pressure range (1.6~3.2) MPa;

Vacuum System: Differential pressure vacuum generator, evacuating and filling with water to maintain a full water meter state.

Water source working pressure: 0.2-1.0 MPa

Adjustable air source working pressure: 0.4-0.7 MPa

Grip mechanism: Independent pneumatic clamp for each gauge

Nominal diameter: Φ32mm; Extension stroke ≥80mm

Water pump: Southern Water Pump CDMF-3-7, flow rate 10 m³/h, head 62 meters

Water tank: 200L
