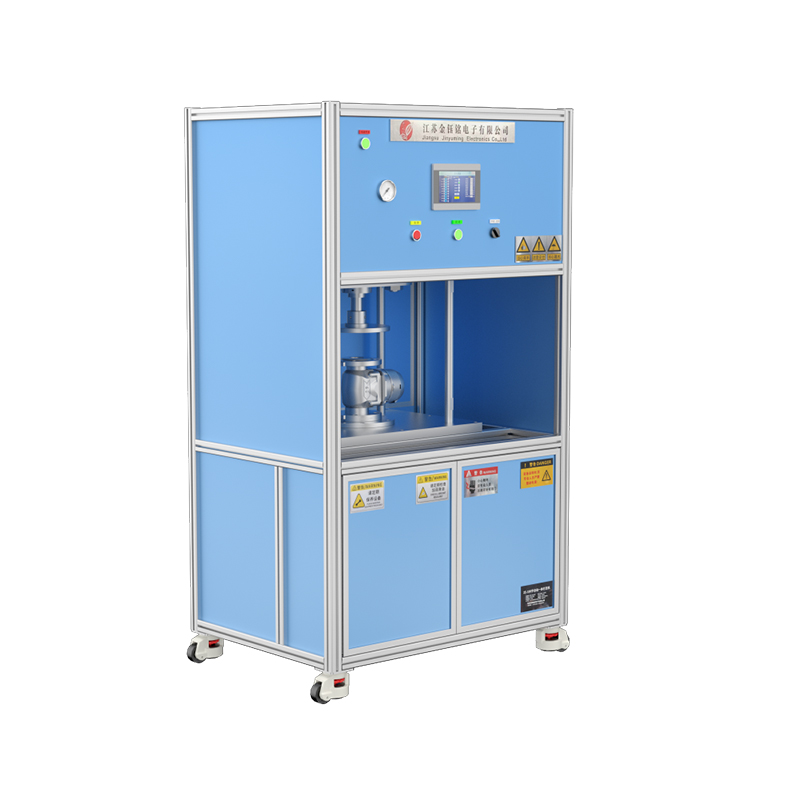

DN32-D100 Fully Automatic Water Meter Sealing Test Bench (Horizontal Type)

Product Introduction

1. Compact size, small footprint, corrosion resistant, and equipped with wheels for easy movement.

2. 2.7-inch touchscreen panel for setting pressure, pressure time, and other parameters.

3. Pneumatic quick-clamping gauge, faster and more efficient than traditional hydraulic clamping, requiring no external high-pressure water source.

4. One-button start, one-button selection, manual or automatic operation, safe to use.

5. Low power consumption, energy-saving, requires only one operator, saving labor and time. 6. Detailed Product Information: Request from sales personnel

Product Model: JYM-32-100-1-ADZH-PS2.0

Functional Parameter Table

Test Medium: Pure tap water;

Test Gauge Diameter: DN32, DN40, DN50, DN65, DN80, DN100 (1 piece each);

Working Voltage: AC220V

Water Meter Sealing Test: Pressure range (1.6~3.2) MPa;

Vacuum System: Differential pressure vacuum generator

Water Source Working Pressure: 0.2-1.0 MPa

Adjustable Air Source Working Pressure: 0.4-0.7 MPa;

Clipping Mechanism: Single meter independent pneumatic clamp;

Water Pump: Southern Water Pump CHM3-1, flow rate 2 m³/h, head 30 m

Water Tank: 200L
