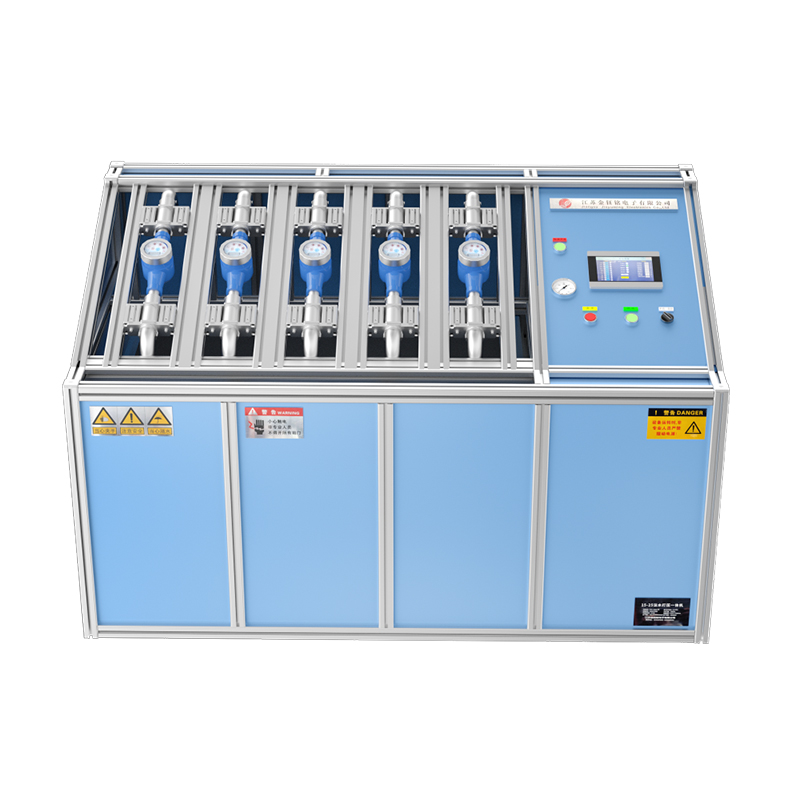

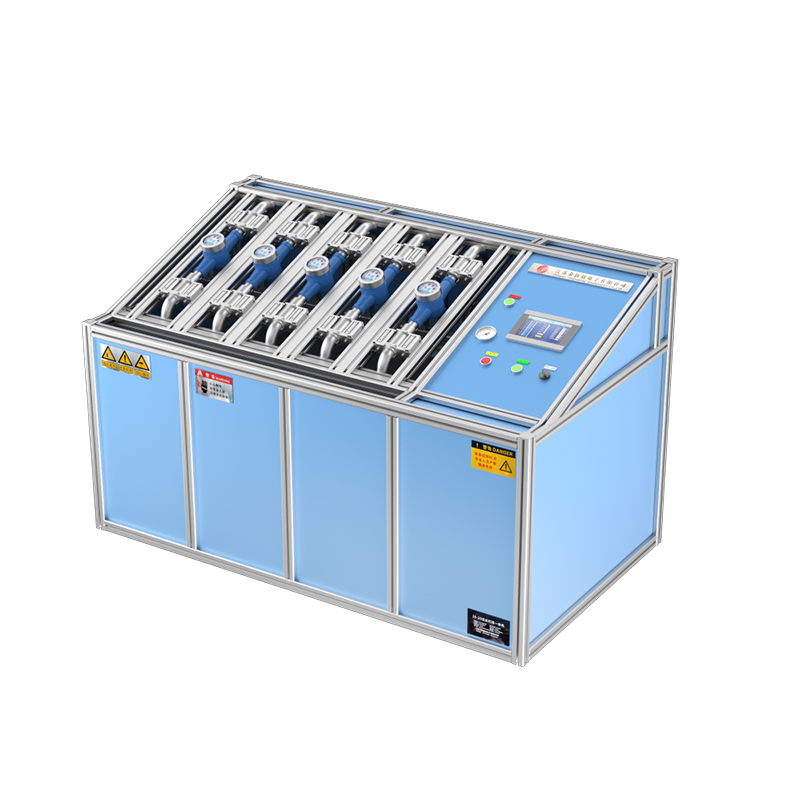

DN15-D25 Fully Automatic Water Meter Sealing Test Device (Horizontal Type)

Product Introduction

1. Compact size, small footprint, corrosion resistant, and equipped with wheels for easy movement.

2. 2.7-inch touchscreen panel for setting parameters such as pressurization pressure, vacuuming pressure, pressurization time, and vacuuming water injection time.

3. Pneumatic quick-clamping, faster and more efficient than traditional hydraulic clamping, requiring no external high-pressure water source.

4. One-button start, one-button selection (manual or automatic), safe operation.

5. Suitable for mass production, used in conjunction with fully automatic Water Meter Test Benchs and automatic meter Meter Screwing Machines to improve production cycle time and increase capacity.

6. Low power consumption, energy-saving, requires only one operator, saving labor and time. 7. Detailed Product Information: Request from sales personnel

Product Model: JYM-15-25-5-AZZAH-PS2.0

Functional Parameter Table

Test Medium: Pure tap water;

Test Meter Diameter: DN15, DN20, DN25;

Number of Meters Tested at One Time: 5 DN15, 5 DN20, 5 DN25;

Operating Voltage: AC220V

Water Meter Sealing Test: Pressure range (1.6~3.2) MPa;

Vacuum System: Differential pressure vacuum generator, vacuuming and water filling to maintain a full water meter;

Water Source Working Pressure: 0.2-1.0 MPa

Adjustable Air Source Working Pressure: 0.4-0.7 MPa;

Clipping Mechanism: Independent pneumatic clamp for each meter;

Water Pump: Southern Water Pump CHM3-90, flow rate 10 m³/h, head 62 m

Water Tank: 200 L
