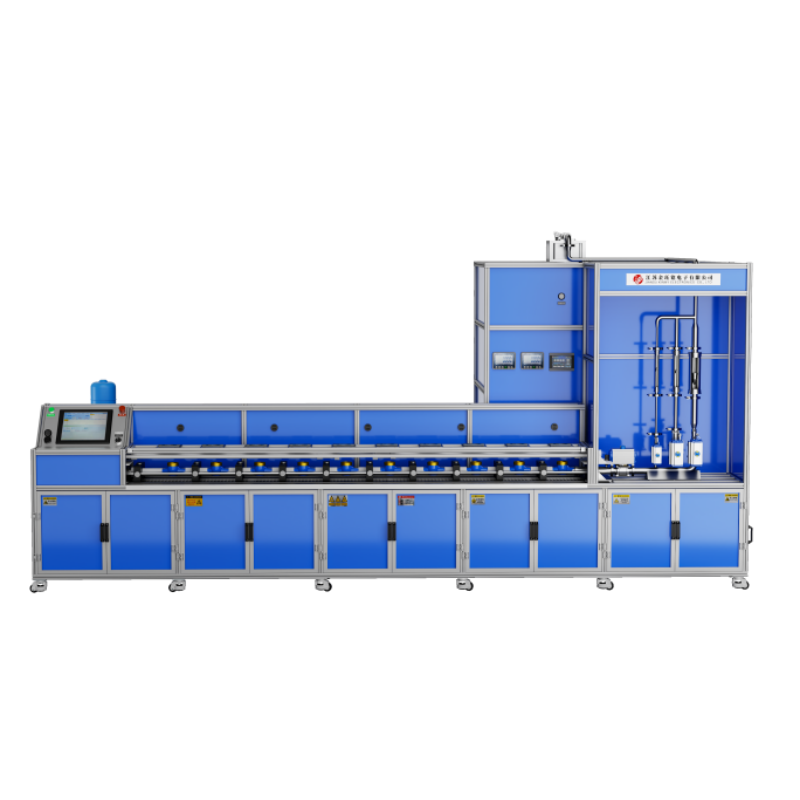

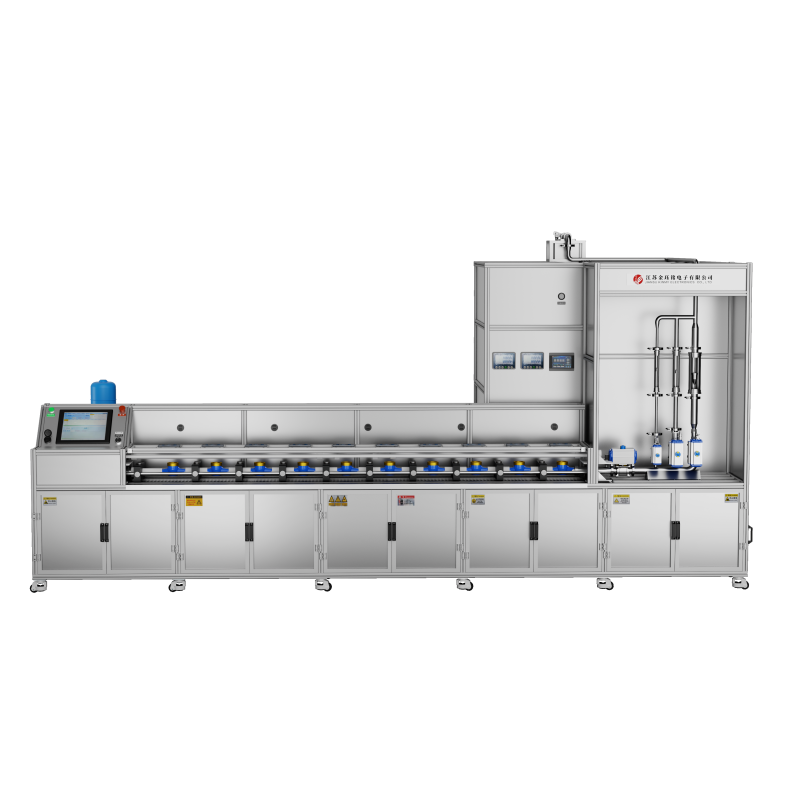

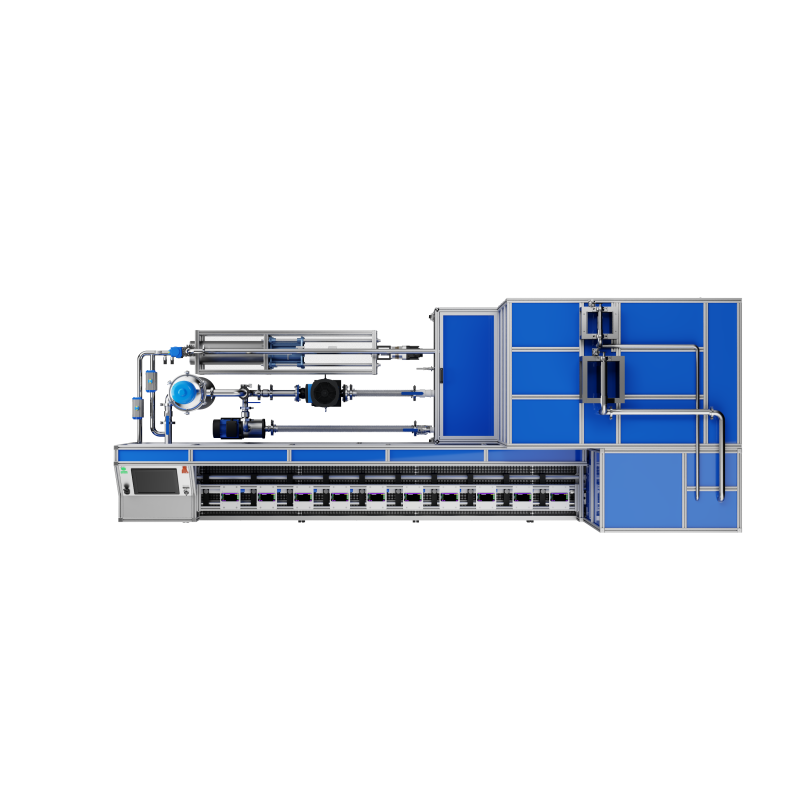

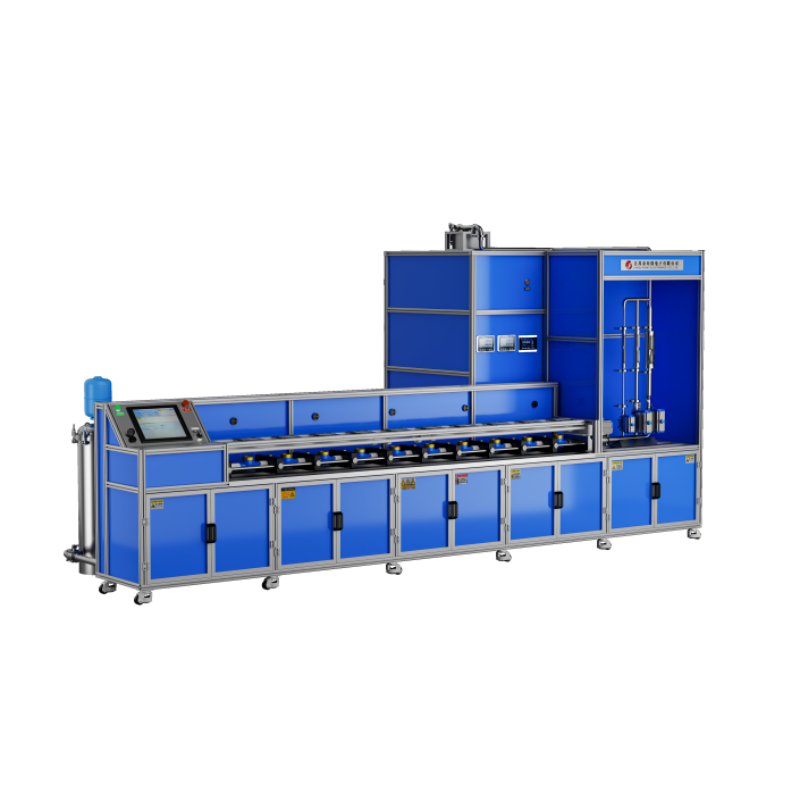

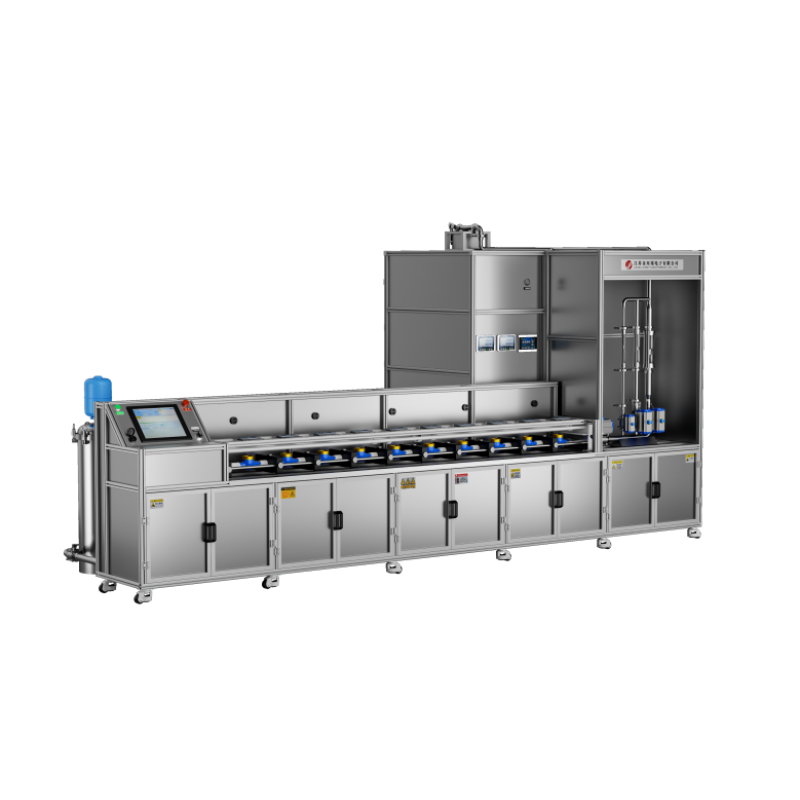

DN15-D25 Fully Automatic Piston Type Water Meter Test Bench (Horizontal Type)

Product Introduction

1. High Production Efficiency: 500 water meters can be tested in eight hours.

2. Fast Input Method: Wireless barcode scanner input of meter numbers—fast, accurate, and convenient.

3. Energy Saving and Consumption Reduction: Saves water, electricity, and labor.

4. Compact Size: Saves space, fully automated, shares a network, and reduces auxiliary materials.

5. Novel Structure: European standard aluminum profile frame, 304 stainless steel piping, novel and stylish appearance. Detailed Product Information: Request from sales personnel

Product Models: JYM-15-25-10-AWSPH-HS4.0, JYM-15-25-07-AWPHP-HS4.0

Functional Parameter Table

Test Medium: Pure tap water

Test Method: Dual-time method, start-stop method

Test Meter Type: Ordinary mechanical water meter, ultrasonic water meter, smart water meter

Test Meter Diameter/Quantity: DN15 10 units, DN20 8 units, DN25 6 units

Commutator: Cross-type pneumatic open commutator

Water Meter Durability Testing and Water Injection System: (0-3.2Mpa) Differential pressure vacuum generator

Water Meter Acquisition System: Mobile phone, camera, laser, infrared, RS232, pulse

Meter Clamping Mechanism: Single meter independent pneumatic clamp

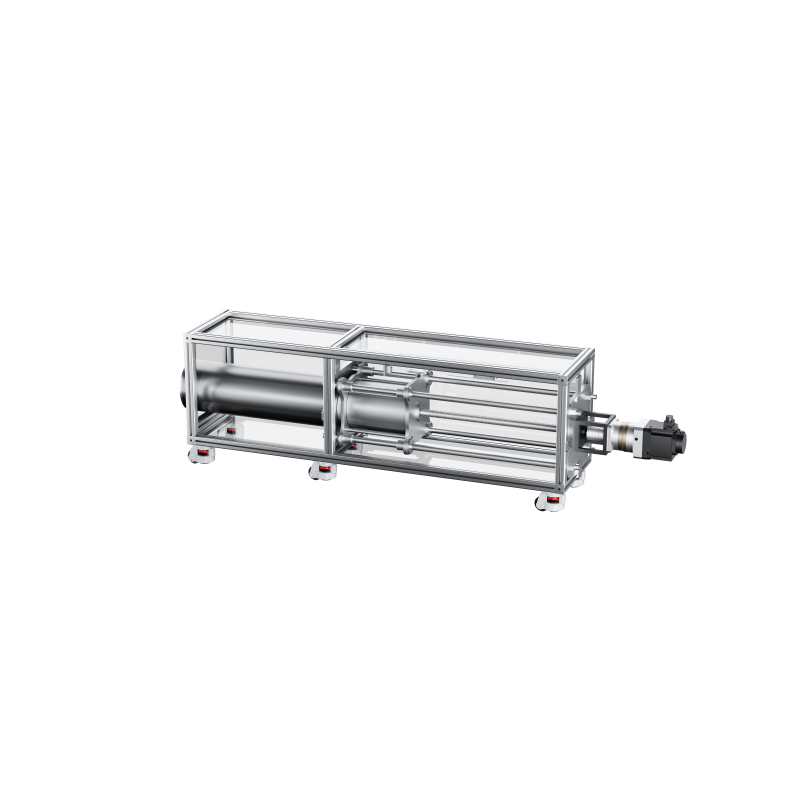

Standard Instruments: Electronic scale, standard meter, piston cylinder

Standard Meter (Instantaneous Flow Display Device): DN25 0.55-17.5 m³/h

Performance Parameter Table

Device Uncertainty: U≤0.2% (K=2)

Flow Stability: Start-up/Stop Method 1.0%, Others: 0.2%

Flow Range: (0.003~8) m³/h

Water Pump: Flow Rate 10 m³/h, Head 62 m

Electronic Scale Resolution: ①Max=15kg, 6000e ②Max=150kg, 30000d

Water Source Working Pressure: 0.3-0.7 MPa

Adjustable Air Source Pressure: 0.4-0.7 MPa
