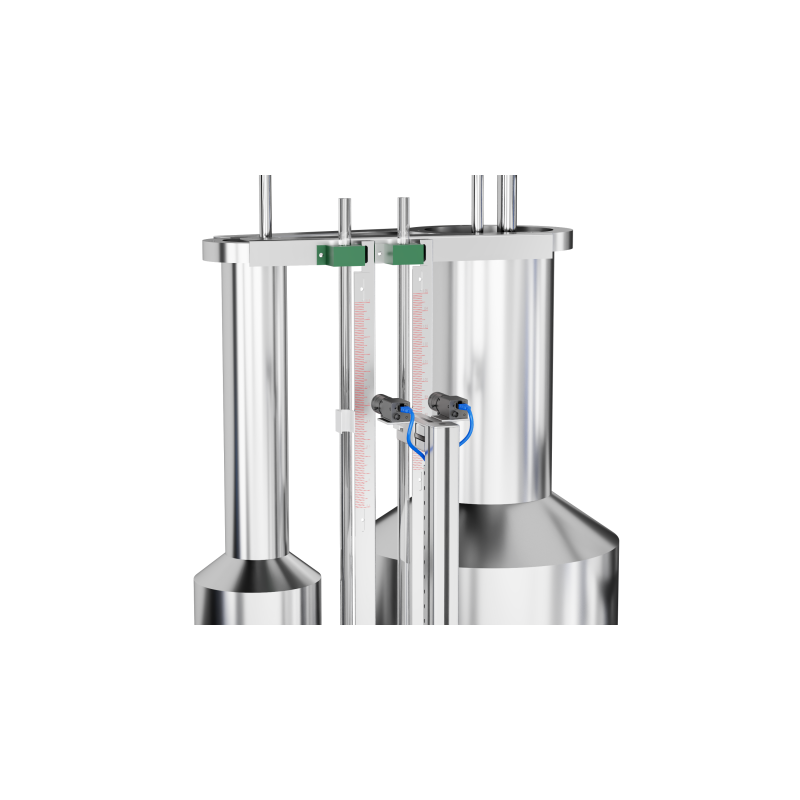

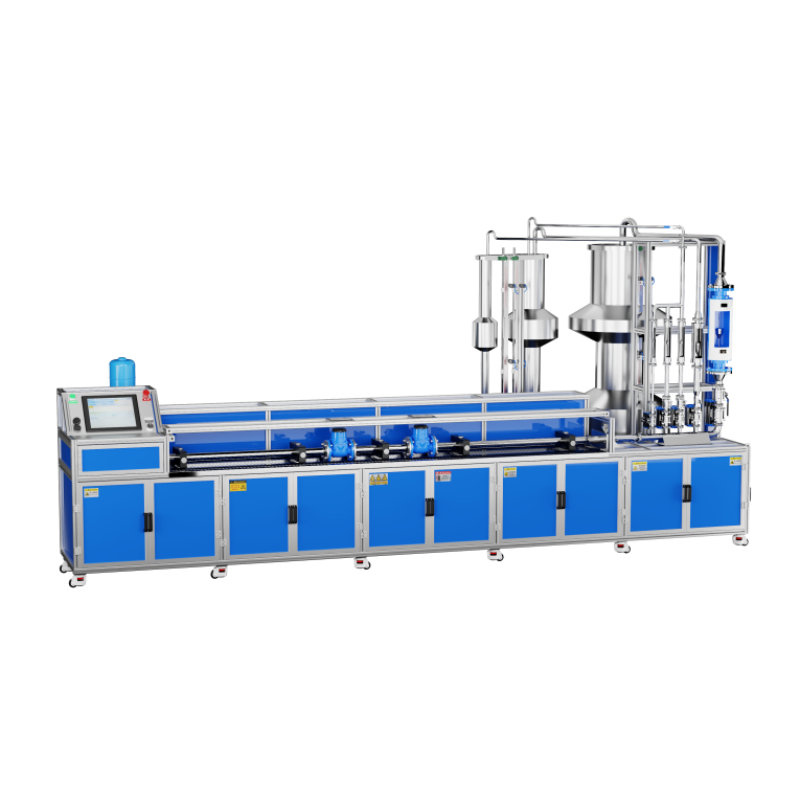

DN15-D25 Fully Automatic Water Meter Test Bench (Volume Method)

Product Introduction

1. High Production Efficiency: 500 water meters can be tested in eight hours;

2. Fast Input Method: Wireless barcode scanner input of meter numbers, fast, accurate, and convenient;

3. Energy Saving and Consumption Reduction: Saves water, electricity, and labor;

4. Compact Size: Saves space, fully automated, shared network, and saves auxiliary materials;

5. Novel Structure: European standard aluminum profile frame, 304 stainless steel piping, novel and stylish appearance.

Detailed product information: Please request from sales personnel.

Product Models: JYM-15-25-10-AWH-HS4.0, JYM-15-25-10-AWSH-HS4.0, JYM-15-25-07-AWHP-HS4.0

Performance Specifications: One-button start, automatic venting, automatic pressure test, automatic indication error verification;

Device Uncertainty: Urel≤0.2% (k=2);

Flow Stability: Start-stop method 1.0%, others: 0.2%;

Verification Medium: Pure tap water;

Flow Range: (0.006~8) m³/h;

Water Source Working Pressure: 0.0-0.5 MPa adjustable;

Air Source Working Pressure: 0.4-0.7 MPa;

Device Operating Temperature: 4~80℃;

Test Gauge Diameter: DN15-DN25;

Meter Types Under Test: Ordinary mechanical water meters, various smart water meters (IC card meters, NB valve-controlled water meters, MBUS water meters, etc.), electronic water meters (ultrasonic water meters, electromagnetic water meters, etc.);

Number of Meters Tested at One Time (Single Row): DN15 (165mm long): 8 units, DN20 (195mm long): 7 units, DN25 (225mm long): 6 units;

Test Method: Start-stop method;

Water Meter Sealing Test: Pressure range (1.6~2.0) MPa;

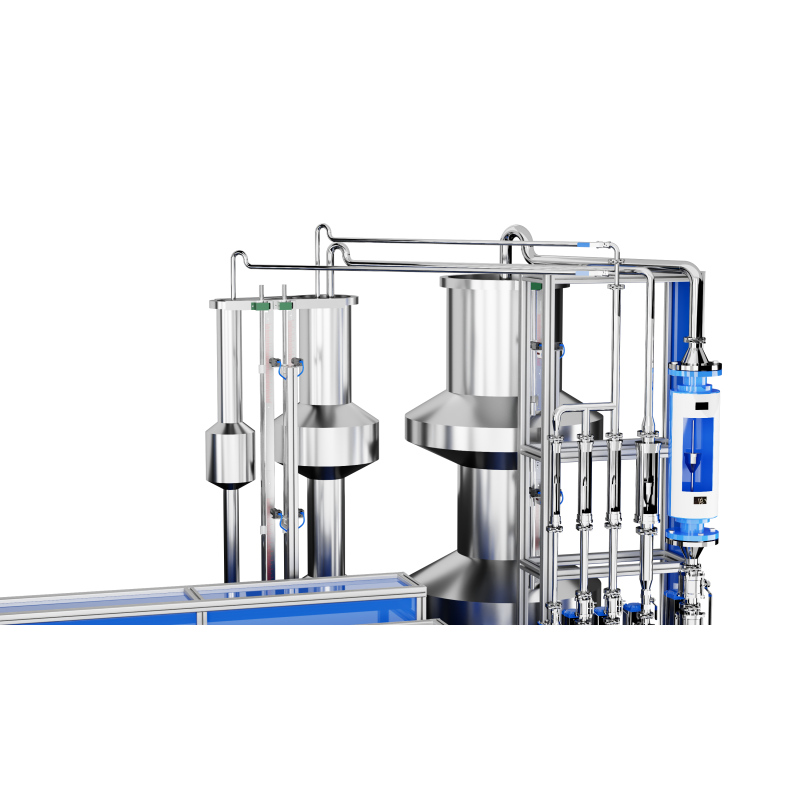

Standard Instrument (Measuring Instrument): 10L/20L, 50L/100L;

Level Controller: Level Switch;

Level Reading System: Hikvision Camera;

Instantaneous Flow Display Device: Rotor Flow Meter

LZ/W30-15 9-160L/H,

LZ/W30-25 20-500L/H,

LZ/W30-50 0.5-8 m³/h,

Clamping Mechanism: Double-cylinder outward-pushing tandem clamping device; 10 cylinders in the front and 5 cylinders in the rear use single pneumatic clamping devices;

Nominal Diameter: Φ50mm; Extension Stroke ≥80mm;

Vacuum System: Differential pressure vacuum generator, vacuuming and water injection to maintain a full water meter.

Single Measurement Water Temperature Fluctuation: ≤±2℃

Single Circulation Water Fluctuation Coefficient: ≤±0.1%

Tested Water Meter Acquisition Device: Android phone with 108MP pixel, Honor

Southern Water Pump CHM10-5, Flow Rate 10 m³/h, Head 50 m;

Supported Testing Methods: Fully Automatic, Semi-Automatic, Touchscreen Manual

Water Meter Electronics Required Testing (Standard Import Format Provided); This function is optional.
