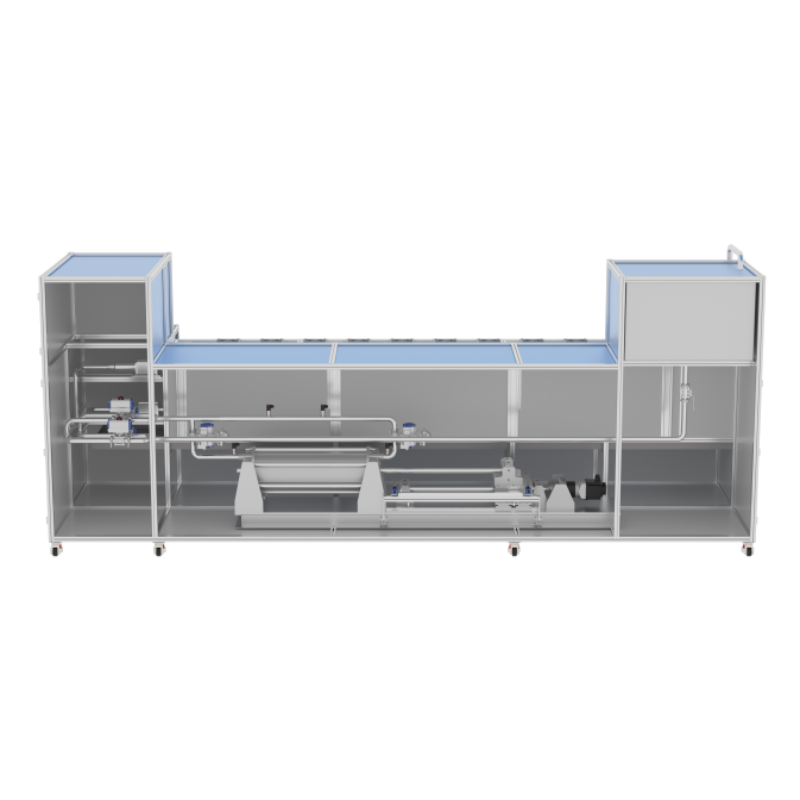

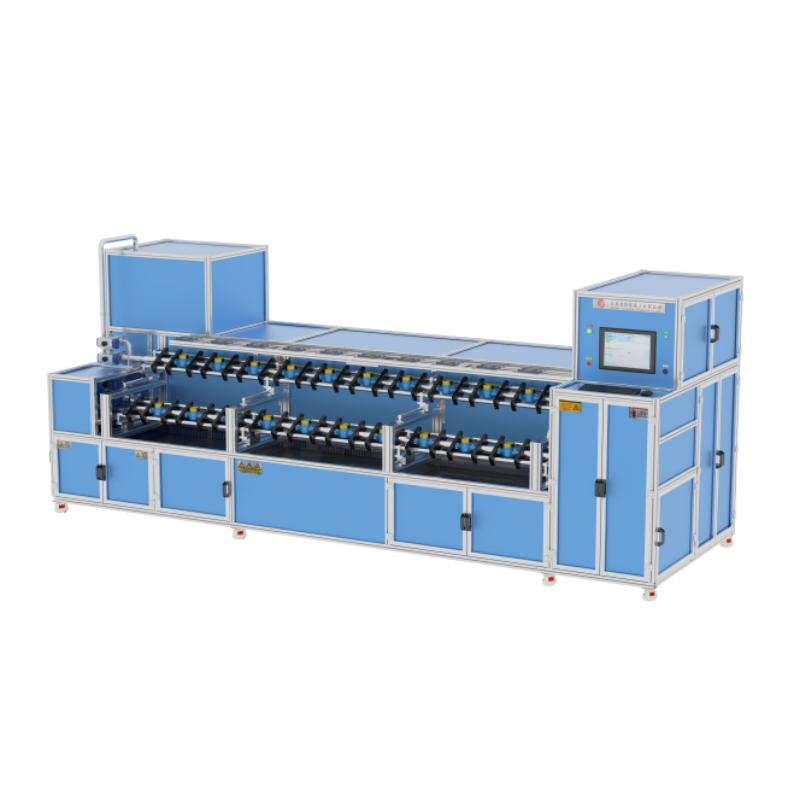

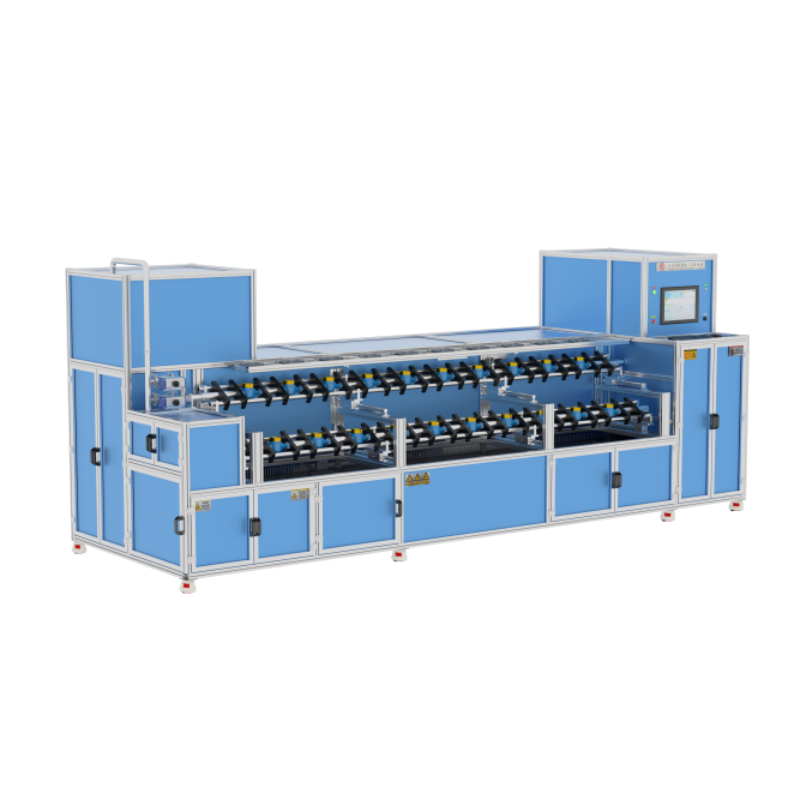

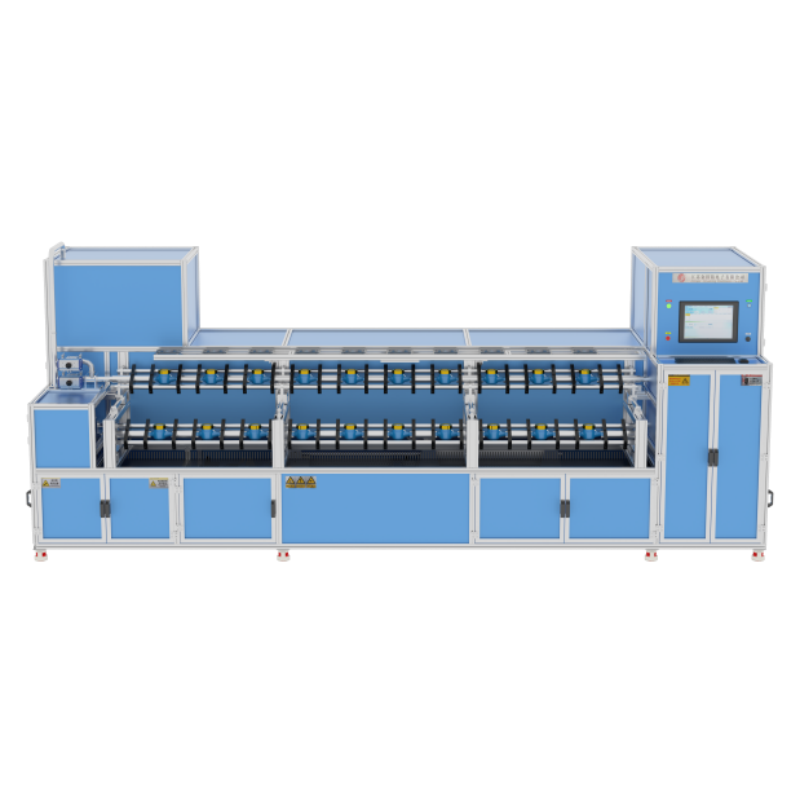

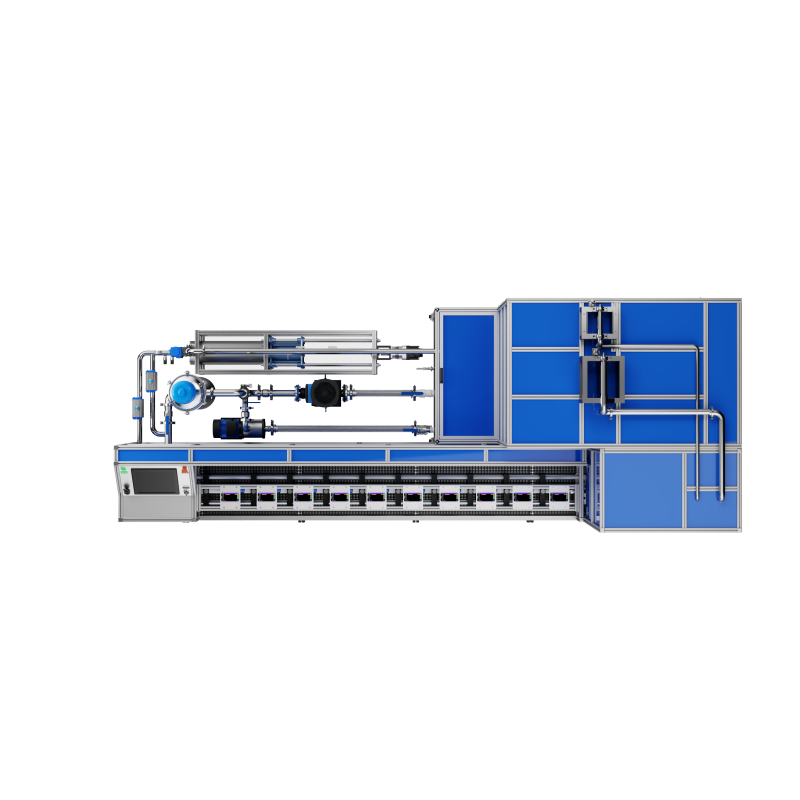

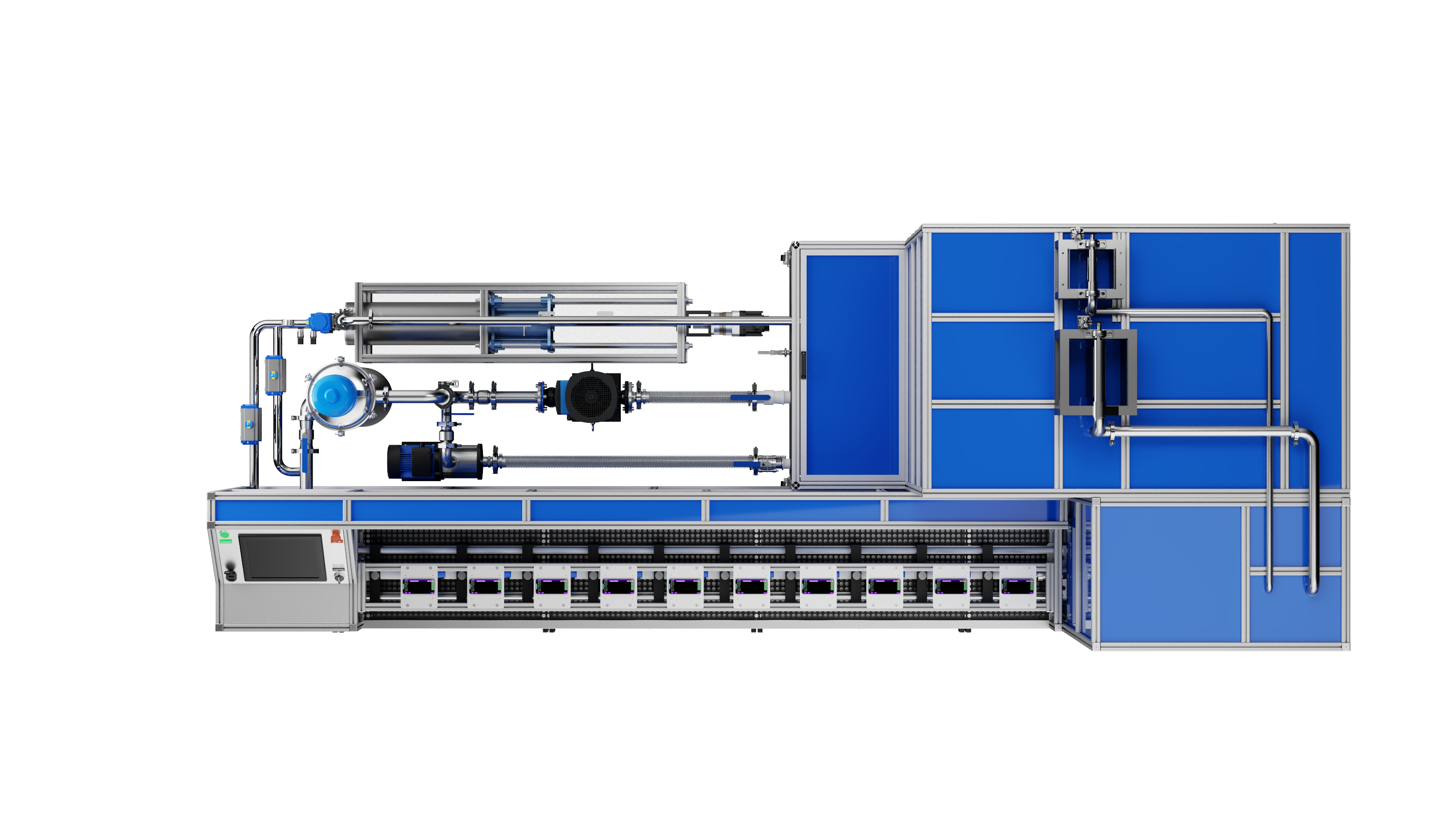

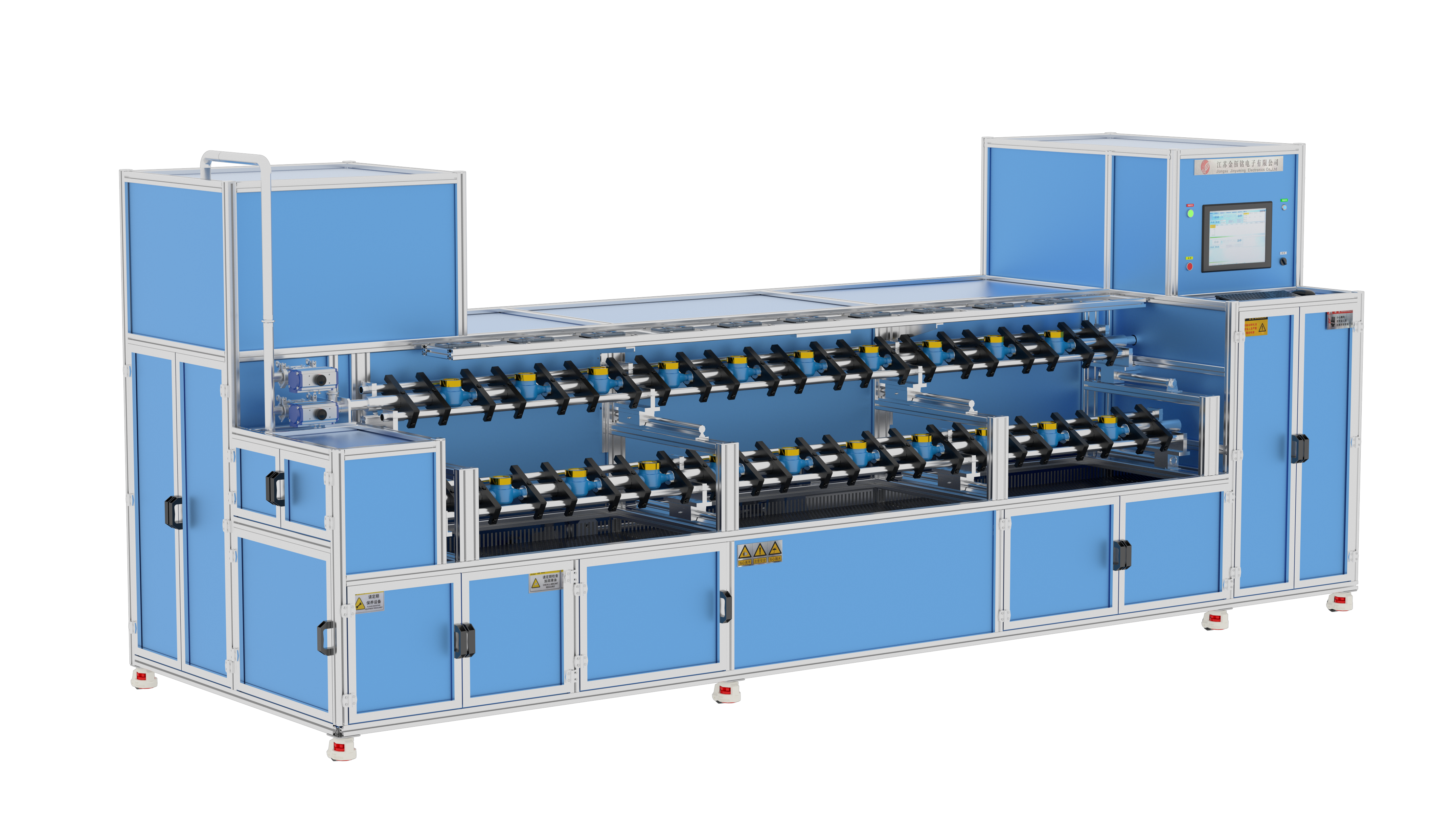

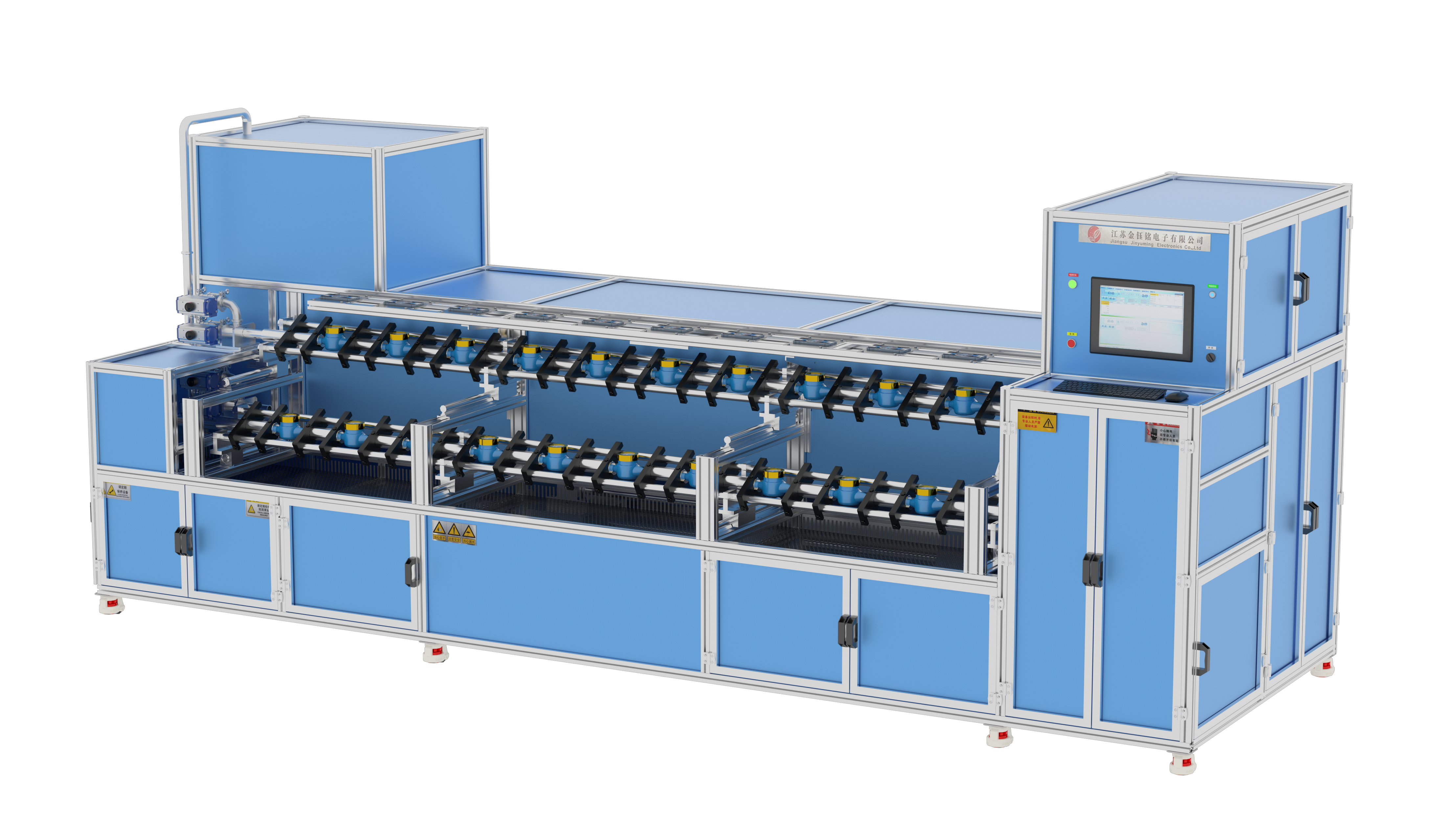

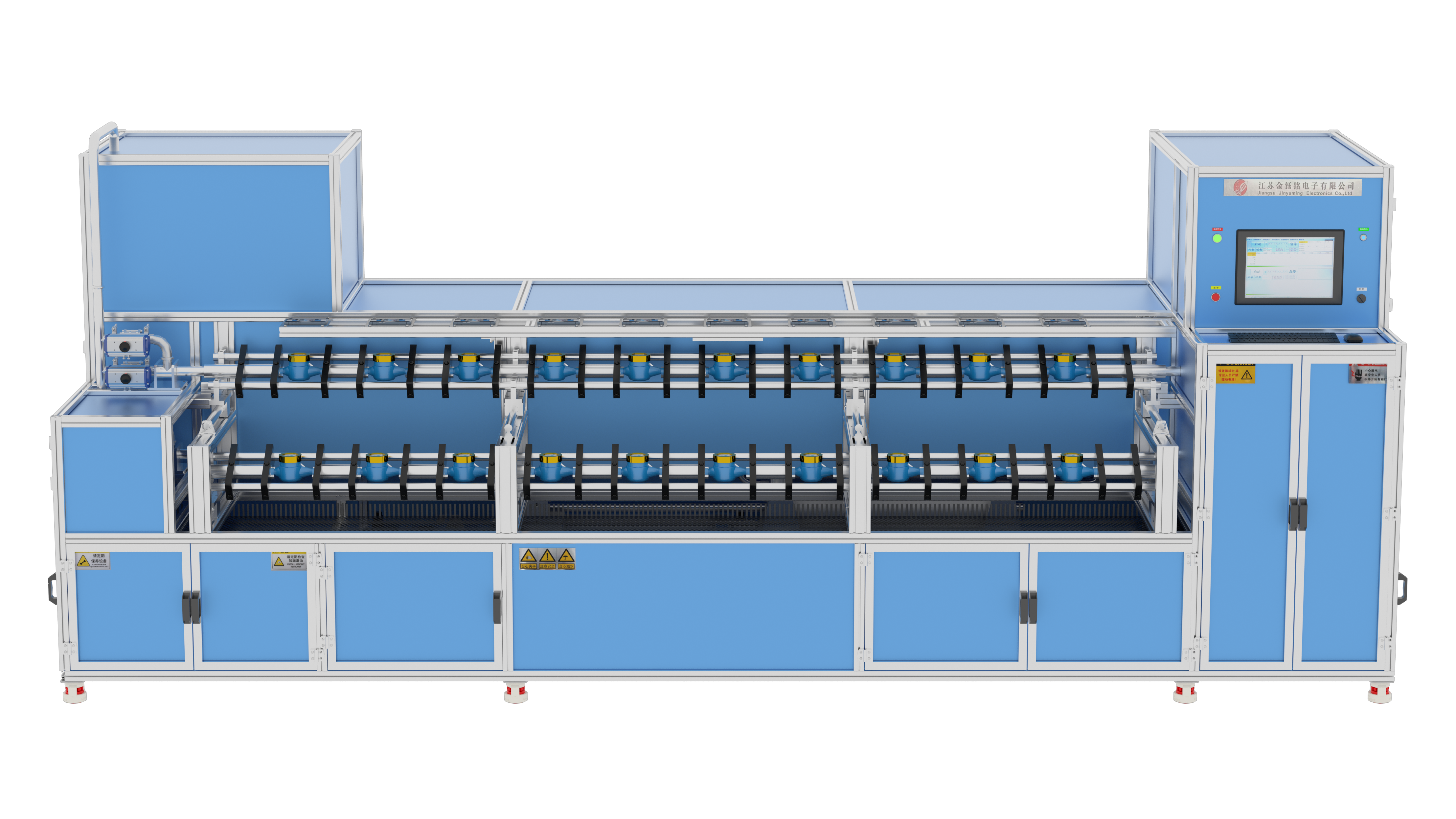

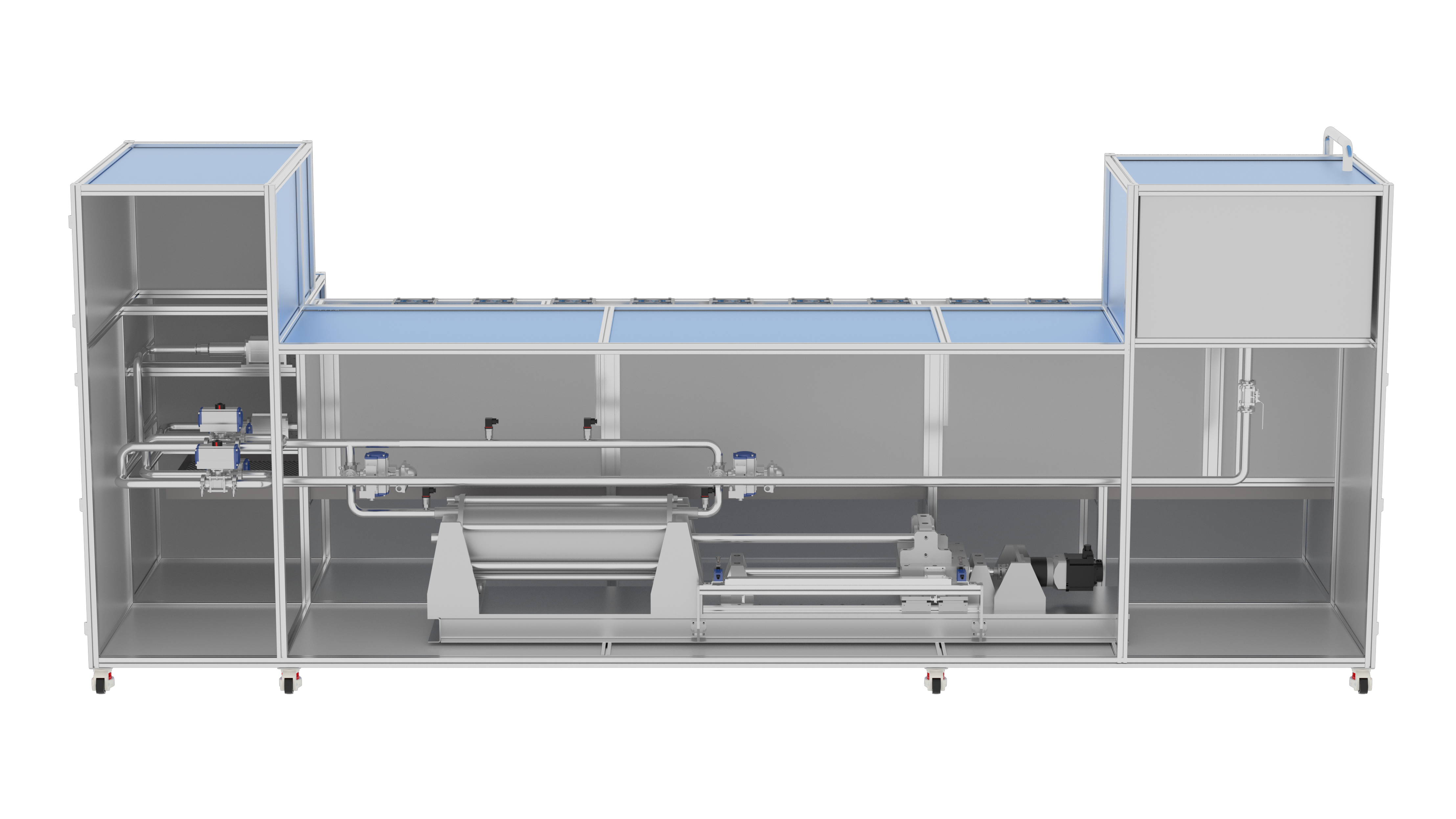

DN15-D25 Fully Automatic Double-Row Piston Type Water Meter Test Bench

Compact Size: Saves space, fully automated, shares a network, and reduces auxiliary materials.

Send Inquiry

Product Description

Product Introduction

1. High Production Efficiency: 500 water meters can be tested in eight hours.

2. Fast Input Method: Wireless barcode scanner input of meter numbers—fast, accurate, and convenient.

3. Energy Saving and Consumption Reduction: Saves water, electricity, and labor.

4. Compact Size: Saves space, fully automated, shares a network, and reduces auxiliary materials.

5. Novel Structure: European standard aluminum profile frame, 304 stainless steel piping, novel and stylish appearance.

Detailed Product Information: Request from sales personnel



Product Models: JYM-15-25-10-AWSPH-HS4.0, JYM-15-25-07-AWPHP-HS4.0



  Water Meter Test Bench, Urel ≤ 0.2% (k=2)
Flow Stability 1.0% for Start-Stop Method; 0.2% for Other Methods
Calibration Medium Pure Tap Water
Operating Humidity Humidity: ≤ 93% RH
Operating Water Temperature 20℃ ± 10℃
Water Temperature Fluctuation in Single Measurement Water Temperature Fluctuation in Single Measurement
Water Fluctuation Coefficient in Single Cycle ≤ ±0.1%
Water Source Operating Pressure 0.0-0.5 MPa (Adjustable)
Air Source Operating Pressure 0.4-0.7 MPa
Device Operating Temperature 4˜50℃
Number of Meters Under Test DN15: 20 units | DN20: 16 units | DN25: 12 units | Vertical Water Meters (DN15, DN20, DN25): 12 units
Water Pump Nanfang CHM10-50, Flow Rate: 8 m³/h, Head: 48 m, 1 unit
Water Tank 800 L
Reverser DN25 Cross-Type Pneumatic Open Reverser, Low Noise & High Sensitivity, Stroke Difference < 10 ms, Uncertainty ≤ 0.002%
Meter Clamping Mechanism Dual-Cylinder External-Push Tandem Meter Clamping Device; Single Pneumatic Clamping Device for 10 Front & 5 Rear Positions
Water Meter Tightness Test Pressure Range: (0˜2.0) MPa
Nominal Diameter Φ50 mm, Telescopic Stroke ≥ 80 mm
Timer (10-100) kHz (Adjustable); Accuracy Better Than 10⁻⁶
Calibration Signal Pulse, f = (0˜10) kHz
Vacuum System Differential-Pressure Vacuum Generator, Vacuum Priming, Maintains Water Meters in Full-Water State
Supported Test Modes Fully Automatic, Semi-Automatic, Touchscreen Manual
Data Acquisition Devices 16 Mobile Phones (Camera Resolution ≥ 40 Million Pixels)
Standard Device Piston Method
Flow Range （0.003-8）m³/h
Calibration Methods Start-Stop Method Flow-Time Method
Rotameter
Instantaneous Flow Display
Basic (Grade)		 LZ/W30-15 1-10L/H
LZ/W30-15 4-90L/H
LZ/W30-25 20-500L/H
Electromagnetic Flowmeter
Instantaneous Flow Display
Advanced (0.5 Grade)		 DN25：500-8000L/H
This plan is for reference only; customized solutions can be provided according to customer requirements.
