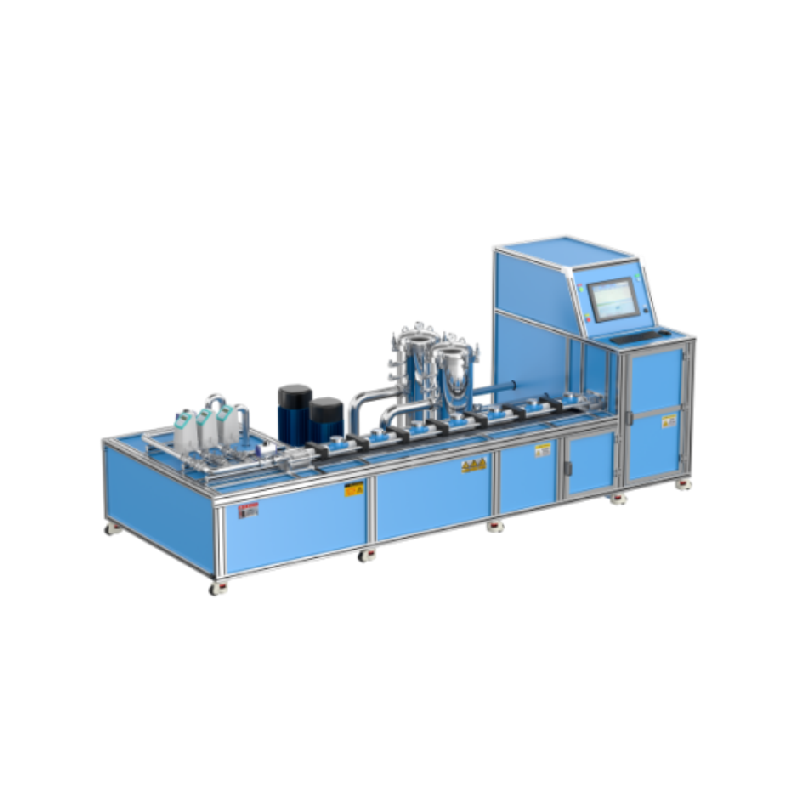

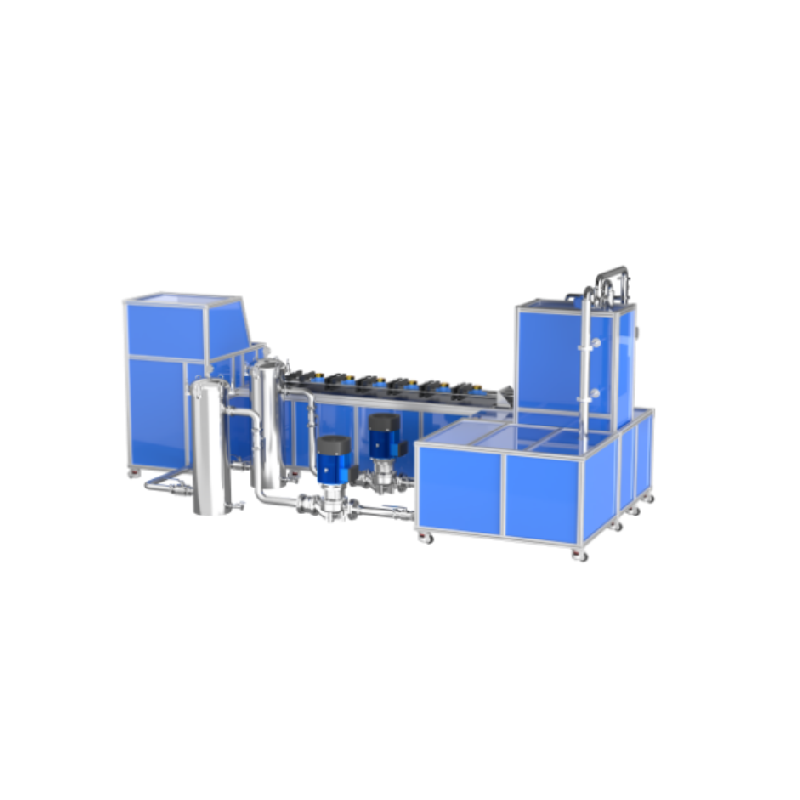

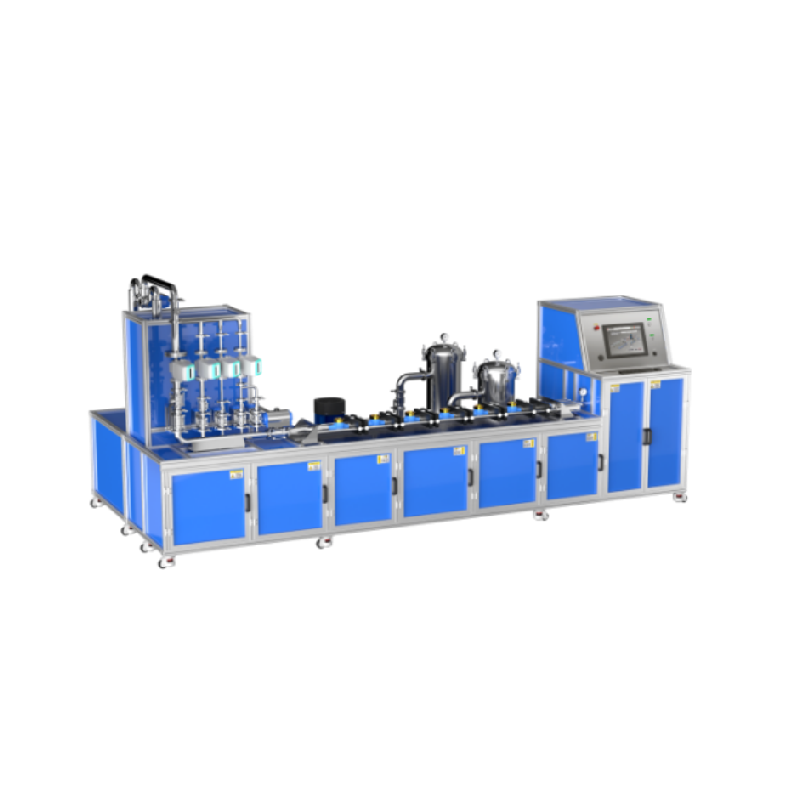

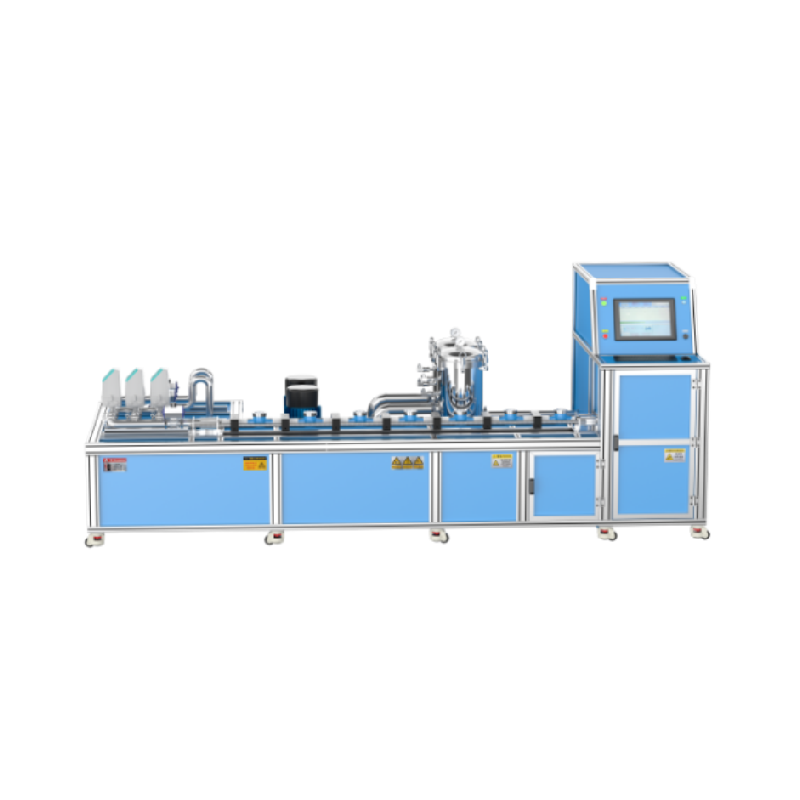

DN15-D50 Fully Automatic Water Meter (Heat Meter) Durability Testing Apparatus (Horizontal Type)

Product Introduction

1. Compact size, small footprint, corrosion resistant, and equipped with wheels for easy movement.

2. 2.7-inch touchscreen panel for setting parameters such as pressurization pressure, vacuum pressure, pressurization time, and vacuum water injection time.

3. Pneumatic quick-clamping, faster and more efficient than traditional hydraulic clamping, requiring no external high-pressure water source.

4. One-button start, one-button selection (manual or automatic), safe operation.

5. Suitable for mass production, used in conjunction with fully automatic Water Meter Test Benchs and automatic meter Meter Screwing Machines to improve production cycle time and increase capacity.

6. Low power consumption, energy-saving, requires only one operator, saving labor and time. 7. Detailed Product Information: Request from sales personnel

Product Model: JYM-15-50-5-AZZAH-PS2.0

Functional Parameter Table

Test Medium: Pure tap water;

Quantity of Gauges: DN15 10 units, DN20 8 units, DN25 6 units, DN32 2 units, DN40 2 units, DN50 1 unit;

Operating Voltage: AC220V

Flow Range: (0.006~40) m³/h;

Water Source Working Pressure: 0.2-1.0 MPa

Adjustable; Air Source Working Pressure: 0.4-0.7 MPa;

Grip Mechanism: Independent pneumatic gripper for each gauge;

Water Pump: Southern Water Pump CHM3-10, flow rate 50 m³/h, head 30 meters

Water Tank: 200L

Meets the requirements of 4000 accelerated durability tests for DN15-DN50 gauges.

Meets the basic durability test requirements of DN15-DN50 for 2400 hours.

Meets the additional durability test requirements of DN15-DN50 for 500 hours.
