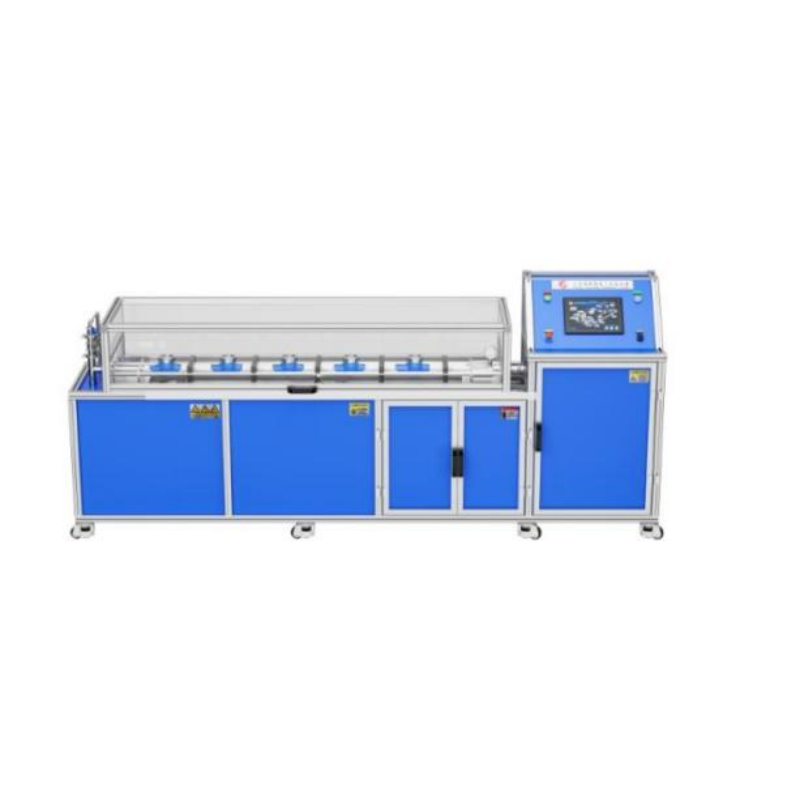

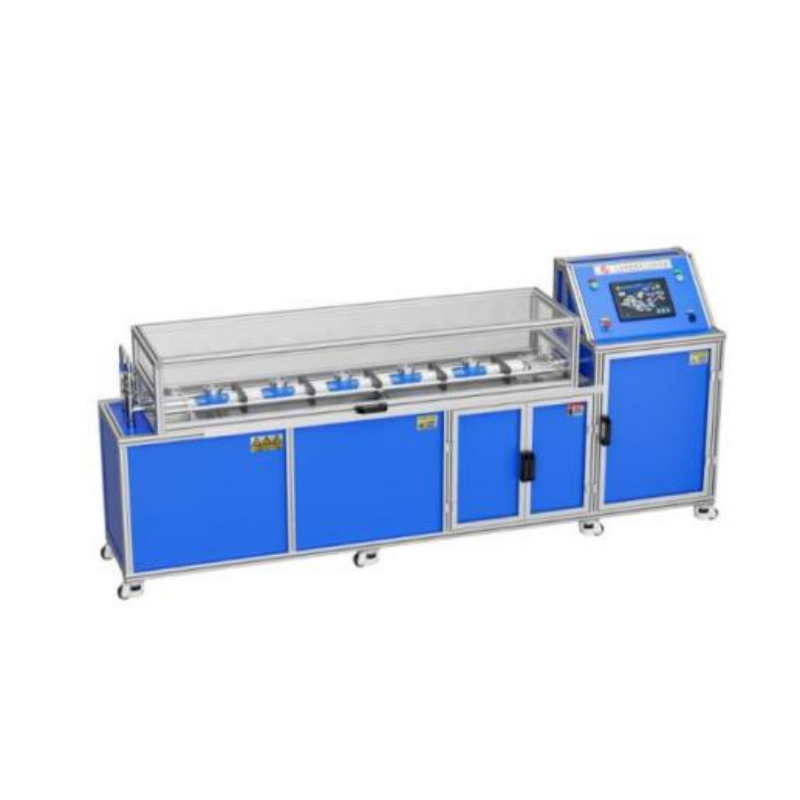

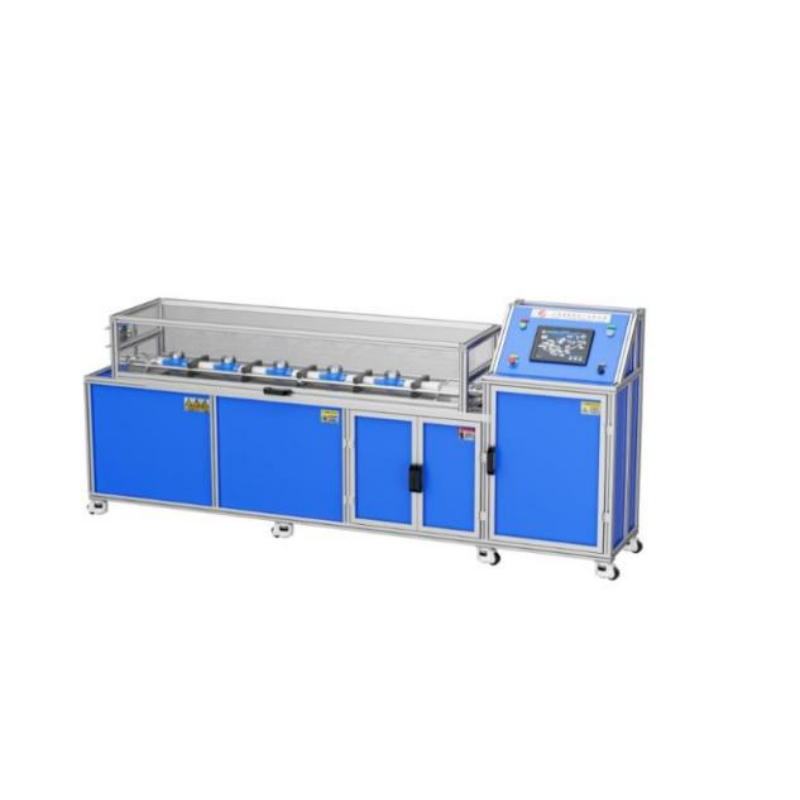

DN15-D25 Fully Automatic Water Meter Durability Testing Device (Horizontal Type)

Product Introduction

1. Compact size, small footprint, corrosion resistant, and equipped with wheels for easy movement.

2. 7-inch touchscreen panel for setting parameters such as pressurization pressure, vacuum pressure, pressurization time, and vacuum water injection time.

3. Pneumatic quick-clamping, faster and more efficient than traditional hydraulic clamping methods, requiring no external high-pressure water source.

4. One-button start, one-button selection (manual or automatic), safe operation.

5. Suitable for mass production, used in conjunction with fully automatic Water Meter Test Benchs and automatic meter Meter Screwing Machines to improve production cycle time and increase capacity.

6. Low power consumption, energy-saving, requires only one operator, saving labor and time. Detailed product information: Please request from sales personnel.

Product Model: JYM-15-25-5-AZZAH-PS2.0

Functional Parameter Table:

Test Medium: Pure tap water;

Quantity of Gauges: 5 DN15, 5 DN20, 5 DN25

Flow Range: (0.006~10) m³/h

Water Source Working Pressure: 0.2-1.0 MPa

Adjustable Air Source Working Pressure: 0.4-0.7 MPa

Grip Mechanism: Independent pneumatic gripper for each gauge

Water Pump: Southern Water Pump CHM3-10, flow rate 10 m³/h, head 50 meters

Water Tank: 200L

Meets the requirements of 4000-cycle accelerated durability test for DN15-DN25.

Meets the requirements of 2400-hour basic durability test for DN15-DN25.

Meets the requirements of 500-hour additional durability test for DN15-DN25.
