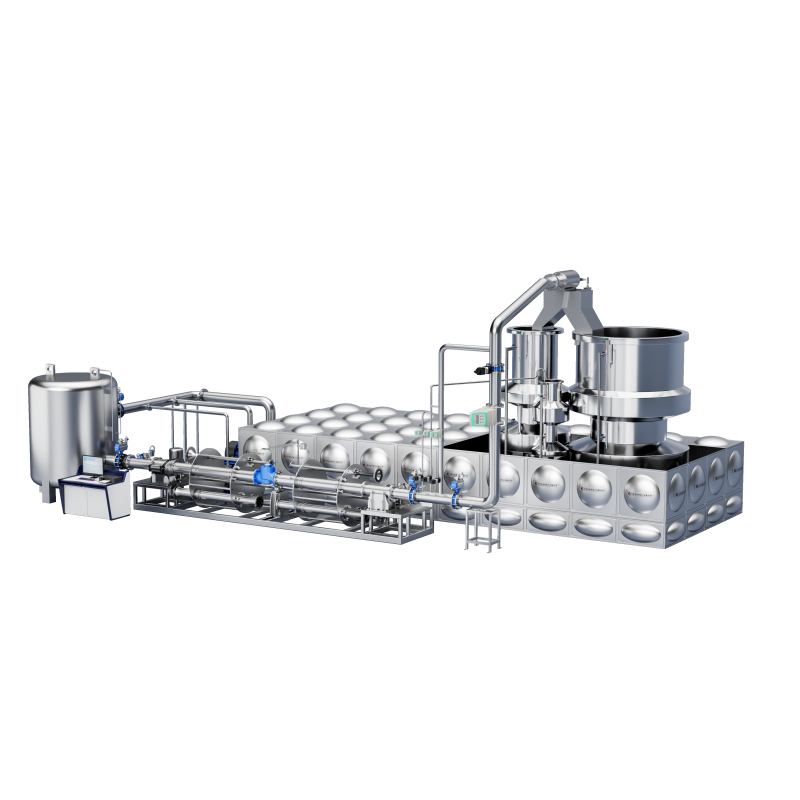

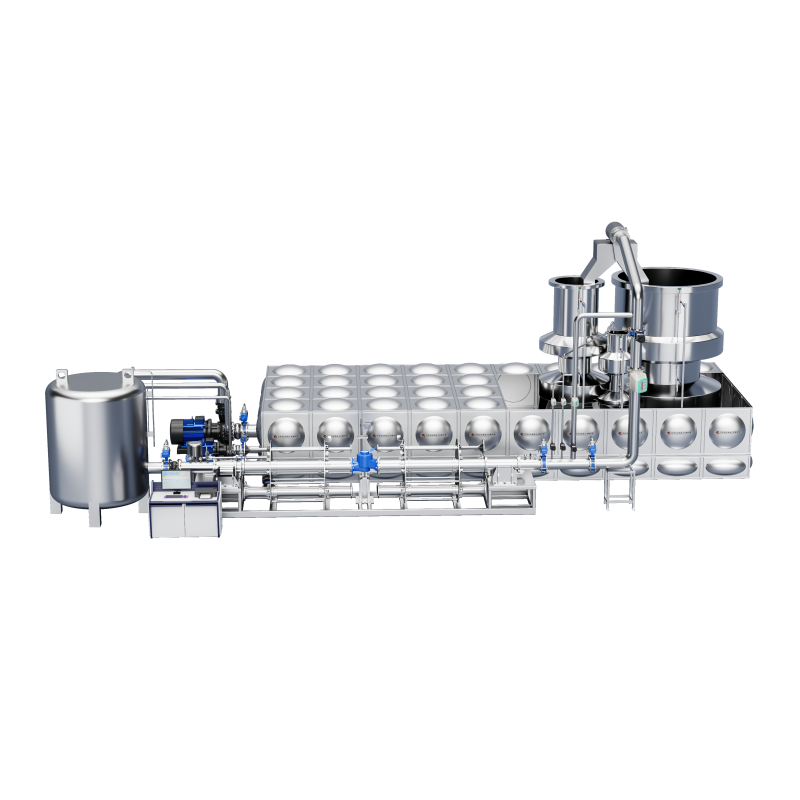

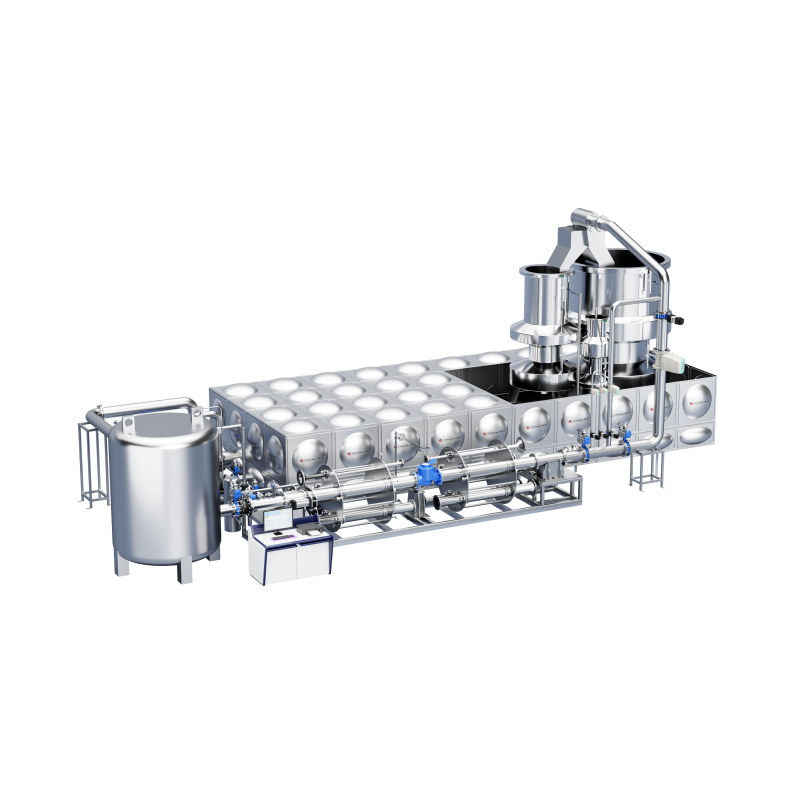

DN50-D200 Fully Automatic Water Meter Test Bench (Rotating Type - Volumetric Method)

Product Introduction

1. High production efficiency;

2. Fast input method: Wireless barcode scanner input for form numbers, fast, accurate, and convenient;

3. Energy saving, water saving, electricity saving, and labor saving;

4. Compact size: Saves space, fully automated, shared network, and saves auxiliary materials;

5. Novel structure: 304 stainless steel piping, novel and elegant appearance.

Detailed product information: Please ask sales personnel.

Product Models: JYM-50-200-5-AV-HS4.0, JYM-50-200-2-AVS-HS4.0

Functional Parameter Table

Test Medium: Pure tap water

Test Methods: Reversing method, start-stop method, standard meter method

Test Meter Types: Ordinary mechanical water meter, ultrasonic water meter, smart water meter, electromagnetic flow meter

Test Meter Diameter/Quantity: DN50 1 unit, DN80 1 unit, DN100 1 unit, DN150 1 unit, DN200 1 unit

Reversing Unit: Cross-type pneumatic open reversing unit

Water Meter Injection System: Differential pressure vacuum generator

Water Meter Data Acquisition System: Mobile phone, camera, laser, infrared, RS232, pulse

Meter Clamping Mechanism: Rotary type

Standard instrument: Volumetric gauge, standard gauge

Liquid level acquisition device: Hikvision camera

Performance parameter table

Device uncertainty: Urel≤0.5‰(K=2)

Flow stability: Start-stop method 1.0%, others: 0.2%

Flow range: (0.03~630)m³/h

Water pump:

H=30m; Q=1m³/h; P=0.5kW 1 unit

H=30m; Q=40m³/h; P=7.5kW 1 unit

H=35m; Q=200m³/h; P=30kW 1 unit

H=30m; Q=600m³/h; P=75kW 1 unit

Volumetric gauge:

50L-100L

1000L-2000L

5000L-12000L

Water source working pressure: 0.3-0.5 MPa Adjustable;

Air source pressure: 0.4-0.7 MPa Standard gauge (instantaneous flow rate display device) (Siemens/E+H/Yokogawa/Köln)

DN10: 20-500 L/H

DN40: 2260-22600 L/H

DN100: 10-200 m³/H

DN200: 56.55-630 m³/H
