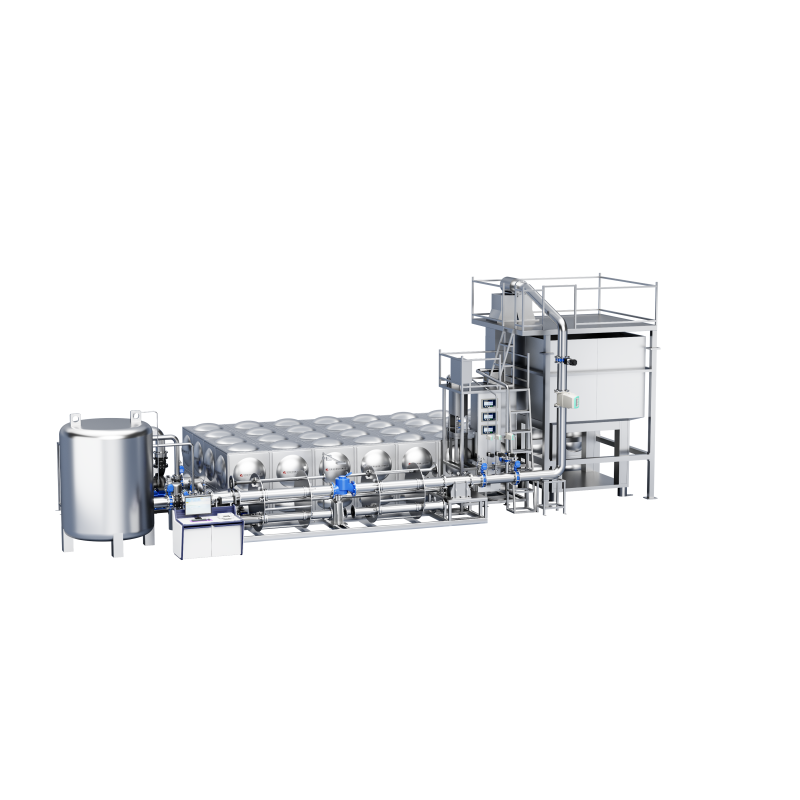

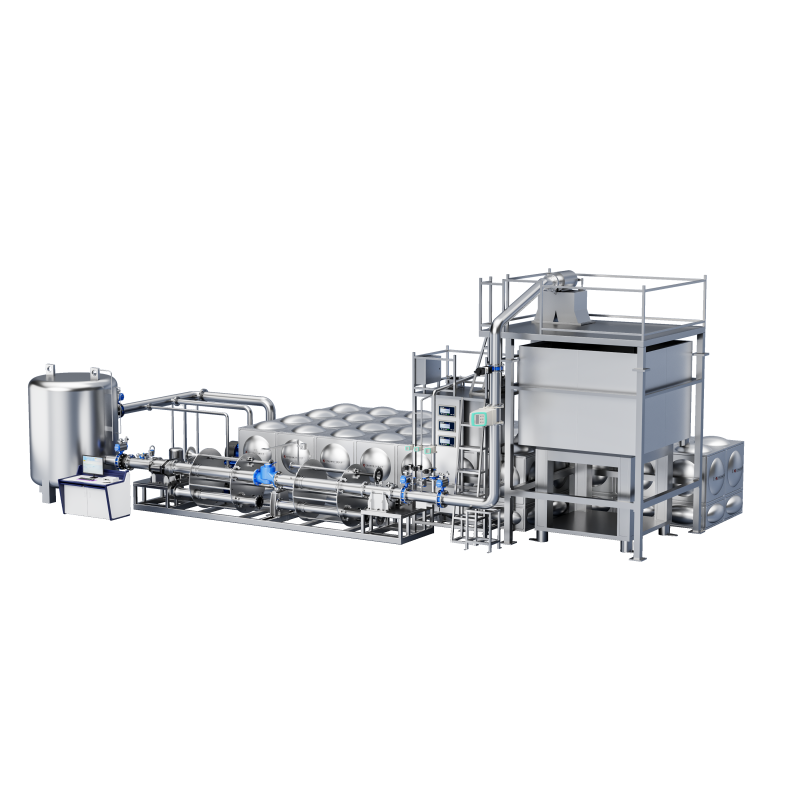

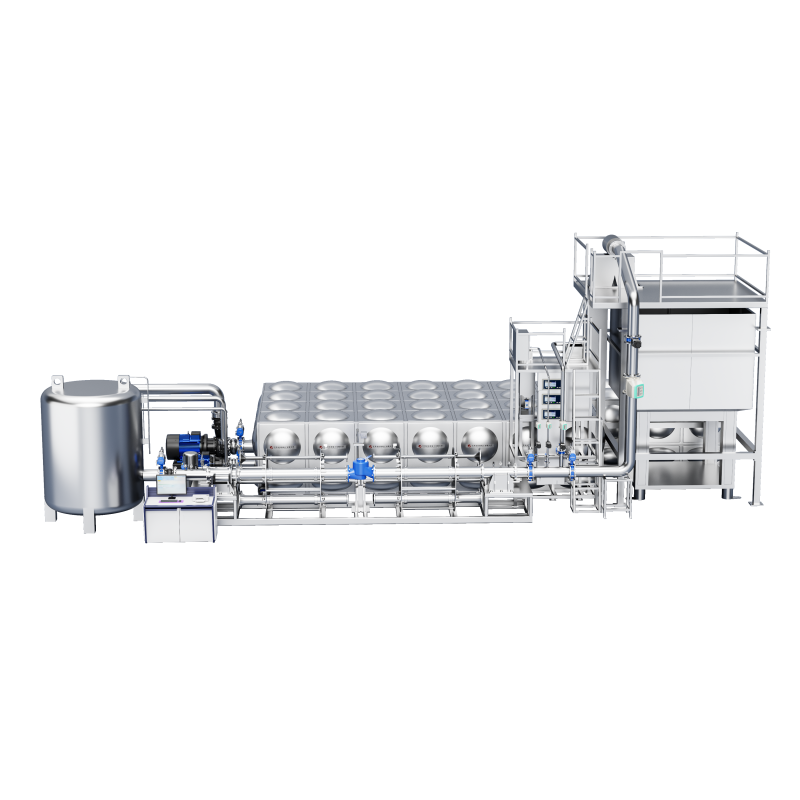

DN50-D200 Fully Automatic Water Meter Test Bench (Rotary Type - Mass Method)

Product Introduction

1. High production efficiency;

2. Fast input method: Wireless barcode scanner input for form numbers, fast, accurate, and convenient;

3. Energy saving, water saving, electricity saving, and labor saving;

4. Compact size: Saves space, fully automated, shared network, and saves auxiliary materials;

5. Novel structure: 304 stainless steel piping, novel and elegant appearance.

Detailed product information: Please ask sales personnel.

Product Models: JYM-50-200-5-AW-HZS4.0, JYM-50-200-2-AWS-HZS4.0

Functional Parameter Table

Test Medium: Pure tap water

Test Methods: Reversing method, start-stop method, standard meter method

Test Meter Types: Ordinary mechanical water meter, ultrasonic water meter, smart water meter, electromagnetic flow meter

Test Meter Diameter/Quantity: DN50 1 unit, DN80 1 unit, DN100 1 unit, DN150 1 unit, DN200 1 unit

Reversing Unit: Cross-type pneumatic open reversing unit

Water Meter Injection System: Differential Pressure Vacuum Generator

Water Meter Acquisition System: Mobile Phone, Camera, Laser, Infrared, RS232, Pulse

Meter Clamping Mechanism: Rotary Type

Standard Instruments: Electronic Scale, Standard Meter

Performance Parameter Table

Device Uncertainty: Urel≤0.5‰ (K=2)

Flow Stability: Start-Stop Method 1.0%, Others: 0.2%

Flow Range: (0.03~630) m³/h

Water Pumps:

H=30m; Q=1m³/h; P=0.5kW 1 unit

H=30m; Q=40m³/h; P=7.5kW 1 unit

H=35m; Q=200m³/h; P=30kW 1 unit

H=30m; Q=600m³/h; P=75kW 1 unit

Electronic scale resolution:

Max=60kg, 6000e

Max=600kg, 6000e

Max=12000kg, 6000e

Water source working pressure: 0.3-0.5Mpa Adjustable;

Air source pressure: 0.4-0.7MPa

Standard flow meter (instantaneous flow display device) (Siemens/E+H/Yokogawa/Köln)

DN10: 20-500L/H

DN40: 2260-22600L/H

DN100: 10-200m³/H

DN200: 56.55-630m³/H
