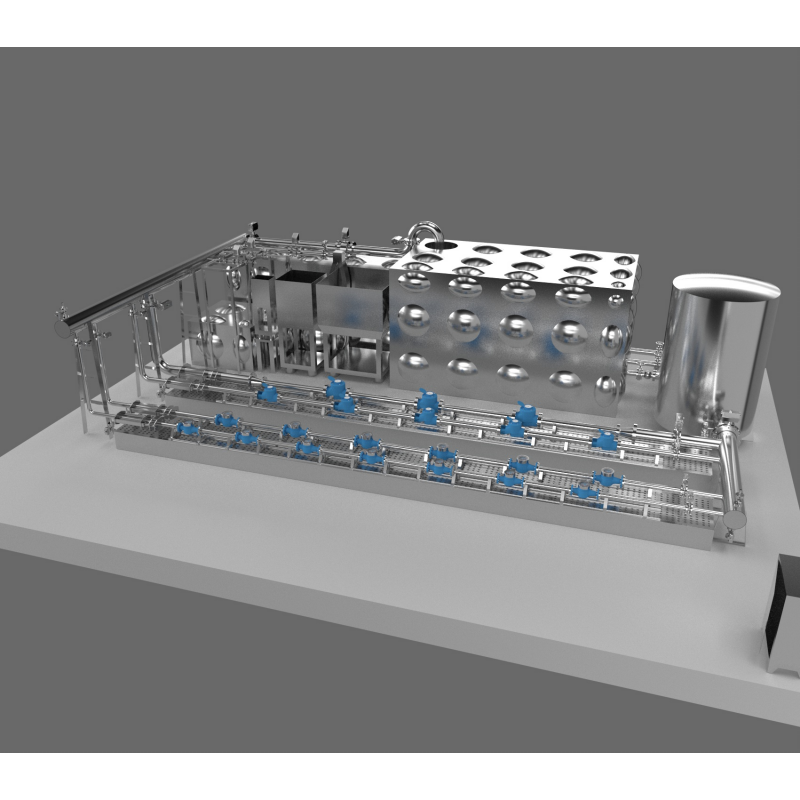

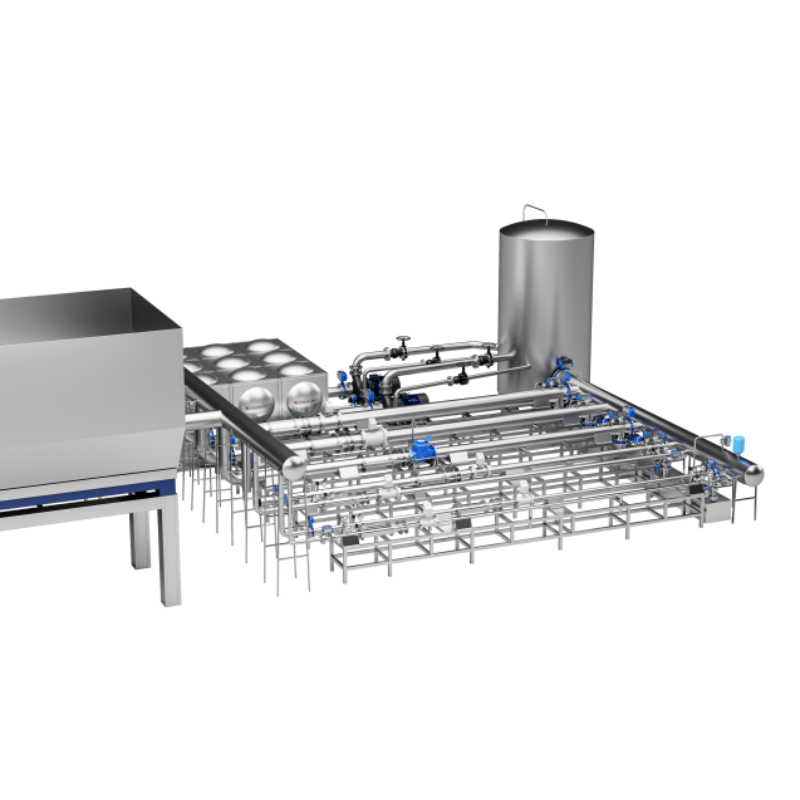

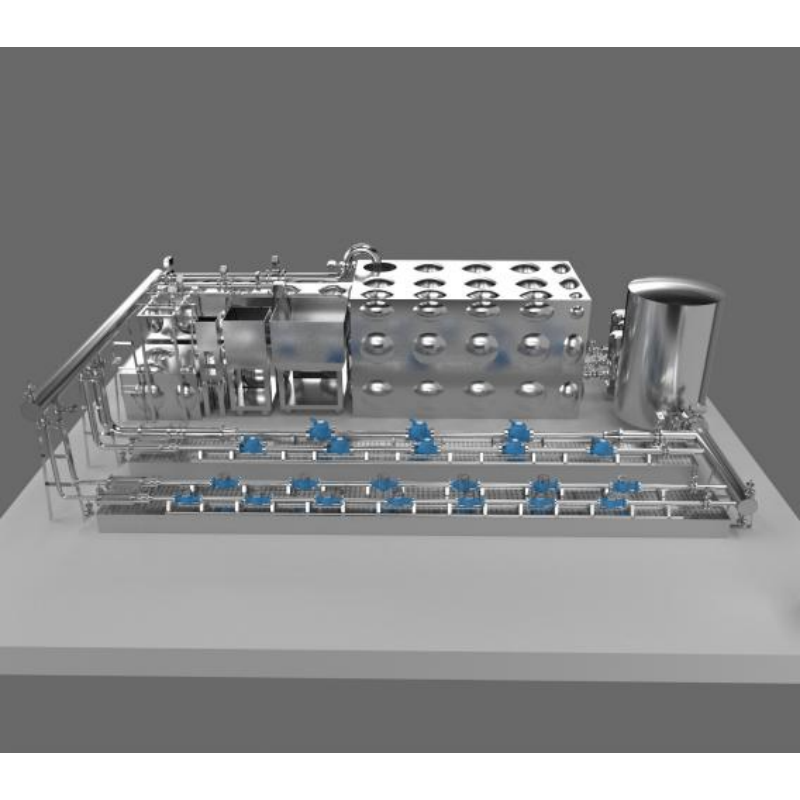

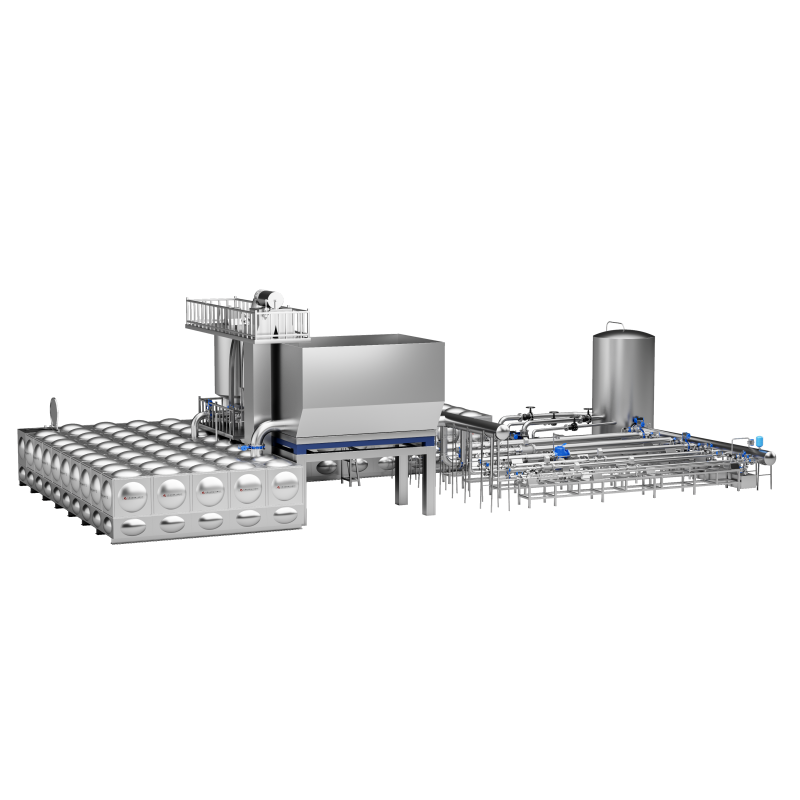

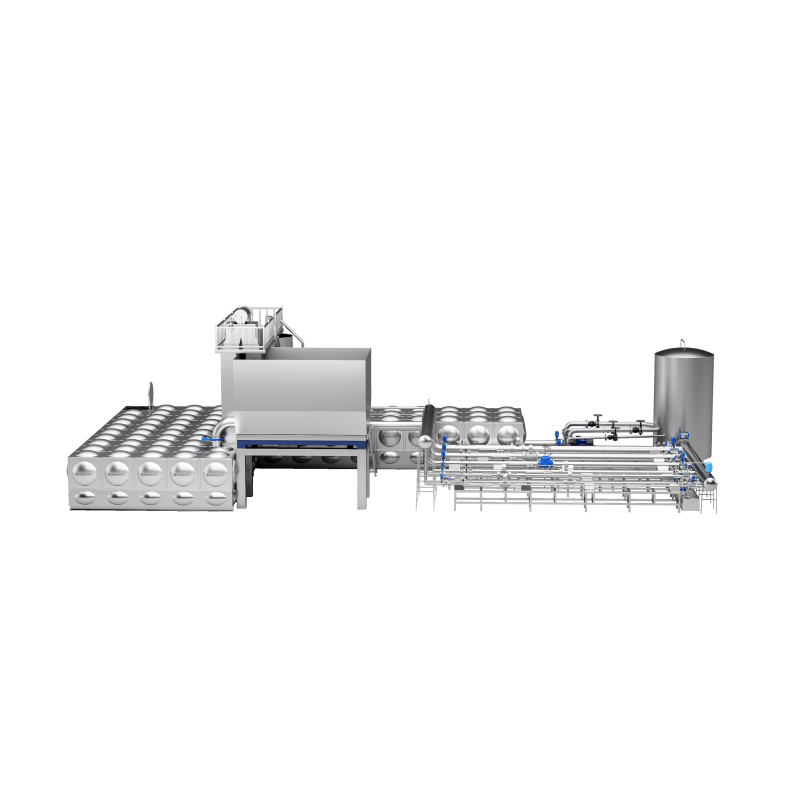

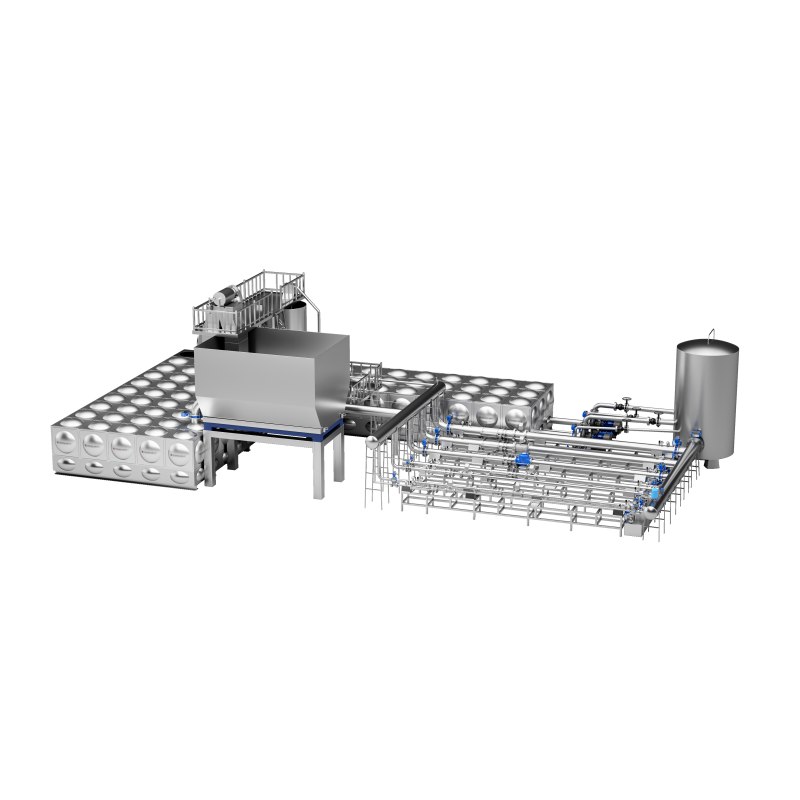

DN50-D300 Fully Automatic Water Meter Test Bench (Horizontal Type)

Product Introduction

1. High production efficiency;

2. Fast input method: Wireless barcode scanner input for form numbers, fast, accurate, and convenient;

3. Energy saving and consumption reduction: Saves water, electricity, and labor;

4. Compact size: Saves space, fully automated, shared network, and saves auxiliary materials;

5. Novel structure: 304 stainless steel piping, novel and elegant appearance. Detailed product information: Please request from sales personnel.

Product Models: JYM-50-300-5-AWH-HS4.0, JYM-50-300-2-AWSH-HS4.0

Functional Parameter Table:

Water Source Working Pressure: 0.3-0.7 MPa

Adjustable; Air Source Pressure: 0.4-0.7 MPa

Standard Gauge (Instantaneous Flow Display Device): DN10, DN25, DN80, DN300

Test Medium: Pure Tap Water

Testing Methods: Dual-Time Method, Start-Stop Method, Standard Gauge Method

Type of Gauge Under Test: Ordinary Mechanical Water Meter, Ultrasonic Water Meter, Smart Water Meter, Electromagnetic Flow Meter

Gauge Diameter/Quantity Under Test: DN50 1 unit, DN80 1 unit, DN100 1 unit, DN150 1 unit, DN200 1 unit, DN250 1 unit, DN300 1 unit

Commutator: Cross-type pneumatic open commutator

Water meter acquisition system: Mobile phone, camera, laser, infrared, RS232, pulse, 4-20mA

Meter clamping mechanism: Tube‑replacement type, rotary type, flat type

Standards: Electronic scale, standard meter, volumetric meter

Performance parameter table

Device uncertainty: U≤0.5‰(K=2)

Flow stability: Start-stop method 1.0%, others: 0.2%

Flow range: (0.030~630) m³/h

Water pumps: D100-33G/2 100m³/h 30m two units

TD250-32/4 540m³/h 30m three units

TD50-32G/ 25m³/h 34.6m one unit

TD32-33G/2 2.5m³/h 33m-unit electronic scale resolution: 60KG, 600KG, 3000KG, 20000KG
