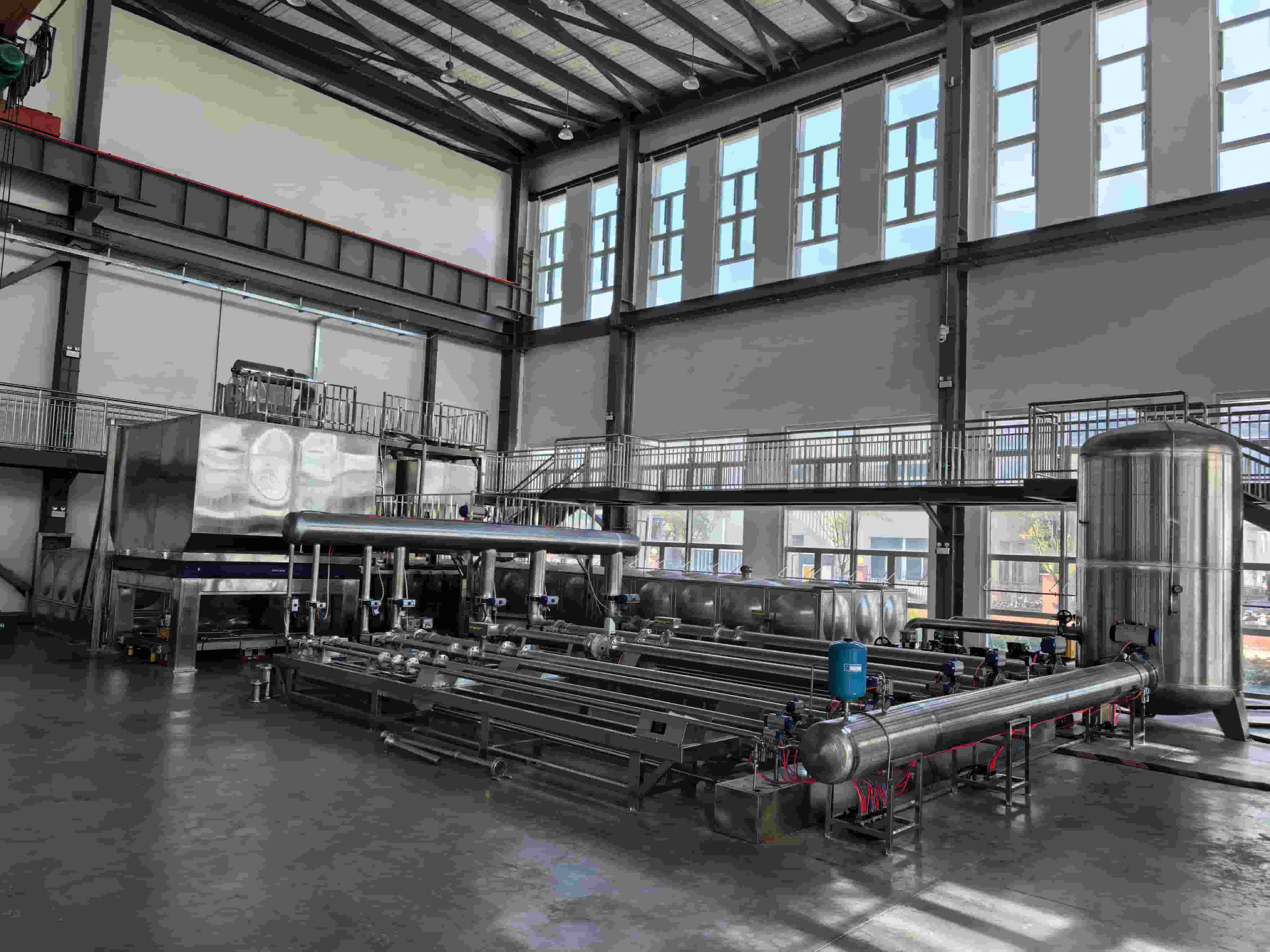

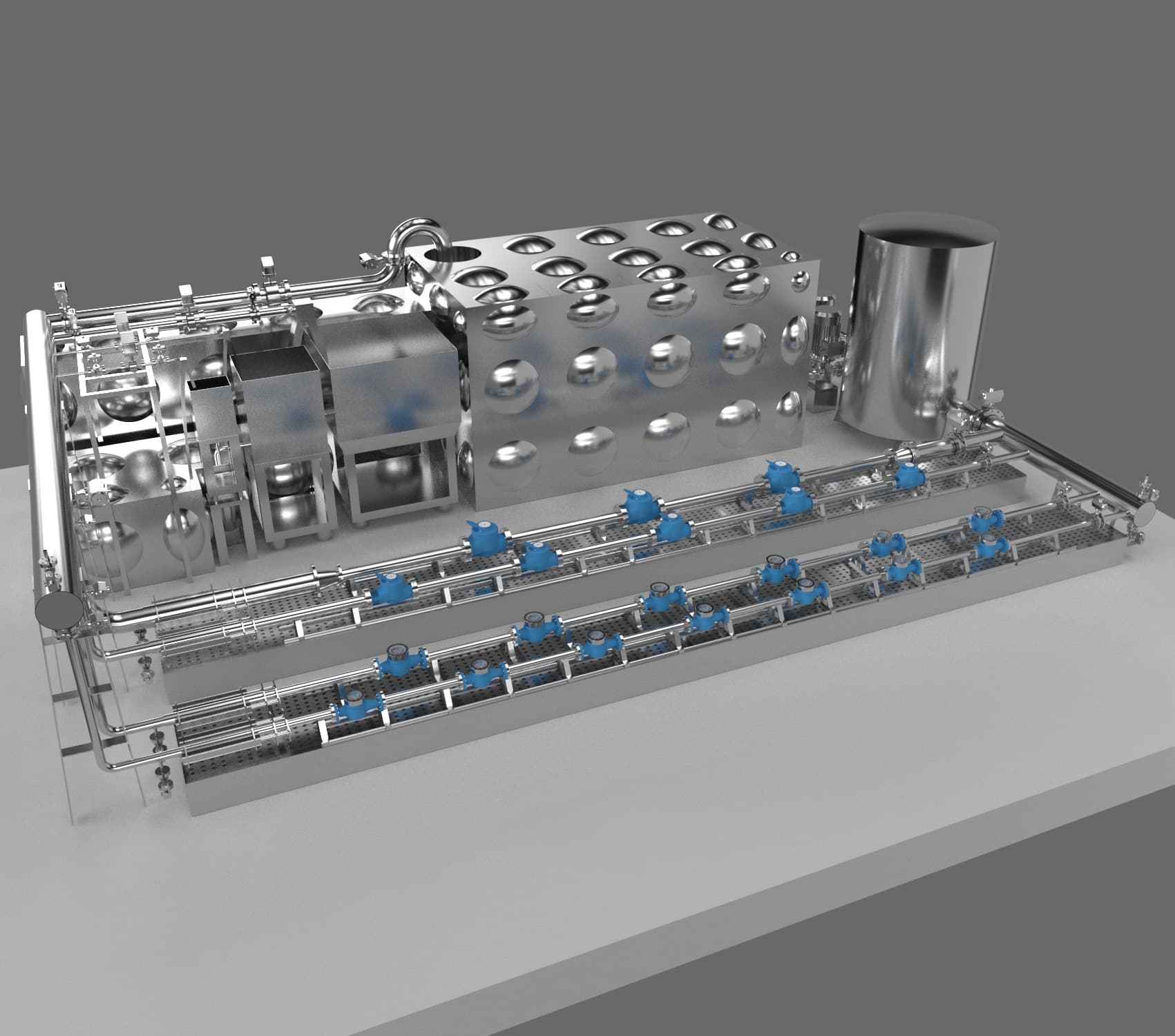

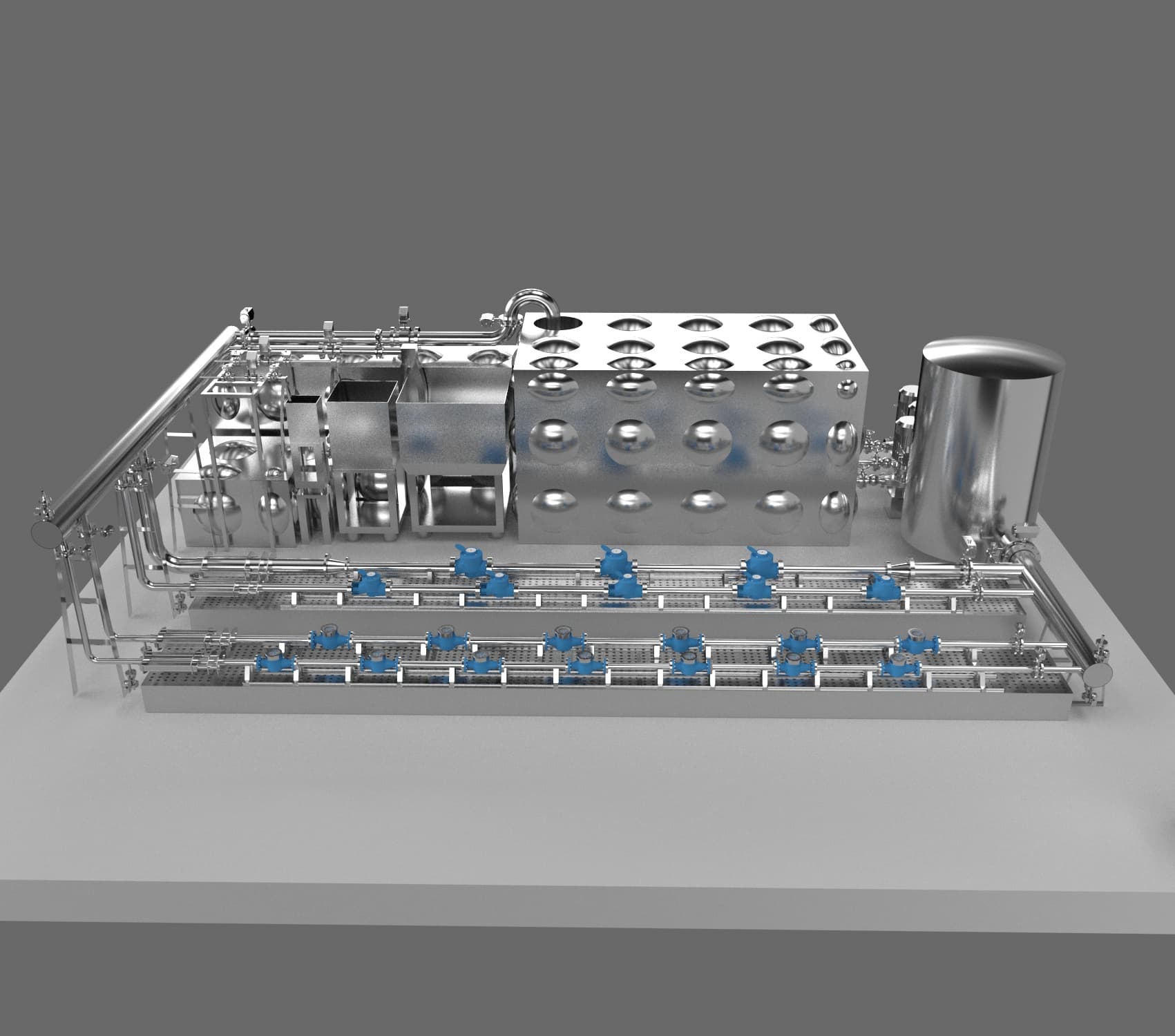

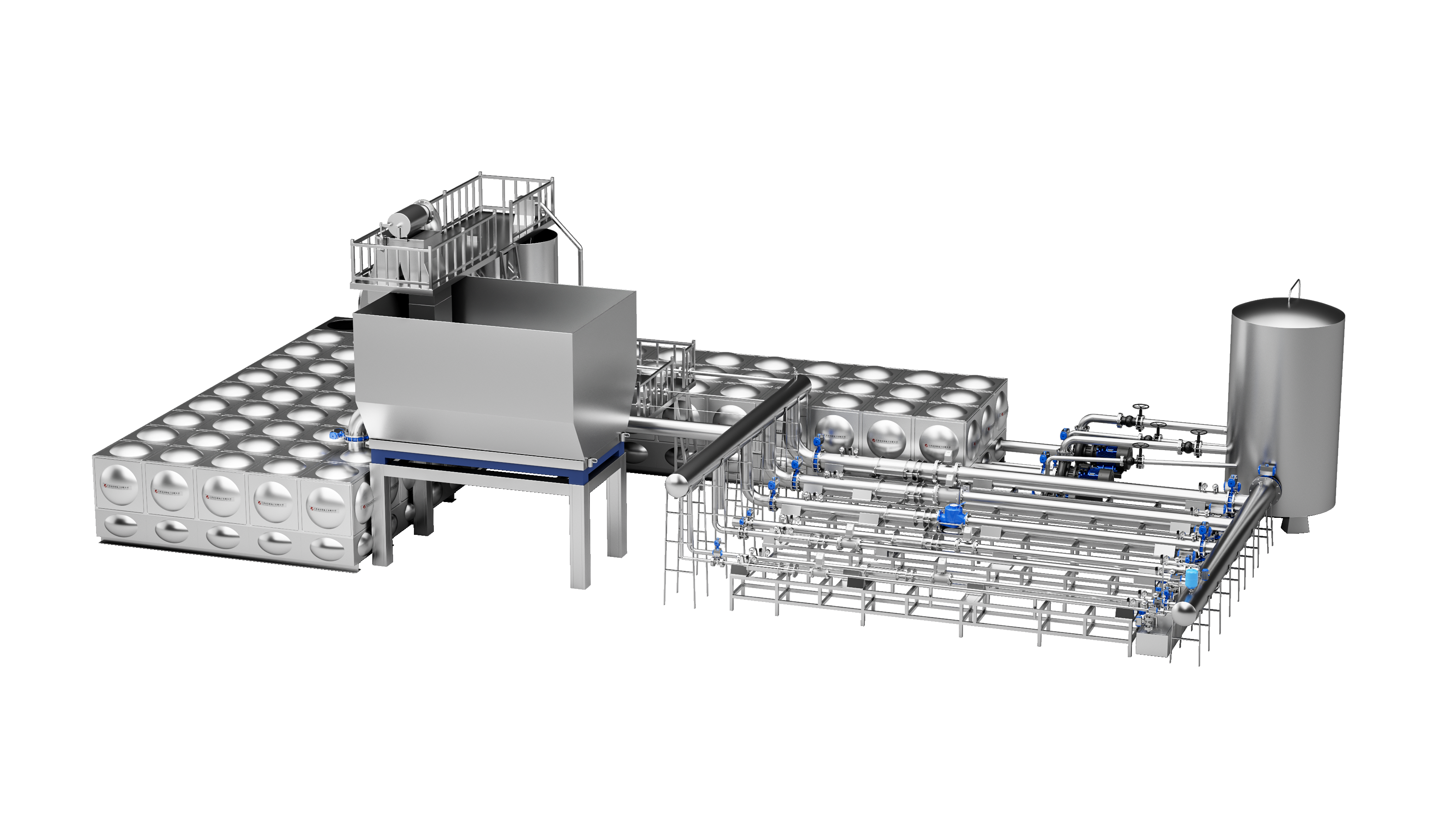

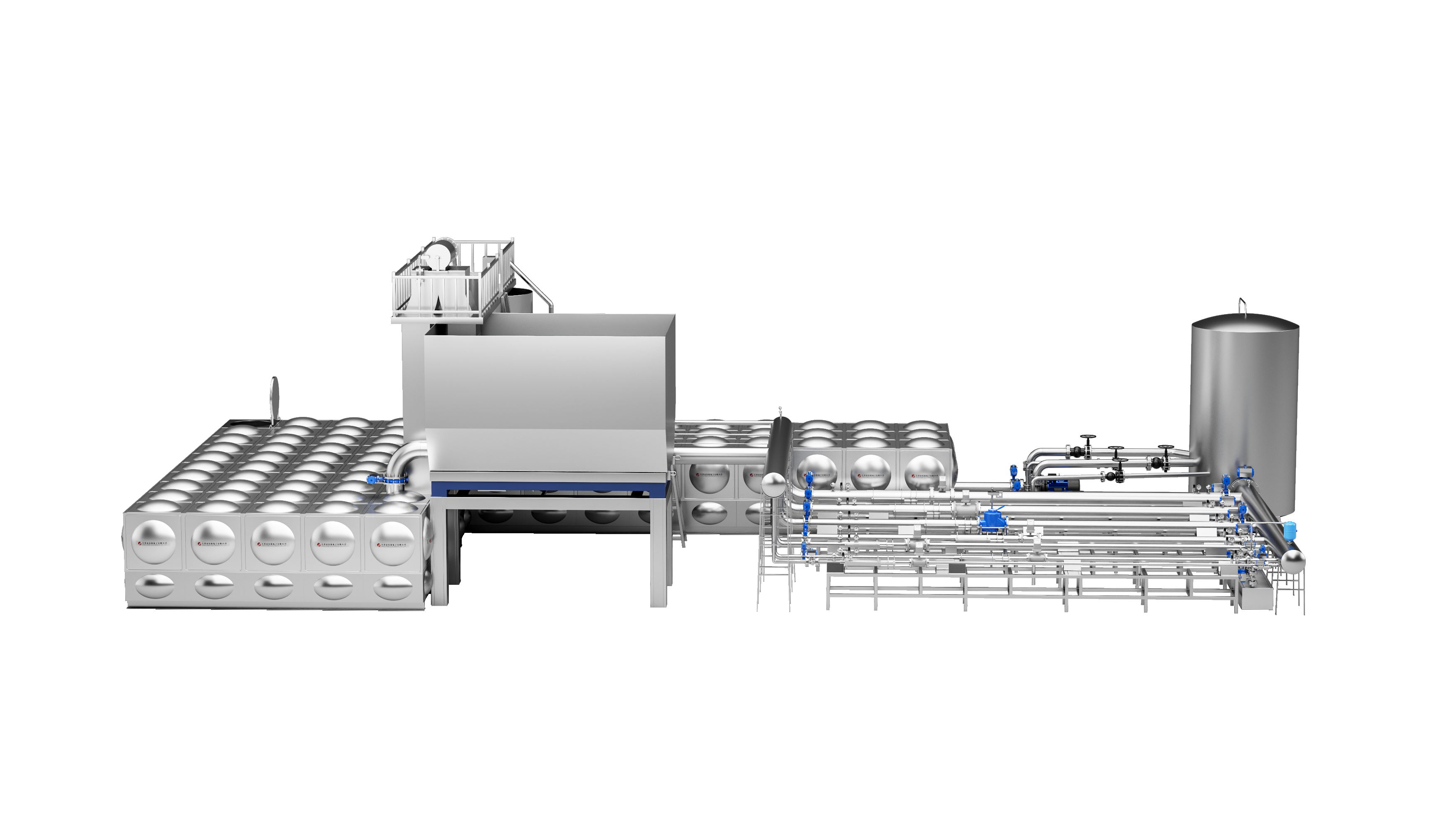

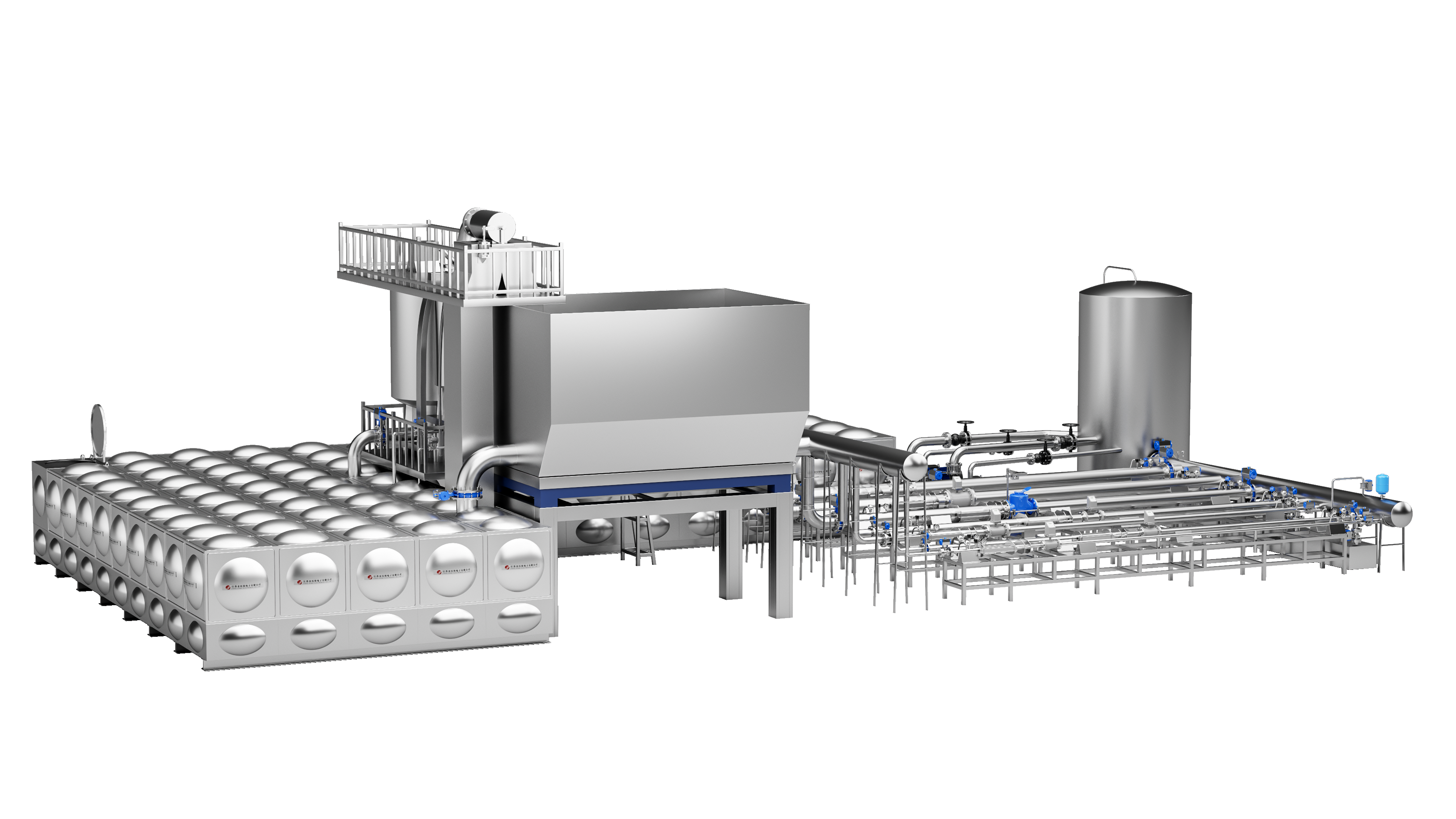

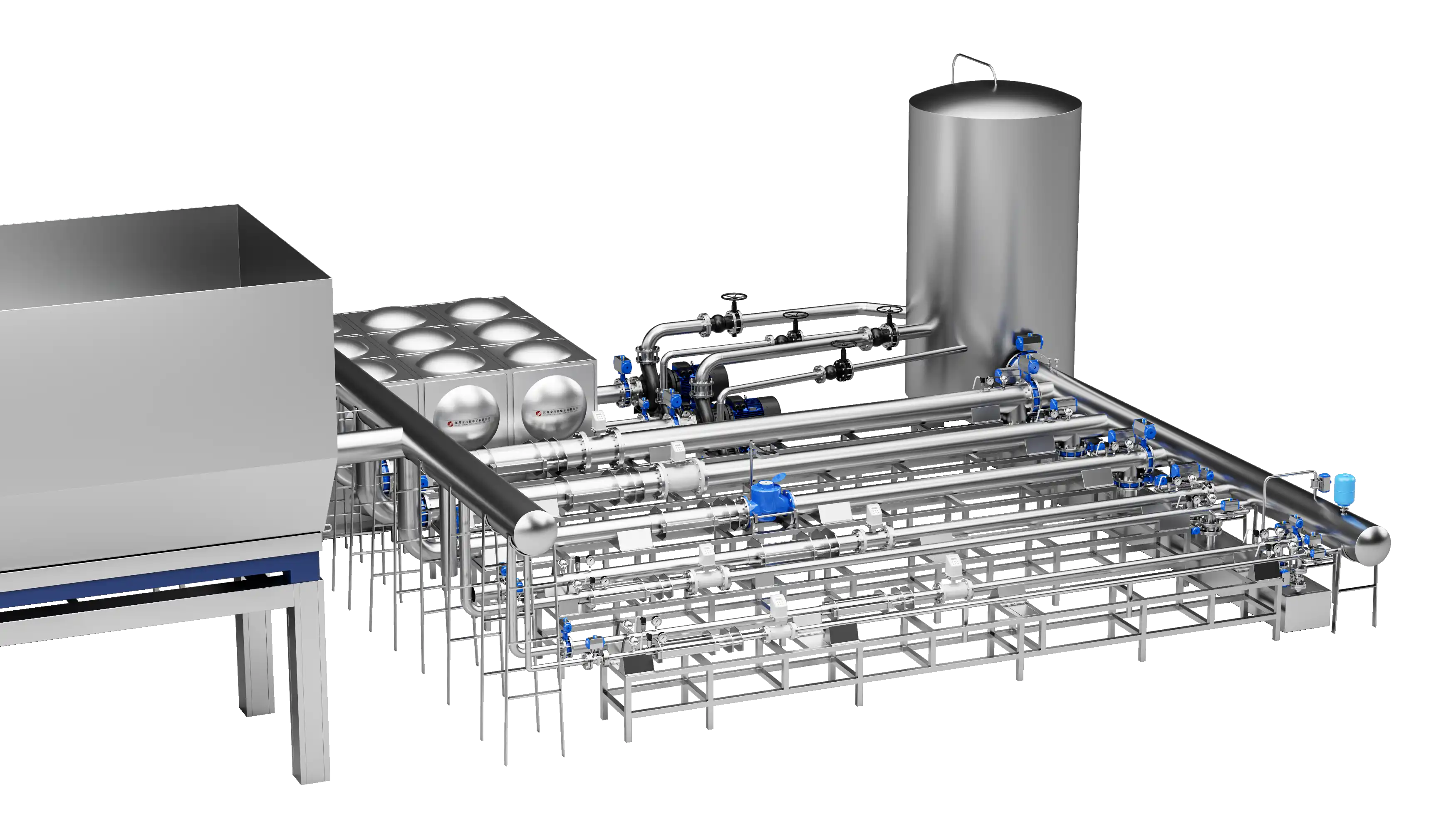

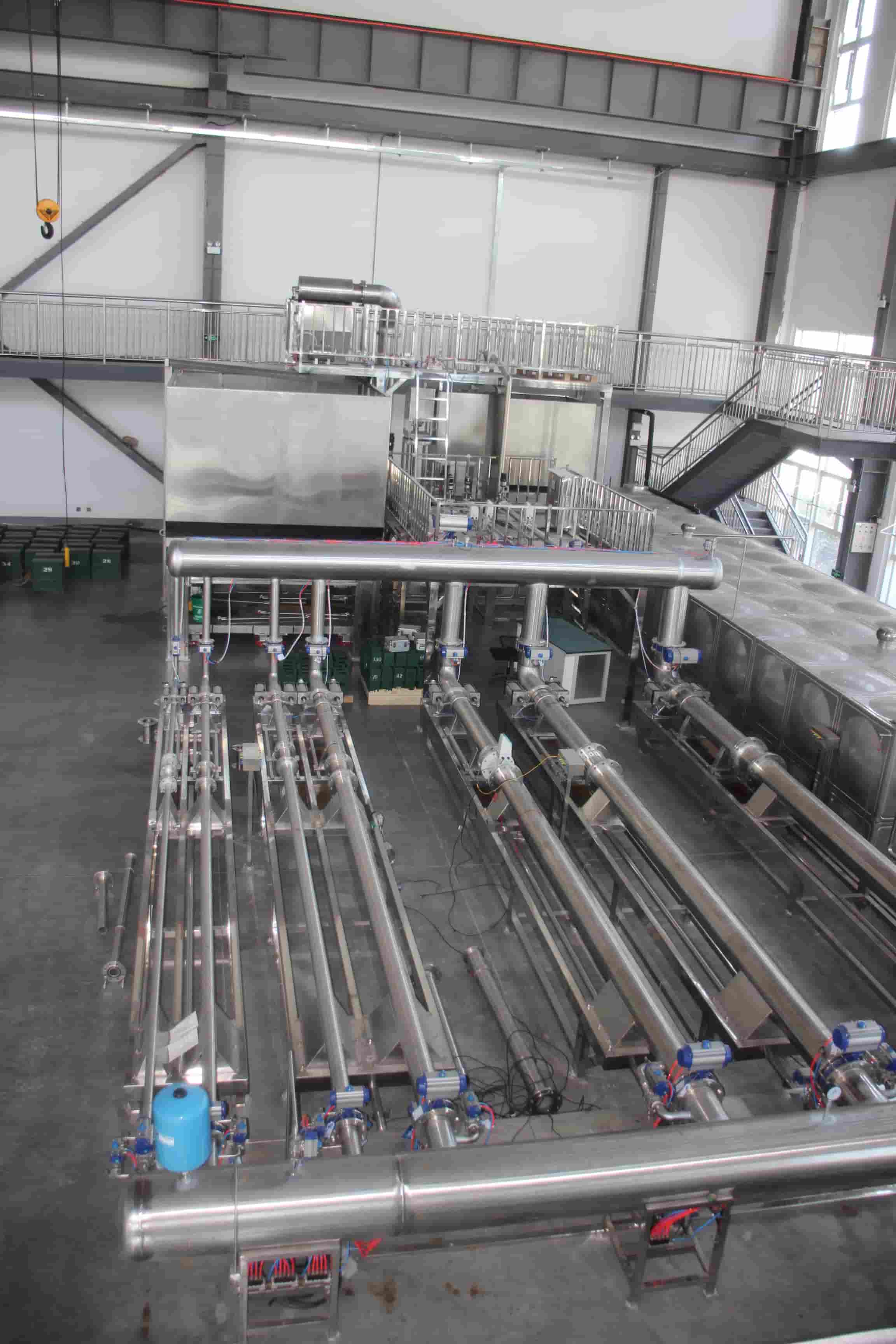

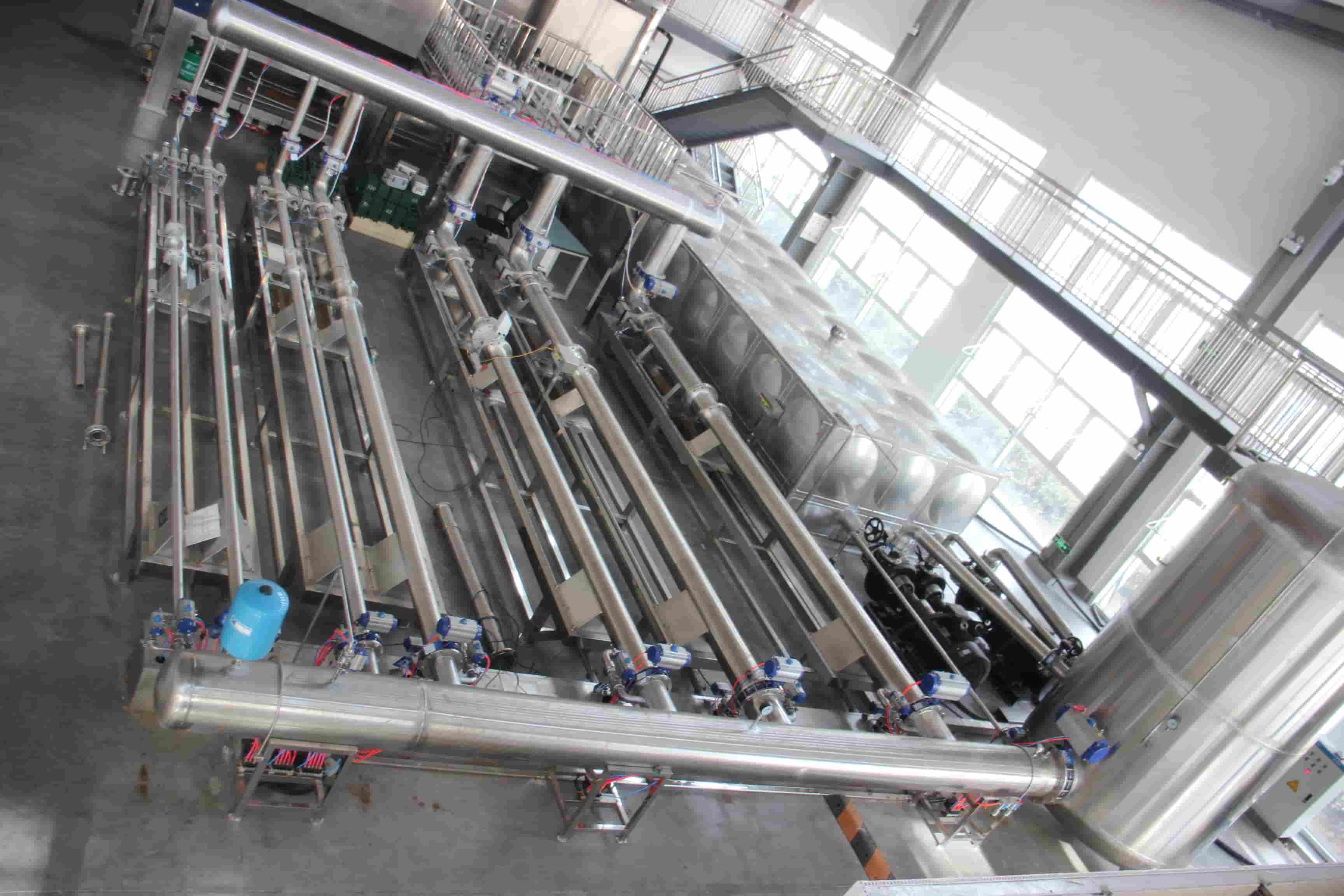

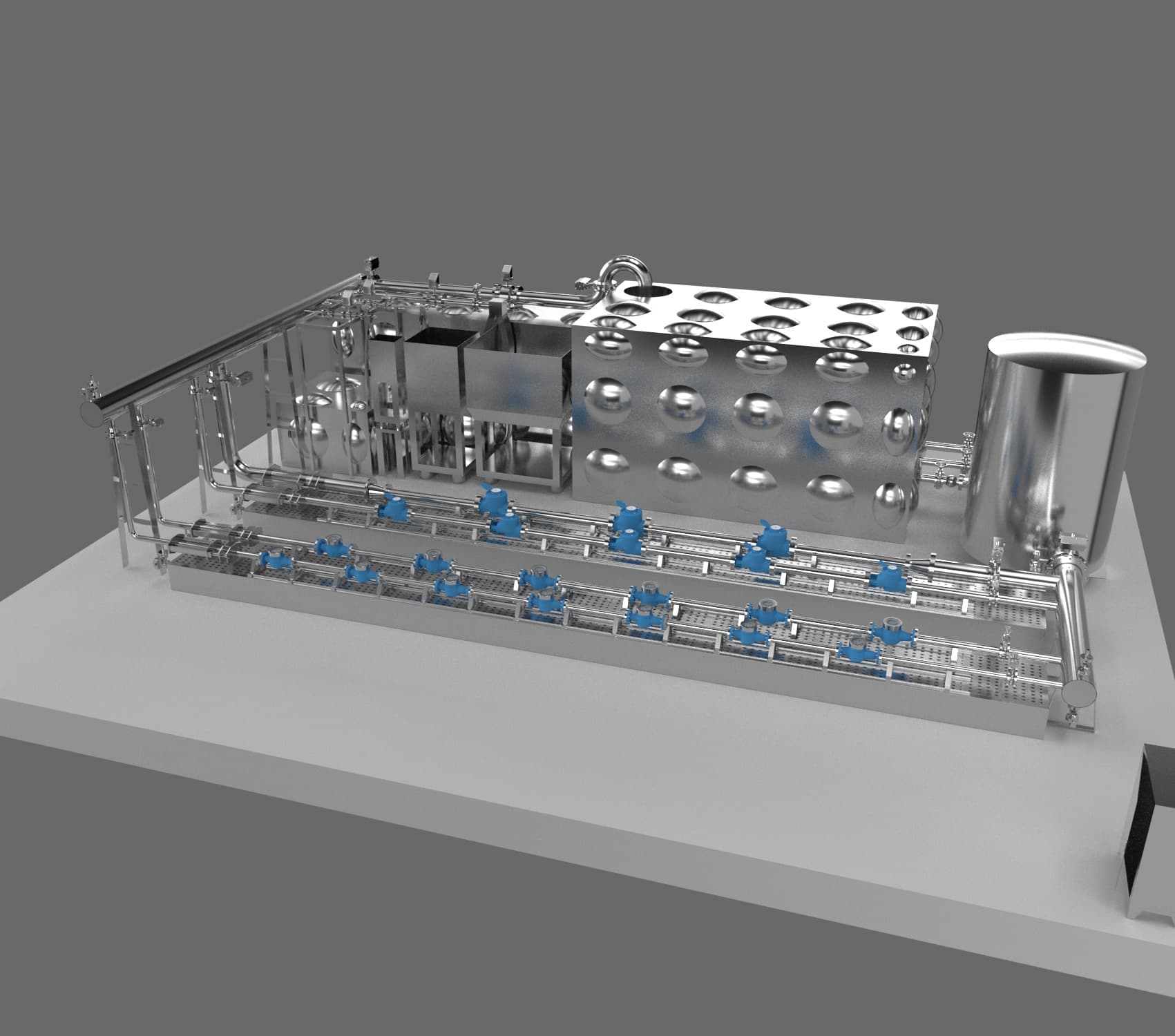

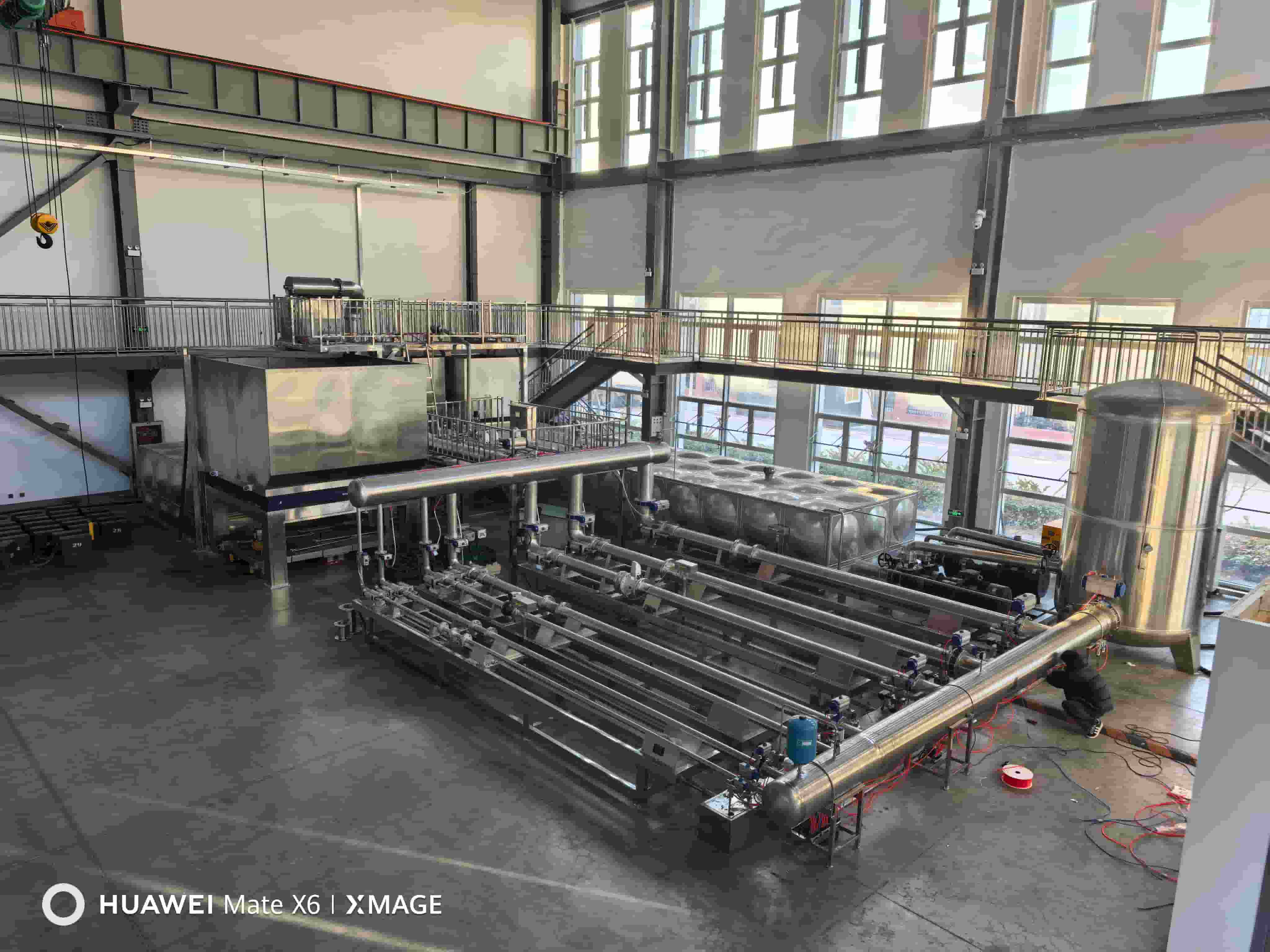

DN50-D300 Fully Automatic Water Flow Calibration Device (Flat Layout Type - Mass Method）

Type of Gauge Under Test: Ordinary Mechanical Water Meter, Ultrasonic Water Meter, Smart Water Meter, Electromagnetic Flow Meter

Send Inquiry

Product Description

Product Introduction

1. High production efficiency;

2. Fast input method: Wireless barcode scanner input for form numbers, fast, accurate, and convenient;

3. Energy saving and consumption reduction: Saves water, electricity, and labor;

4. Compact size: Saves space, fully automated, shared network, and saves auxiliary materials;

5. Novel structure: 304 stainless steel piping, novel and elegant appearance. Detailed product information: Please request from sales personnel.



  Water Flow Calibration Device, Urel ≤ 0.05% (k=2)
Flow Stability 1.0% for Start-Stop Method; 0.2% for Other Methods
Calibration Medium Pure Tap Water
Operating Humidity Humidity: ≤ 93% RH
Operating Water Temperature 20℃ ± 10℃
Water Temperature Fluctuation in Single Measurement Water Temperature Fluctuation in Single Measurement
Water Fluctuation Coefficient in Single Cycle ≤ ±0.1%
Water Source Operating Pressure 0.0-0.5 MPa (Adjustable)
Air Source Operating Pressure 0.4-0.7 MPa
Device Operating Temperature 4˜50℃
Number of Meters Under Test DN50/65/80/100: 5 units | DN125/150/200: 2 units | DN250: 1 unit | DN300: 1 unit
Water Pump (CM10-10) H: 40 m; Q=10 m³/h; P=2.2 kW, 1 unit | (TD50-40G2/4) H: 40 m; Q=100 m³/h; P=18 kW, 1 unit | (TD300-40/4) H: 36 m; Q=1200 m³/h; P=110 kW, 2 units
Water Tank 150 m³
Reverser DN15, DN25, DN50, DN100 & DN400 Cross-Type Pneumatic Open Reversers, Low Noise & High Sensitivity, Stroke Difference < 10 ms, Uncertainty ≤ 0.002%
Meter Clamping Mechanism Stainless Steel Pneumatic Meter Clamping Device
Water Meter Tightness Test Pressure Range: (0˜2.0) MPa
Nominal Diameter Φ50 mm, Telescopic Stroke ≥ 80 mm
Timer (10-100) kHz (Adjustable); Accuracy Better Than 10⁻⁶
Calibration Signal Pulse, f = (0˜10) kHz
Vacuum System Differential-Pressure Vacuum Generator, Vacuum Priming, Maintains Water Meters in Full-Water State
Supported Test Modes Fully Automatic, Semi-Automatic, Touchscreen Manual
Data Acquisition Devices 7 Sets of Pulse Collectors, 7 Sets of Serial Ports (RS232/RS485), 7 Sets of Camera-Based Water Meter Collectors
Standard Device Mass Method
Flow Range （0.010-2100）m³/h
Calibration Methods Start-Stop Method Reversal Method Quantity
Electromagnetic Flowmeter
Instantaneous Flow Display
Advanced (0.5 Grade)		 DN6 50-500L/H 1
DN15 320-3200L/H 1
DN40 2260-22600L/H 1
DN100 10-200m³/H 1
DN300 127-1100m³/h 2
Electronic Scale
Mass Method Standard		 ①Max=60kg，6000e 1
②Max=600kg，6000e 1
③Max=3T，6000e 1
④Max=30T，6000e 1
This plan is for reference only; customized solutions can be provided according to customer requirements.
