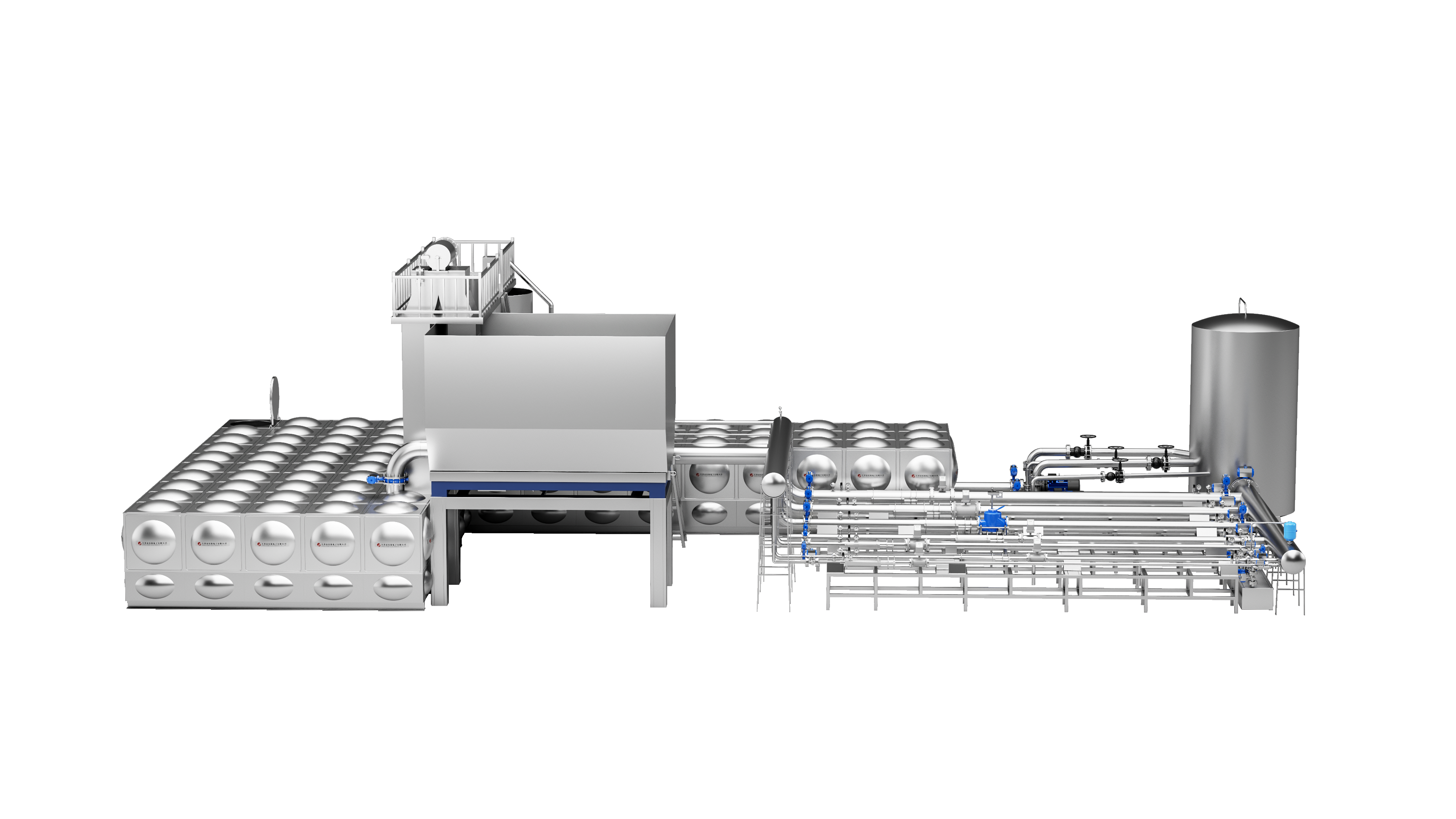

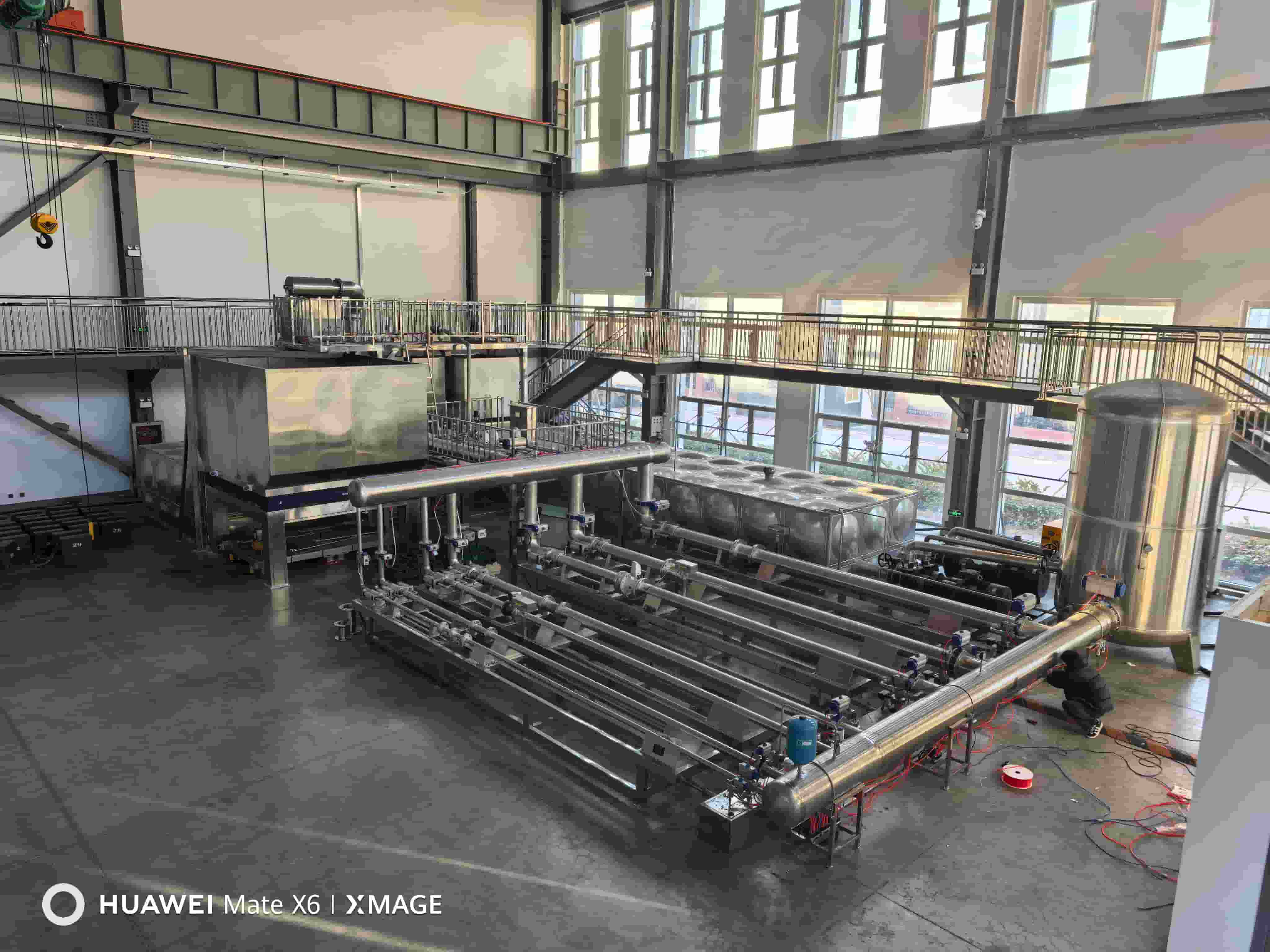

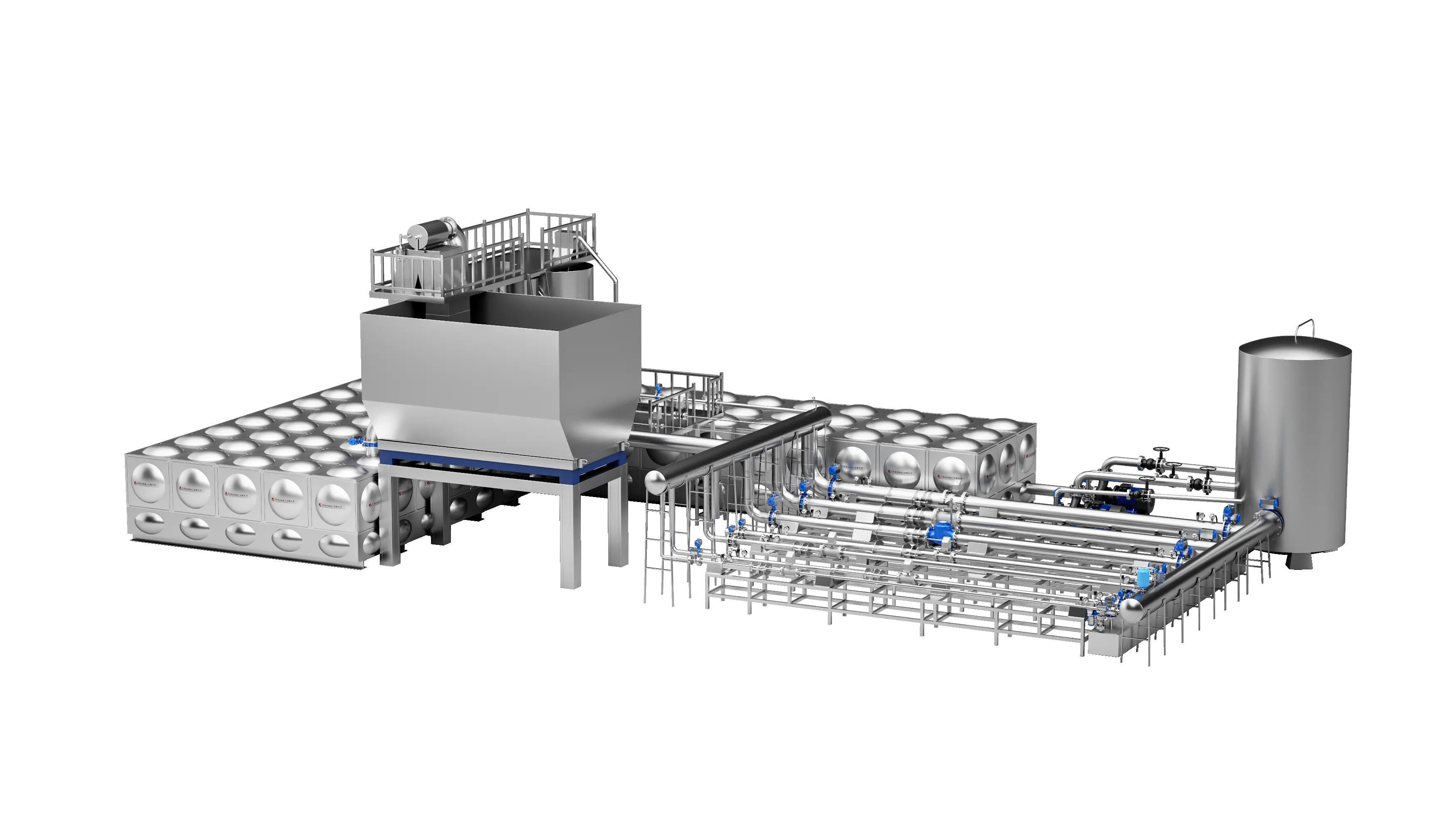

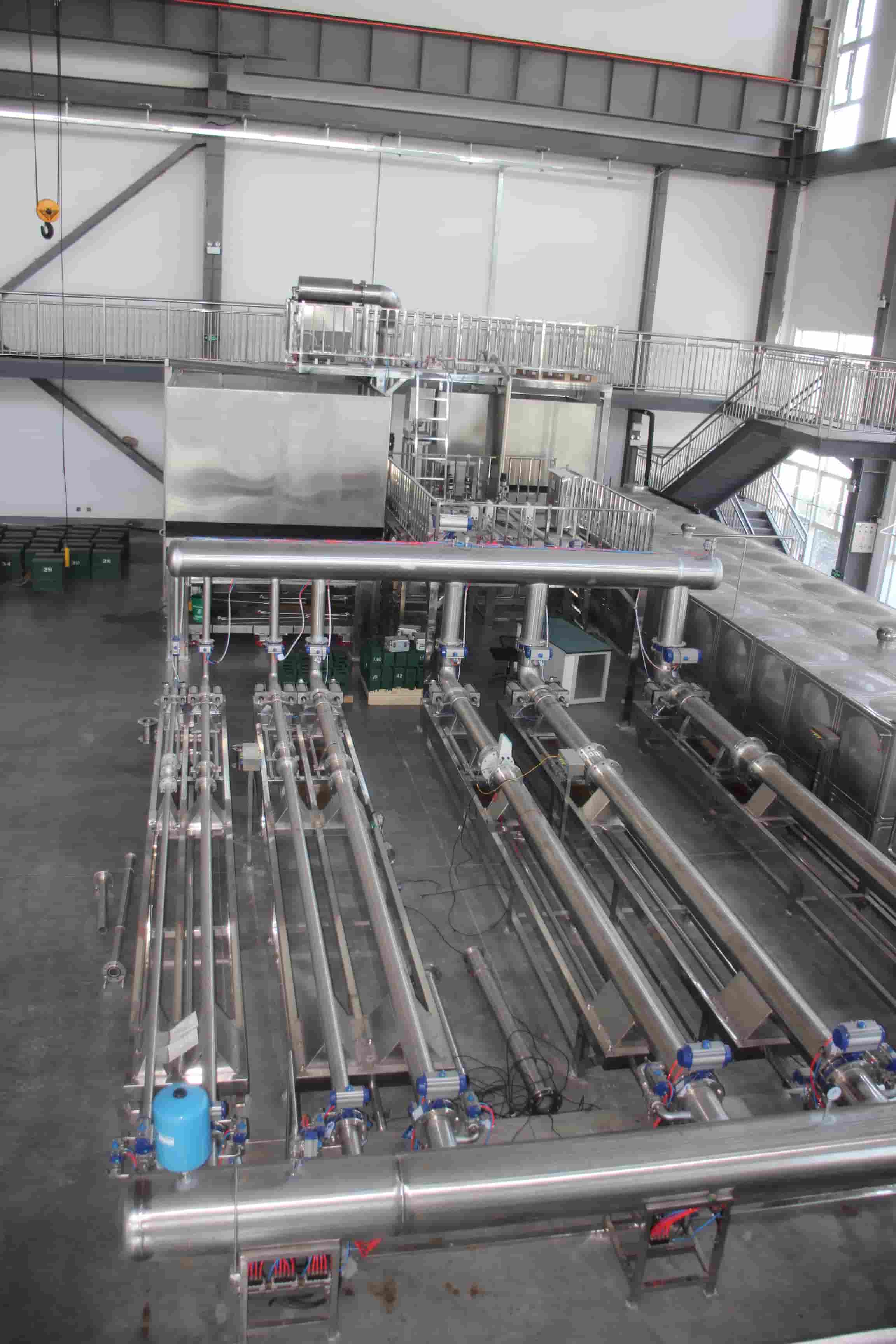

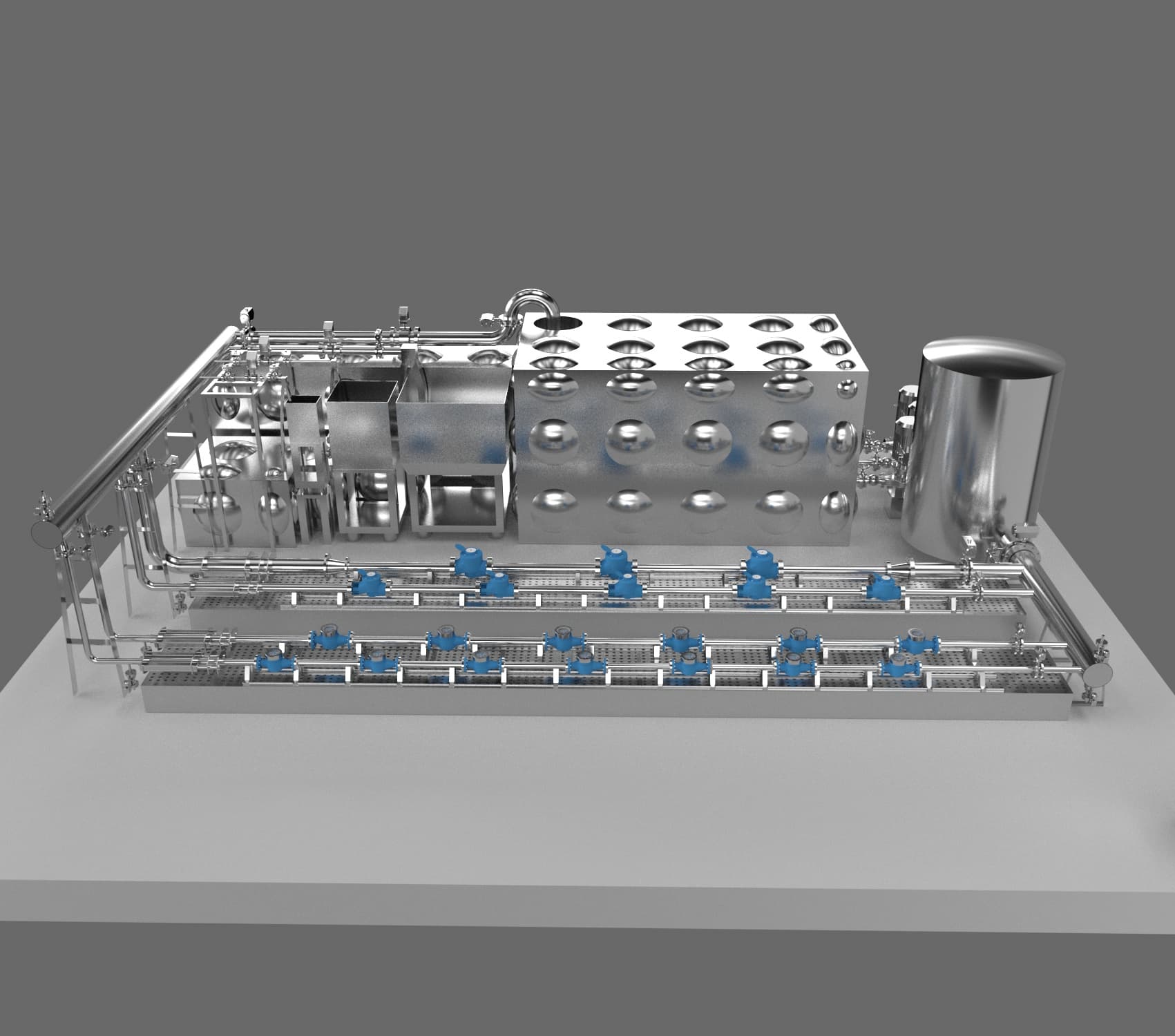

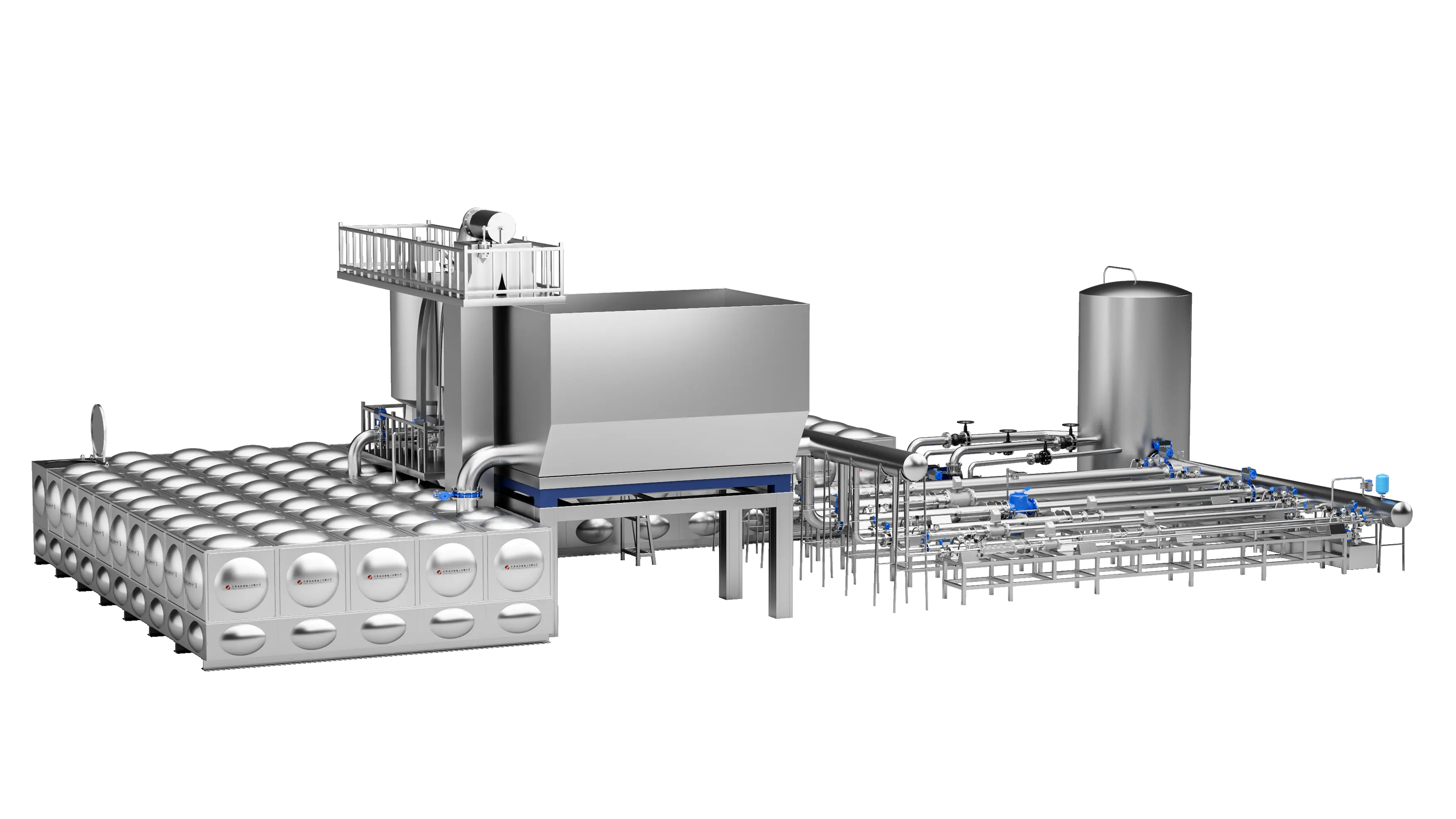

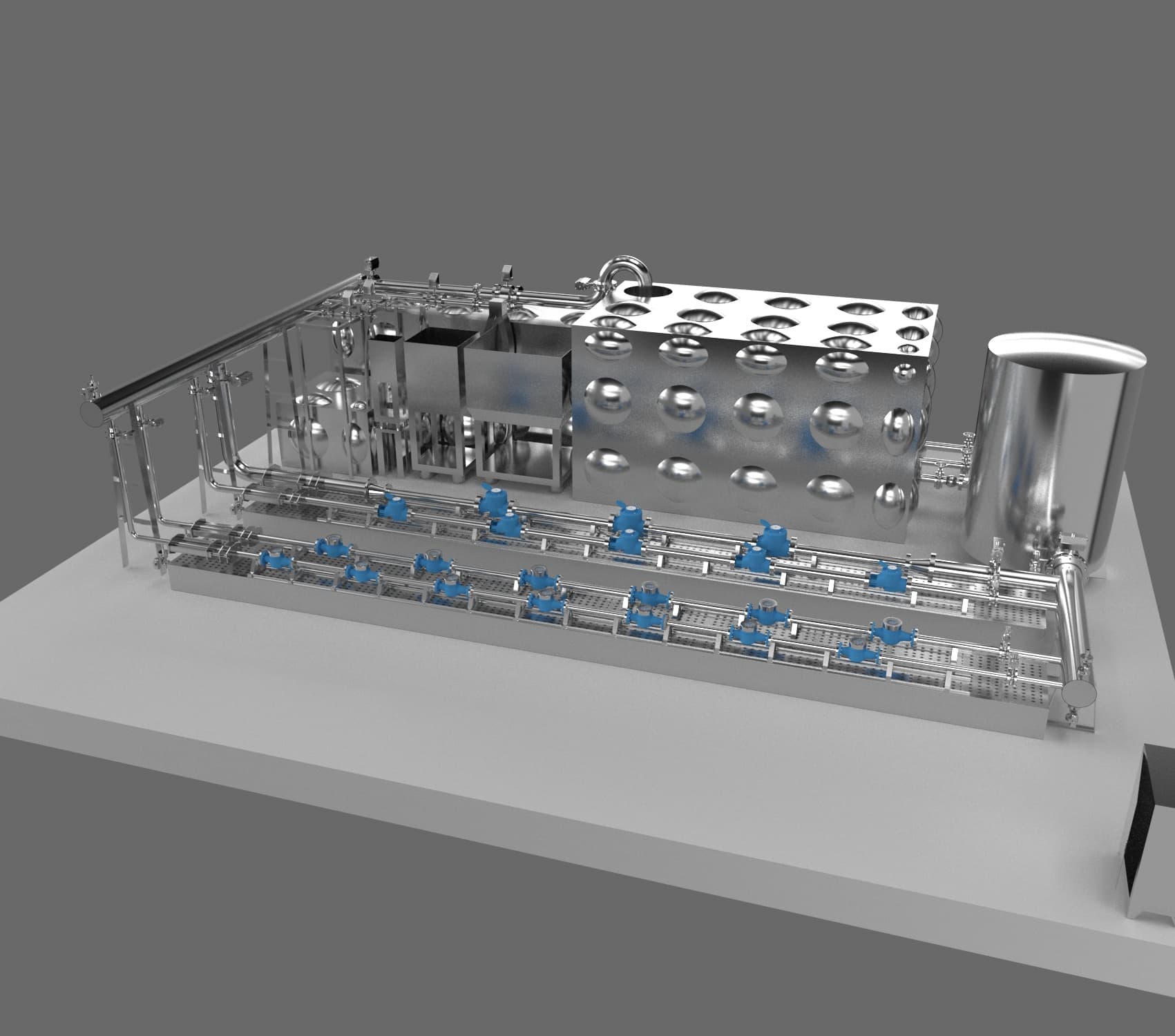

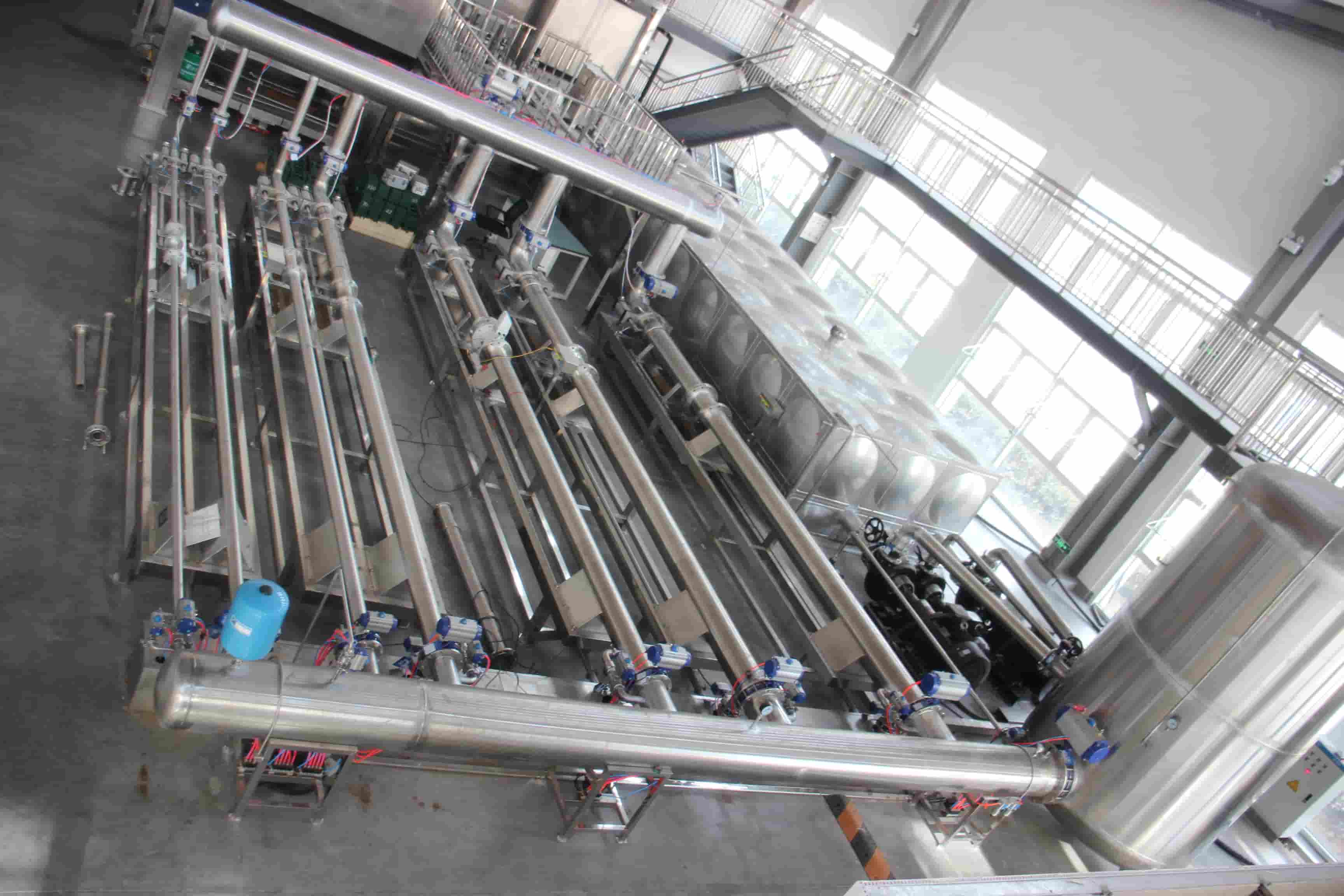

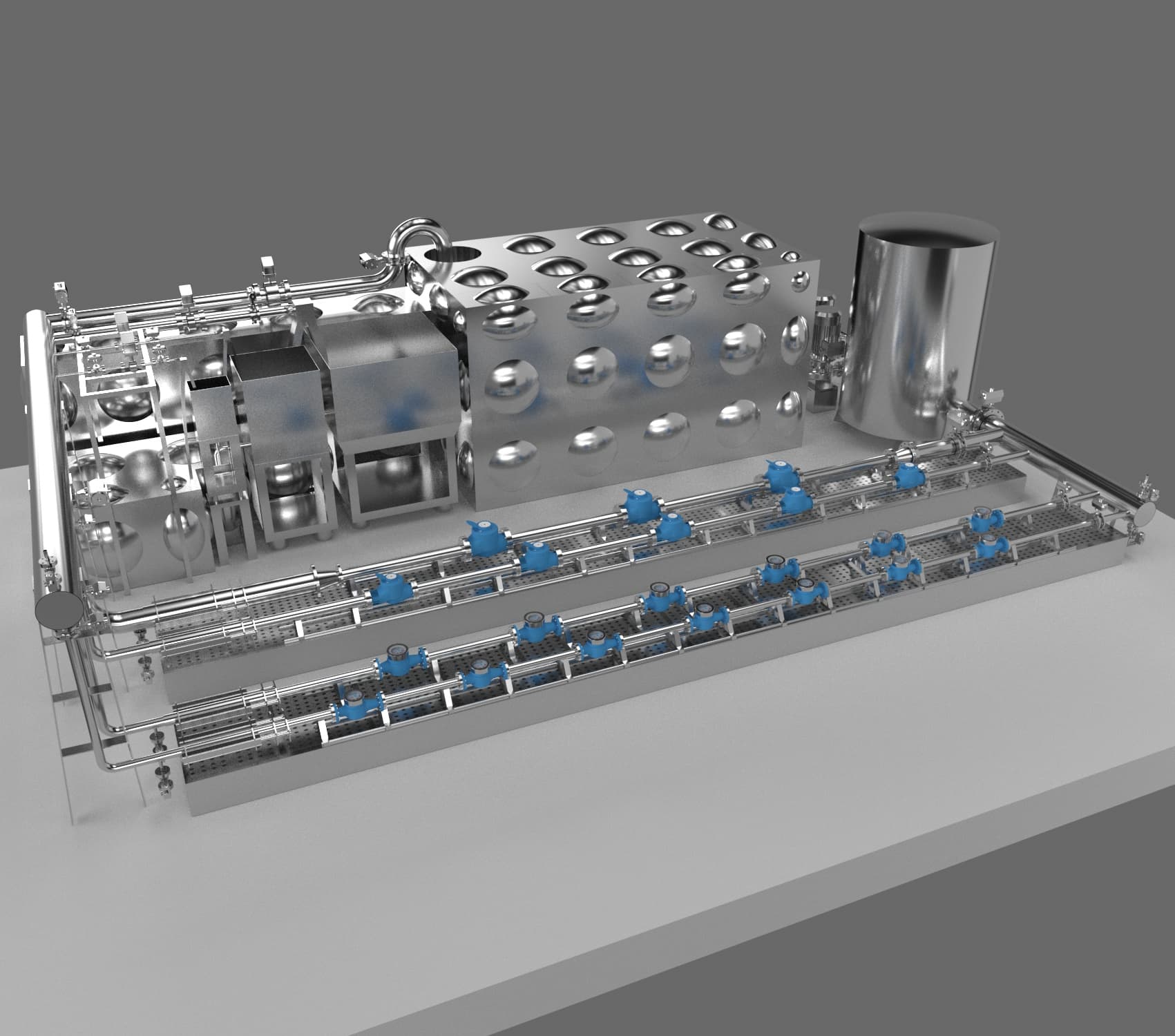

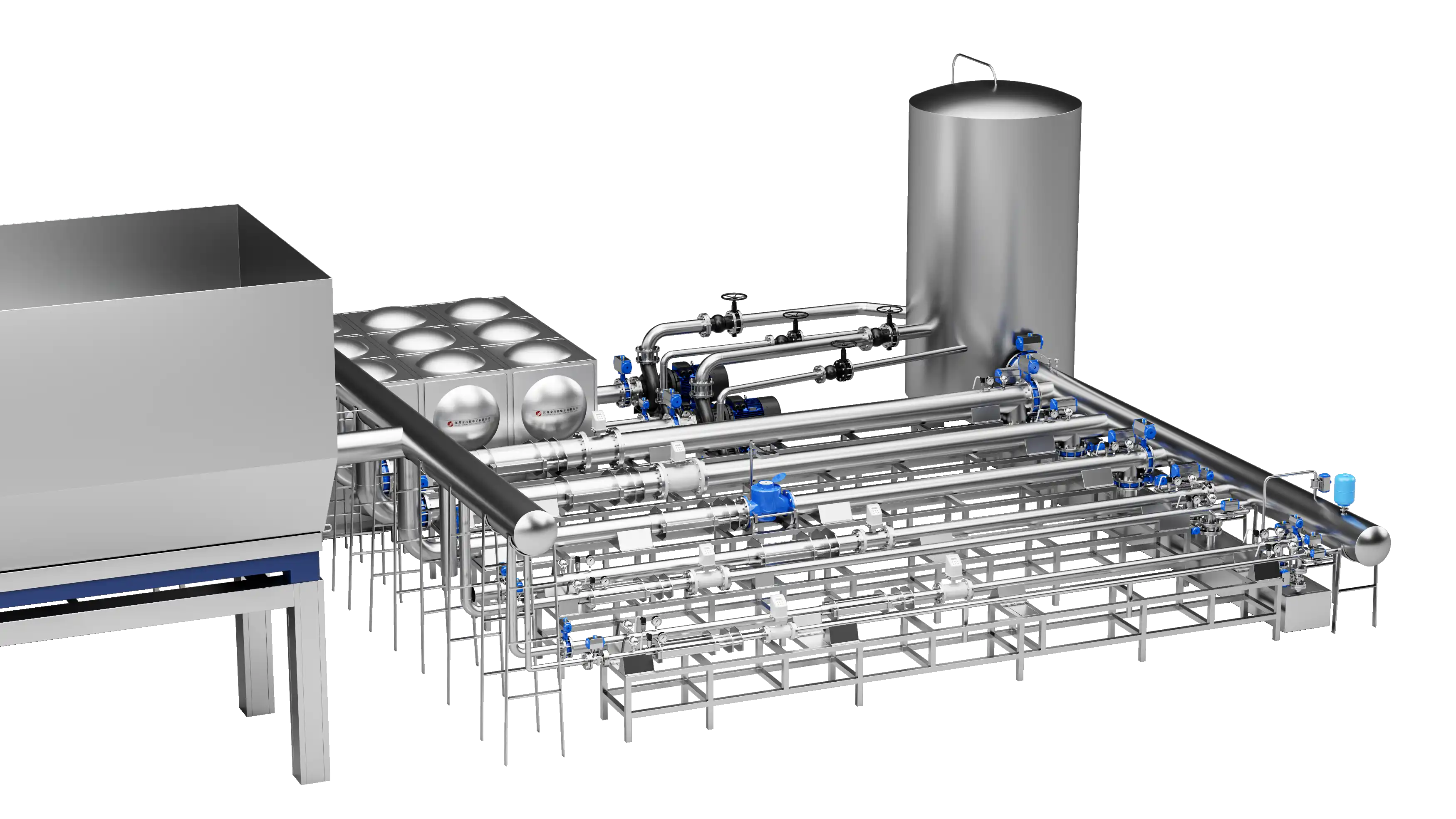

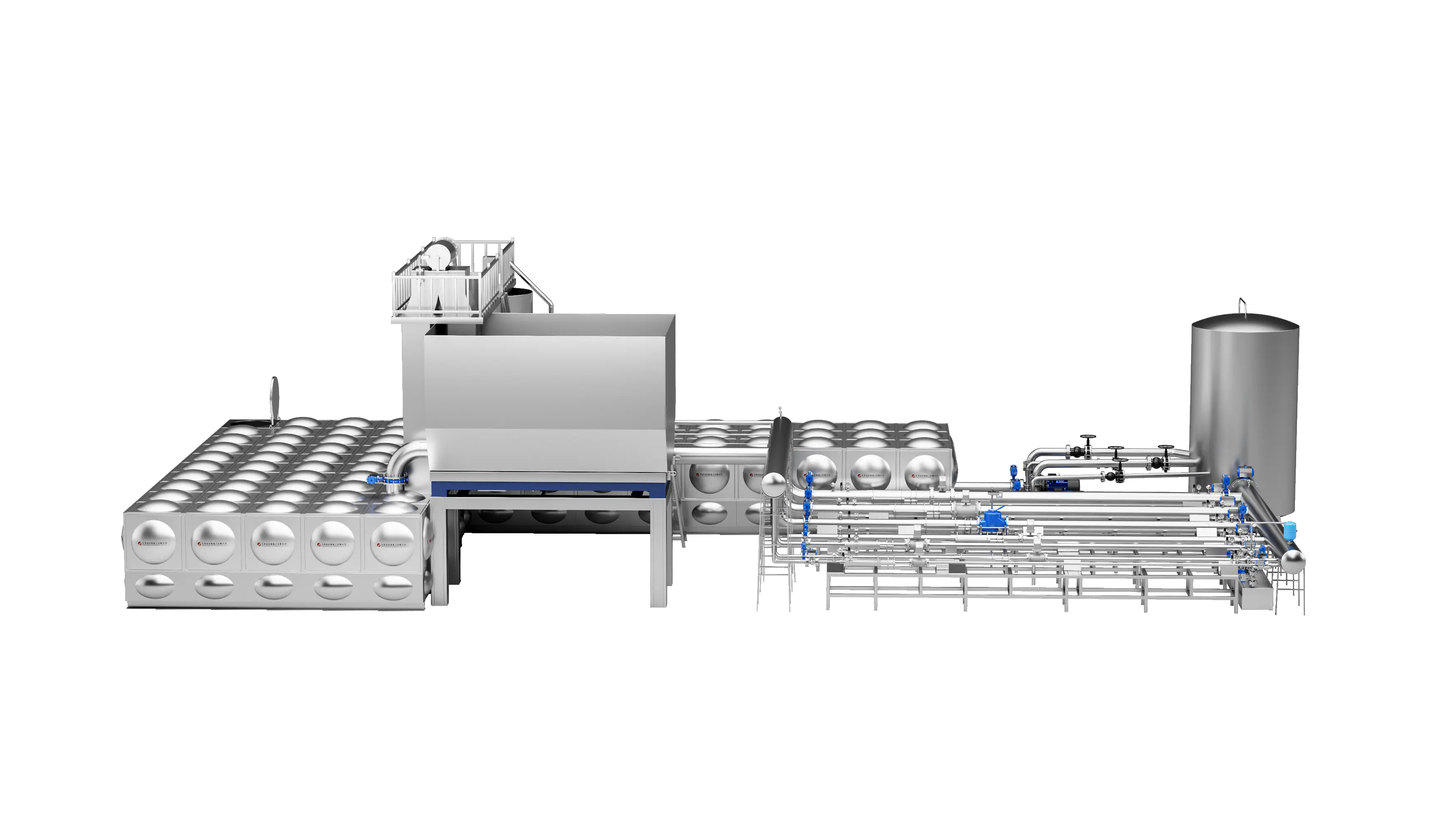

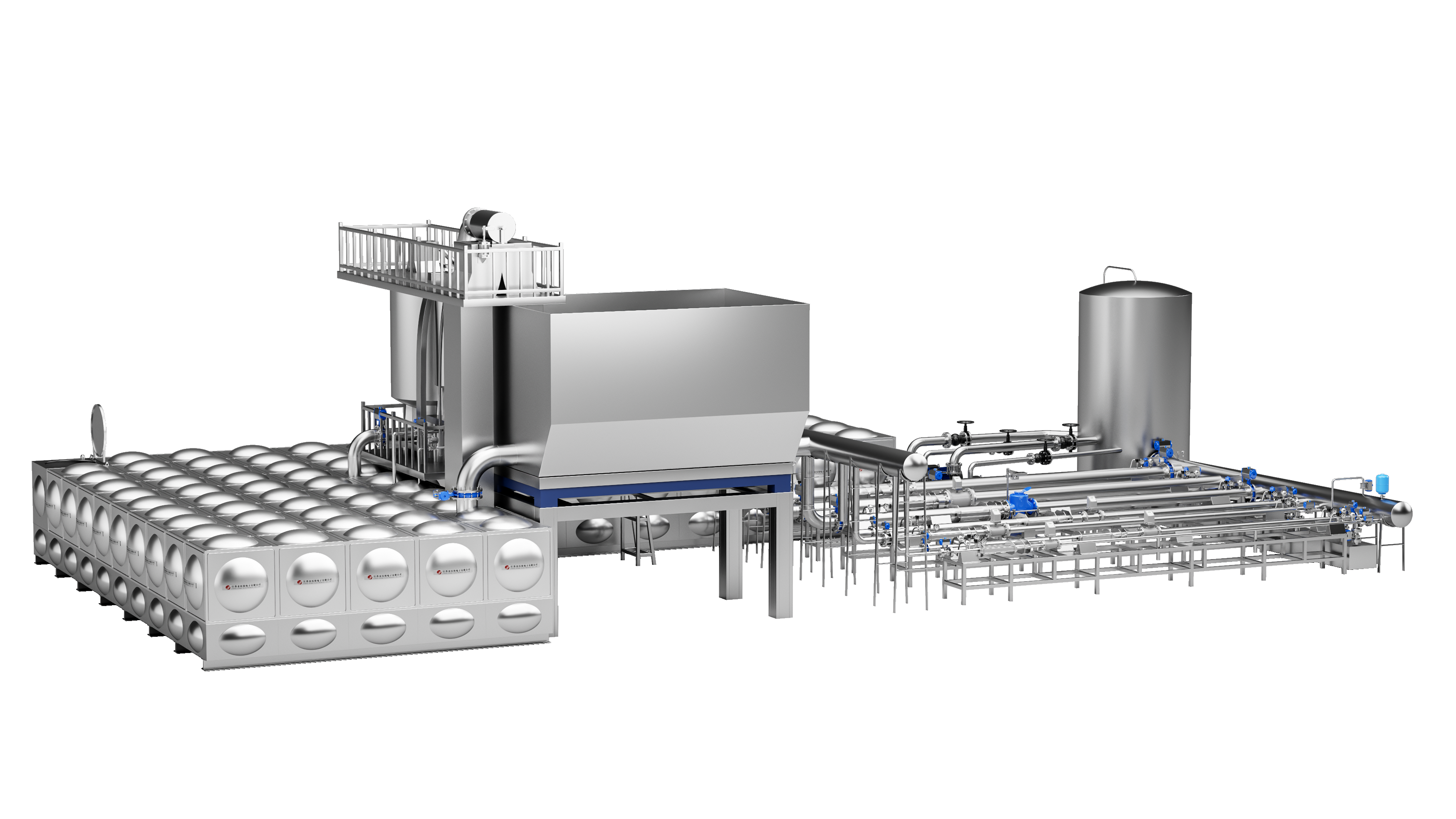

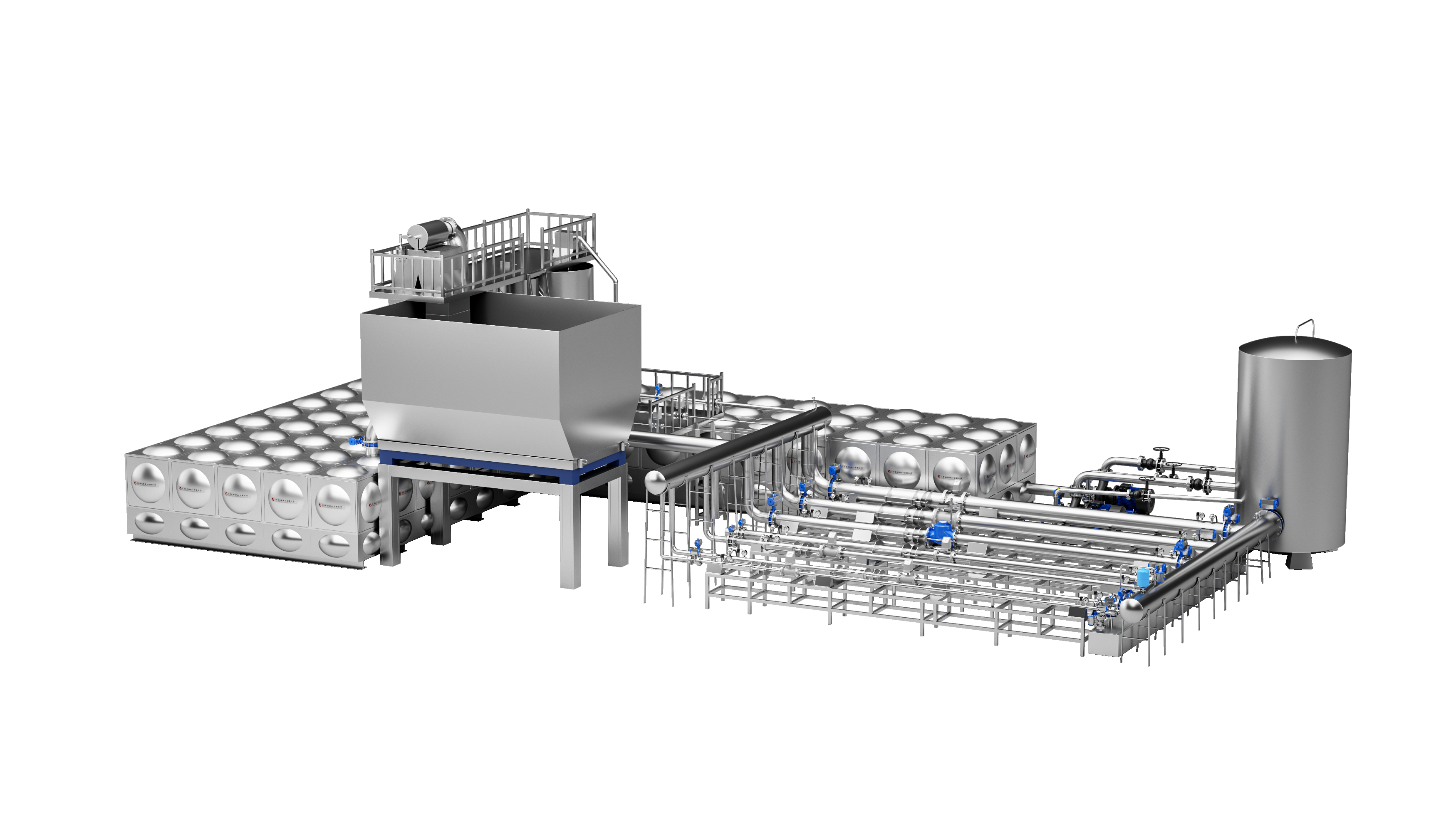

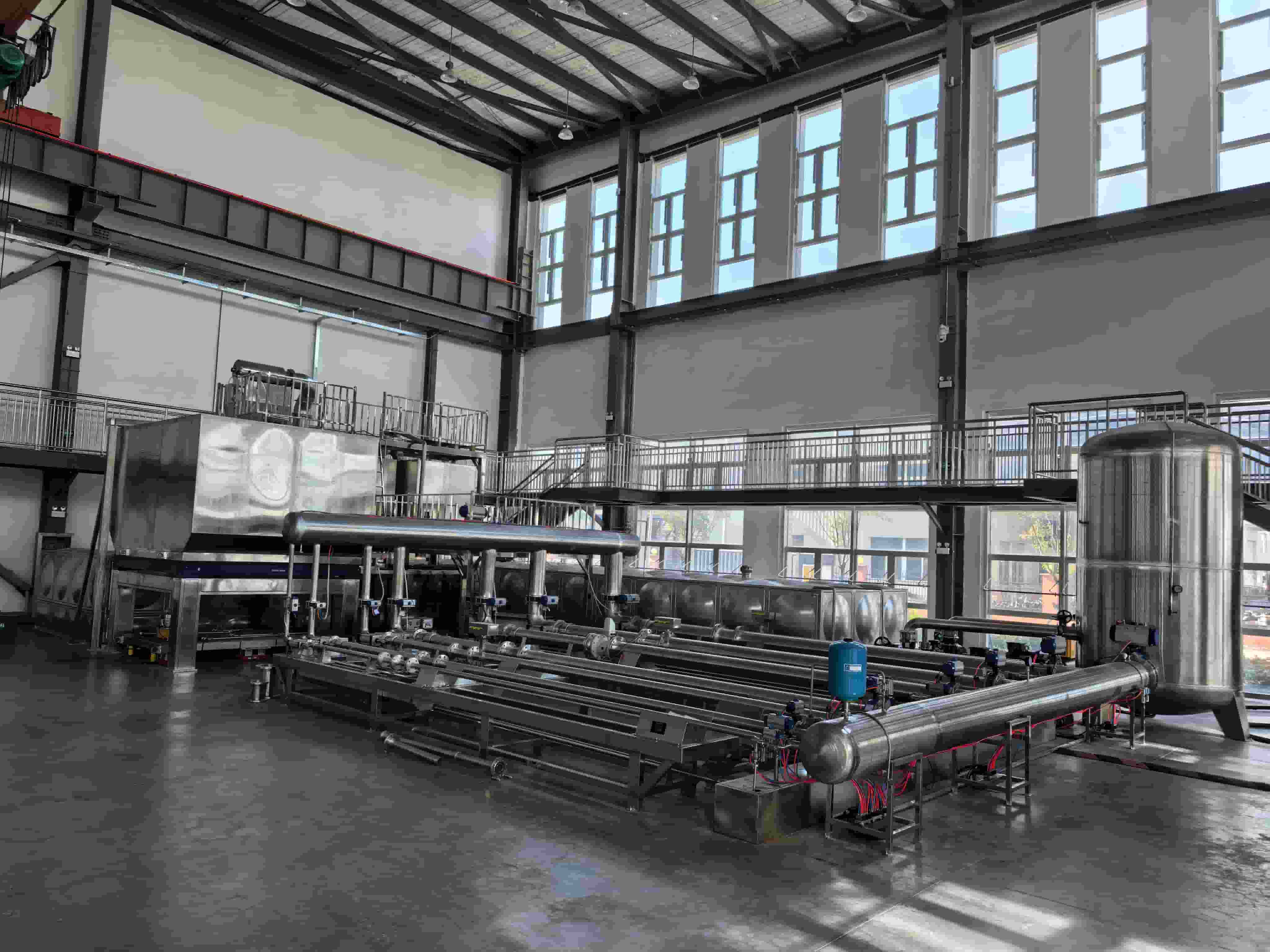

DN50-D300 Fully Automatic Heat Meter Test Bench (Mass Method + Master Meter Method)

Send Inquiry

Product Description

Product Introduction

1. Compact size, small footprint, corrosion resistant, and equipped with wheels for easy movement.

2. 7-inch touchscreen panel allows for setting parameters such as pressurization pressure, vacuuming pressure, pressurization time, and vacuuming water injection time.

3. Pneumatic quick-clamping, faster and more efficient than traditional hydraulic clamping, requiring no external high-pressure water source.

4. One-button start, one-button selection (manual or automatic), safe operation.

5. Suitable for mass production, used in conjunction with fully automatic Water Meter Test Benchs and automatic meter Meter Screwing Machines to improve production cycle time and increase capacity.

6. Low power consumption, energy-saving, requires only one operator, saving labor and time.

Detailed product information: Request from sales personnel

Product Model: JYM-50-300-AZZAH-PS2.0

Device Uncertainty	Urel≤0.2%（k=2）
Flow Stability	1.0% for start‑stop method; 0.2% for other methods
Test Medium	Purified tap water
Operating Humidity	≤ 93% RH
Operating Water Temperature	20 ℃ ± 10 ℃
Water Temperature Fluctuation in Single Measurement	Water temperature fluctuation in a single measurement
Water Fluctuation Coefficient per Cycle	≤ ± 0.1%
Water Source Working Pressure	0.0–0.5 MPa, adjustable
Air Source Working Pressure	0.4–0.7 MPa
Device Operating Temperature	4–50 ℃
Number of Meters Under Test	DN50/65/80/100: 5 pcs \| DN125/150/200: 2 pcs \| DN250: 1 pc \| DN300: 1 pc
Water Pump	1 pc (CM10‑10): H=40 m, Q=10 m³/h, P=2.2 kW 1 pc (TD50‑40G2/4): H=40 m, Q=100 m³/h, P=18 kW 2 pcs (TD300‑40/4): H=36 m, Q=1200 m³/h, P=110 kW
Water Tank	150 m³
Commutator	DN15, DN25, DN50, DN100, DN400 cross‑fork pneumatic open commutator; low noise, high sensitivity; travel difference < 10 ms; uncertainty within 0.002%
Meter Clamping Mechanism	Stainless steel pneumatic meter clamp
Water Meter Seal Test	Pressure range: (0–2.0) MPa
Bore Diameter	Φ50 mm, telescopic stroke ≥ 80 mm
Timer	(10–100) kHz (adjustable); better than 10⁻⁶
Calibration Signal	Pulse signal, f = (0–10) kHz
Vacuum System	Differential pressure vacuum generator; vacuum water filling to keep water meters fully filled
Supported Operation Modes	Fully automatic, semi‑automatic, touchscreen manual operation
Acquisition Equipment	7 sets of pulse collectors, 7 sets of RS232/RS485 serial ports, 7 sets of camera meter collectors
Standard Device	Mass Method + Master Meter Method
Flow Range	（0.010-2100）m³/h
Calibration Method	Start‑stop method	Diversion method	Flow–Time Method	QTY
Electromagnetic Flow Meter Instantaneous Flow Display Advanced (Class 0.5)	DN6 50-500L/H			1
	DN15 320-3200L/H			1
	DN40 2260-22600L/H			1
	DN100 10-200m³/H			1
	DN300 127-1100m³/h			2
Electromagnetic Flow Meter Standard Meter Standard (Class 0.2–0.3)	DN6 50-500L/H			1
	DN15 320-3200L/H			1
	DN40 2260-22600L/H			1
	DN100 10-200m³/H			1
	DN300 127-1100m³/h			2
Electronic Scale Mass Method Standard	①Max=60kg，6000e			1
	②Max=600kg，6000e			1
	③Max=3T，6000e			1
	④Max=30T，6000e			1
	Thermostat Standard for Heat Meter Calibration Device
Standard Platinum Resistance Thermometer	Class 2
Digital Meter	WZPB-2 6½-digit digital meter for temperature acquisition
High Temperature Thermostatic Bath	WL-L1A (High Temp. Bath) Measuring range: (4 – 95) ℃ Max. working temperature difference: 0.03 ℃ Average temperature difference: 0.015 ℃
Low Temperature Thermostatic Bath	WL-L1B (Low Temp. Bath) Measuring range: (room temperature – 95) ℃ Max. working temperature difference: 0.03 ℃ Average temperature difference: 0.015 ℃
Heating Device	Customized according to the water tank size.
