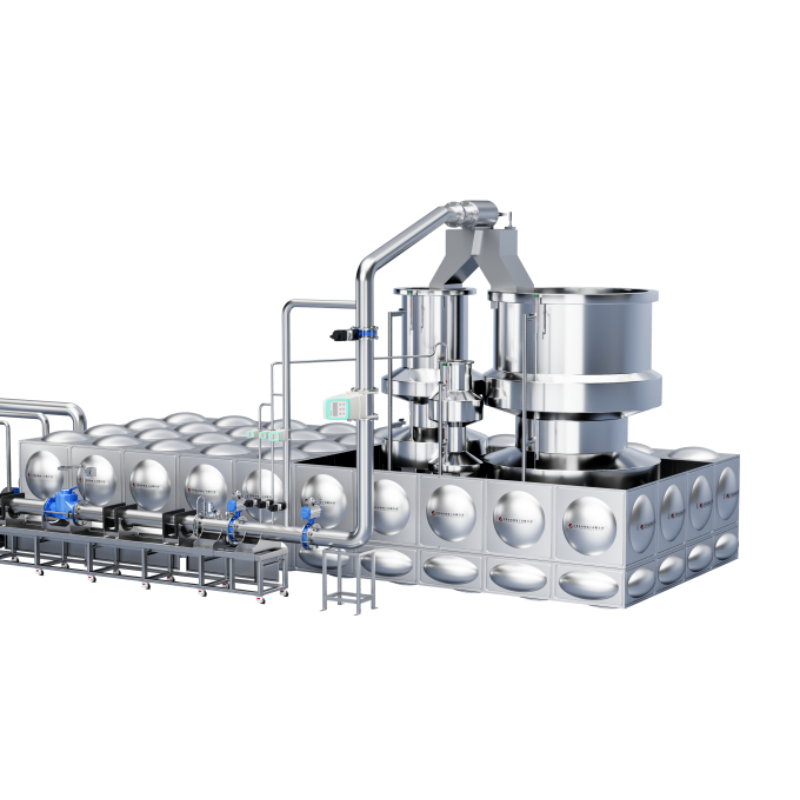

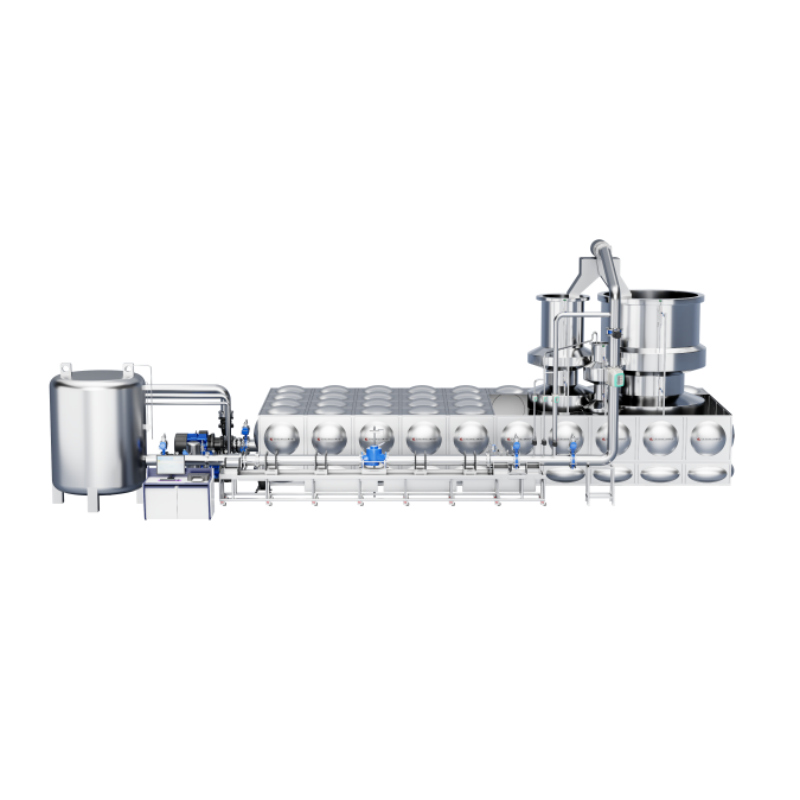

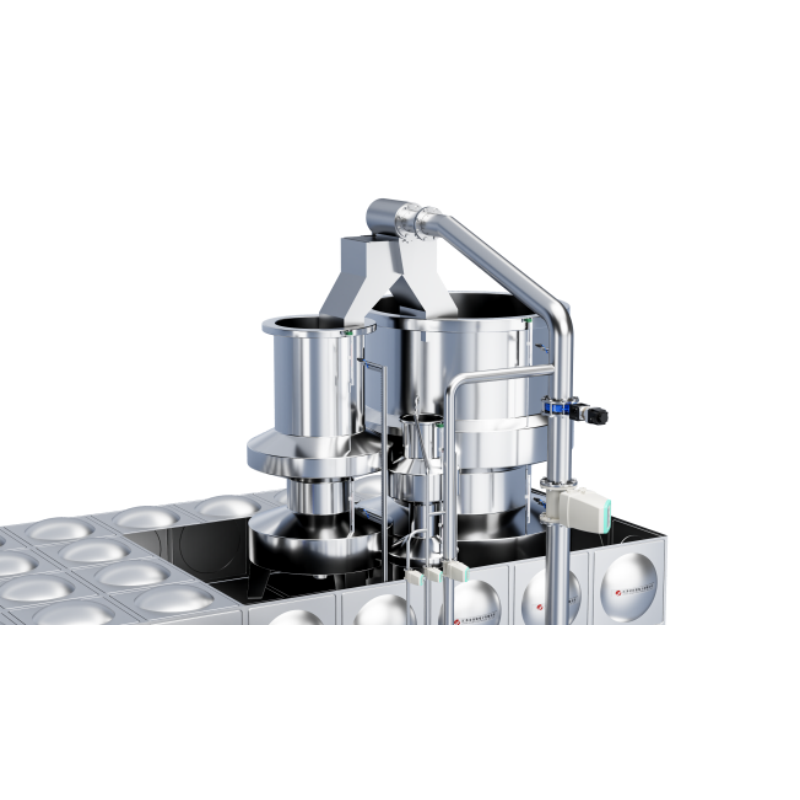

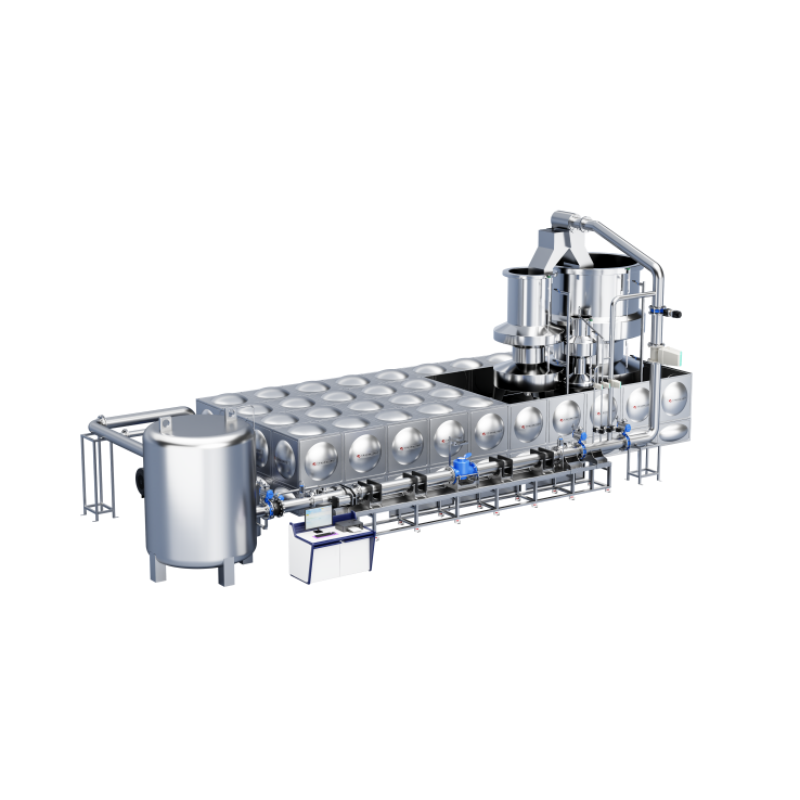

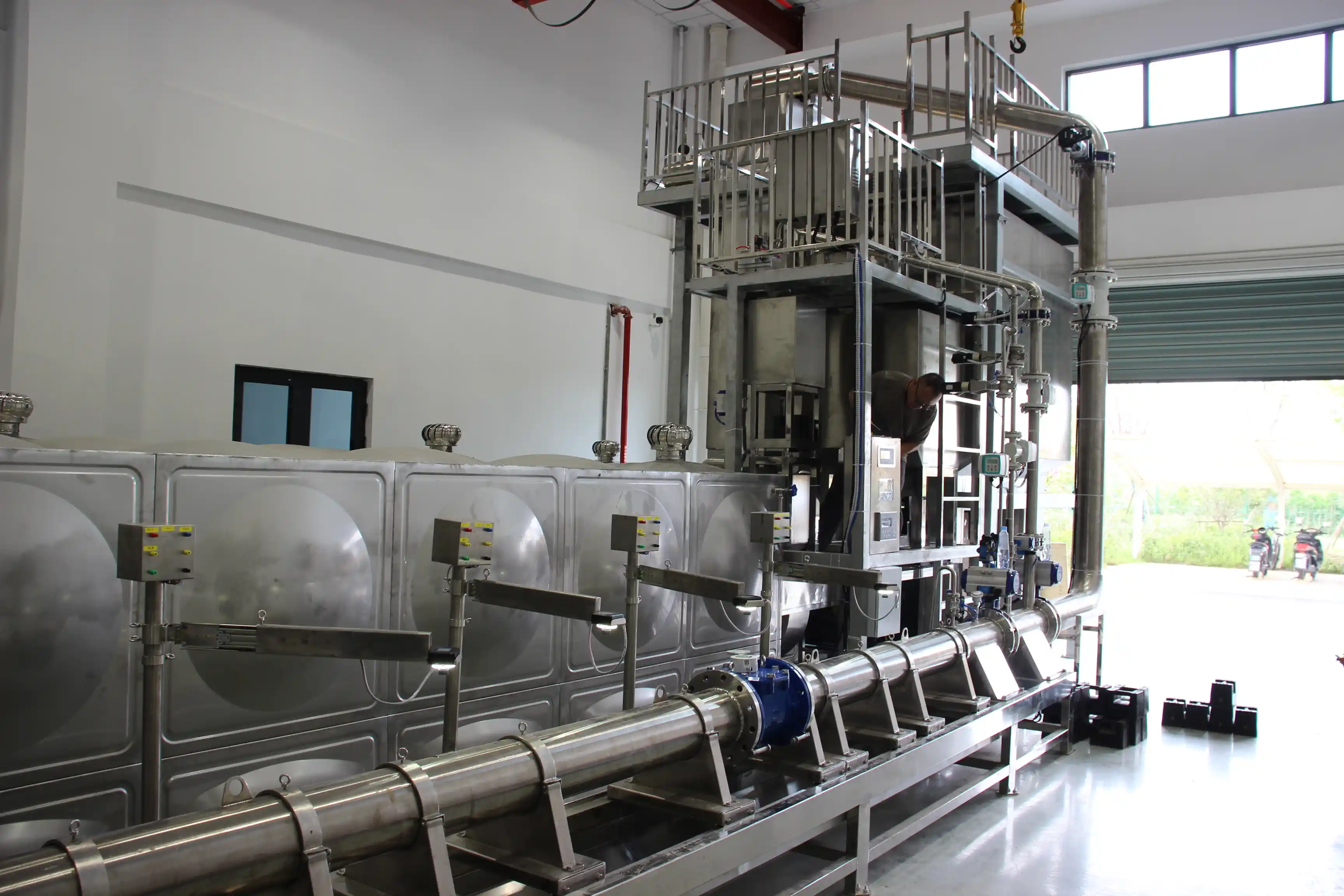

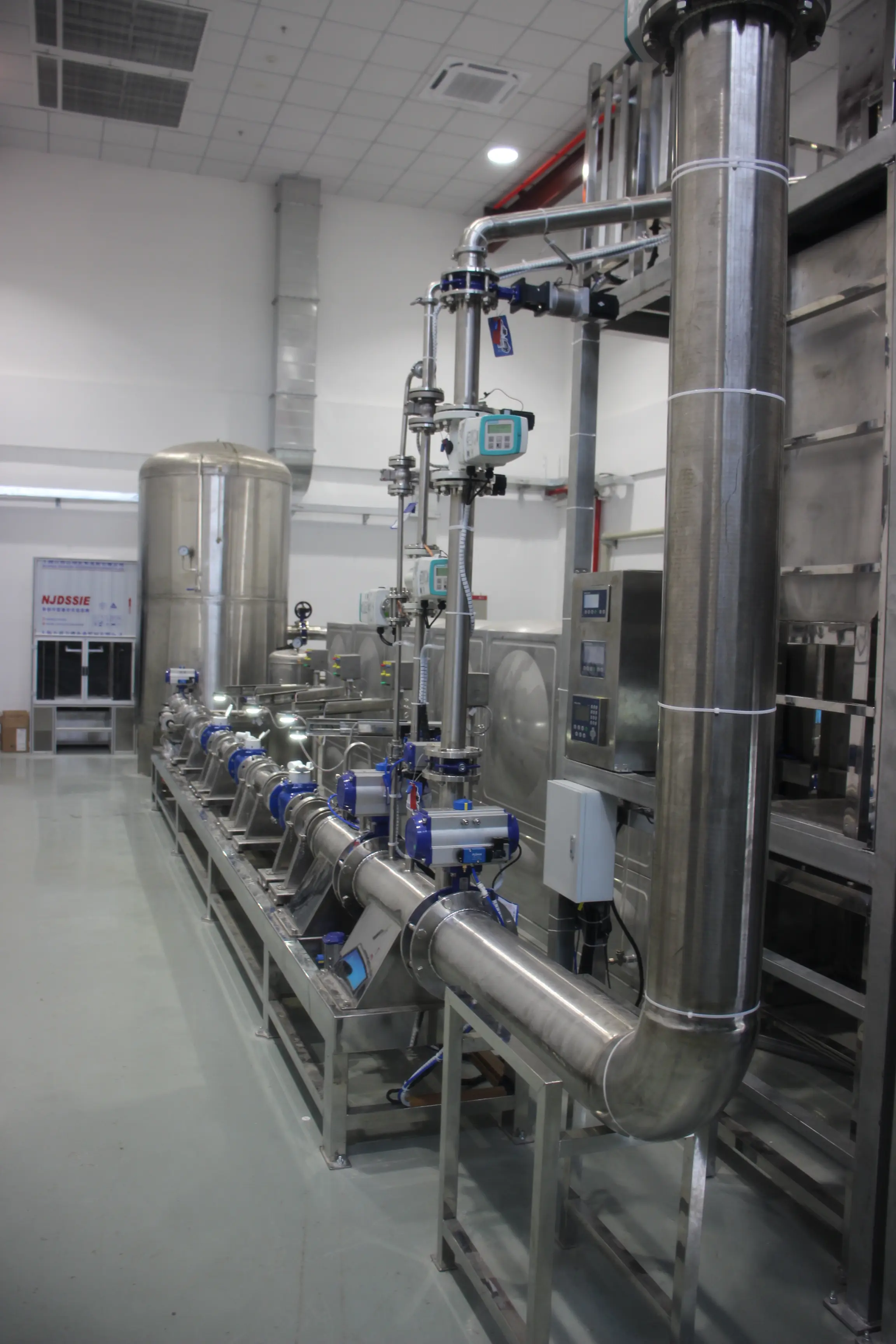

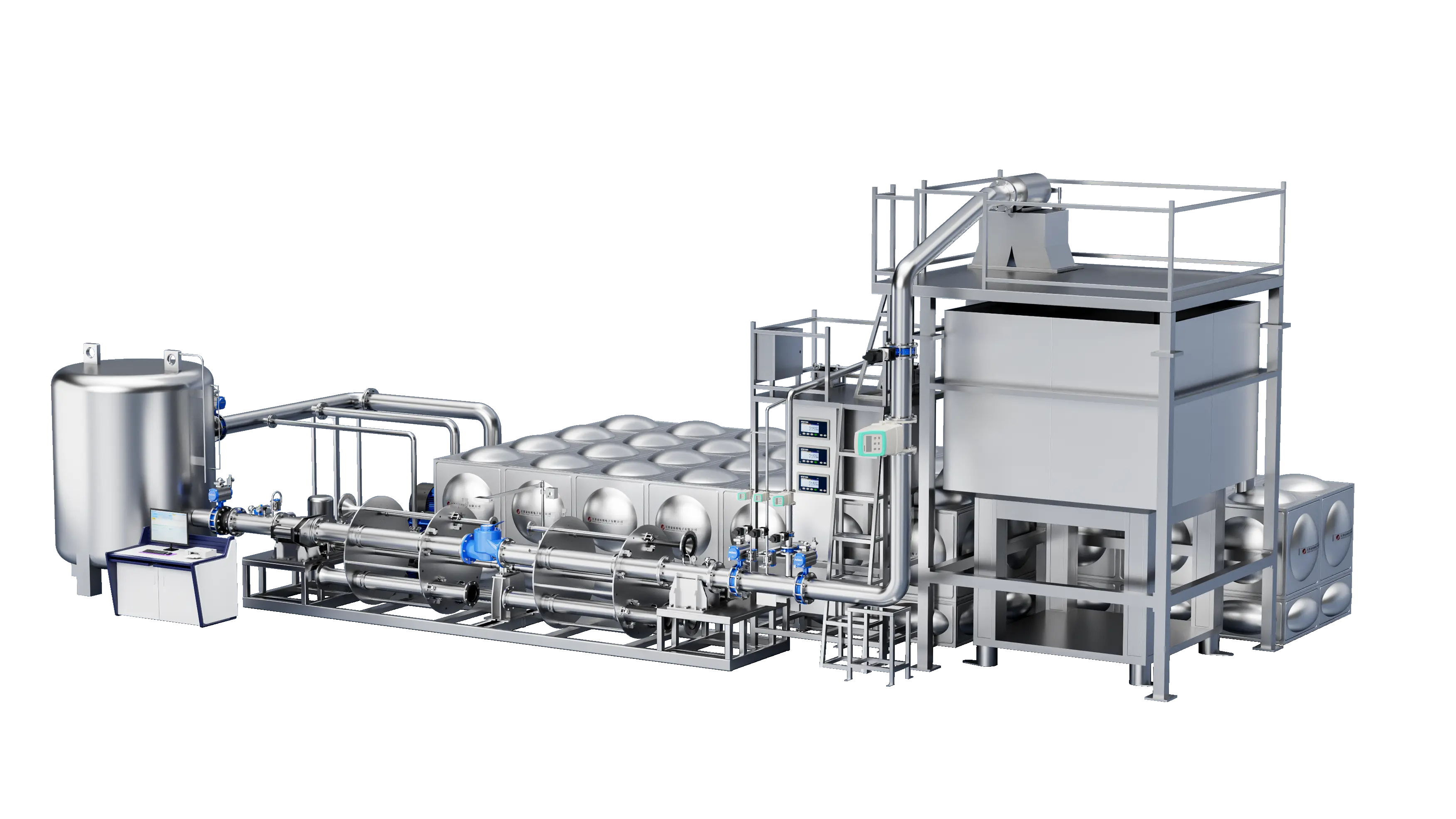

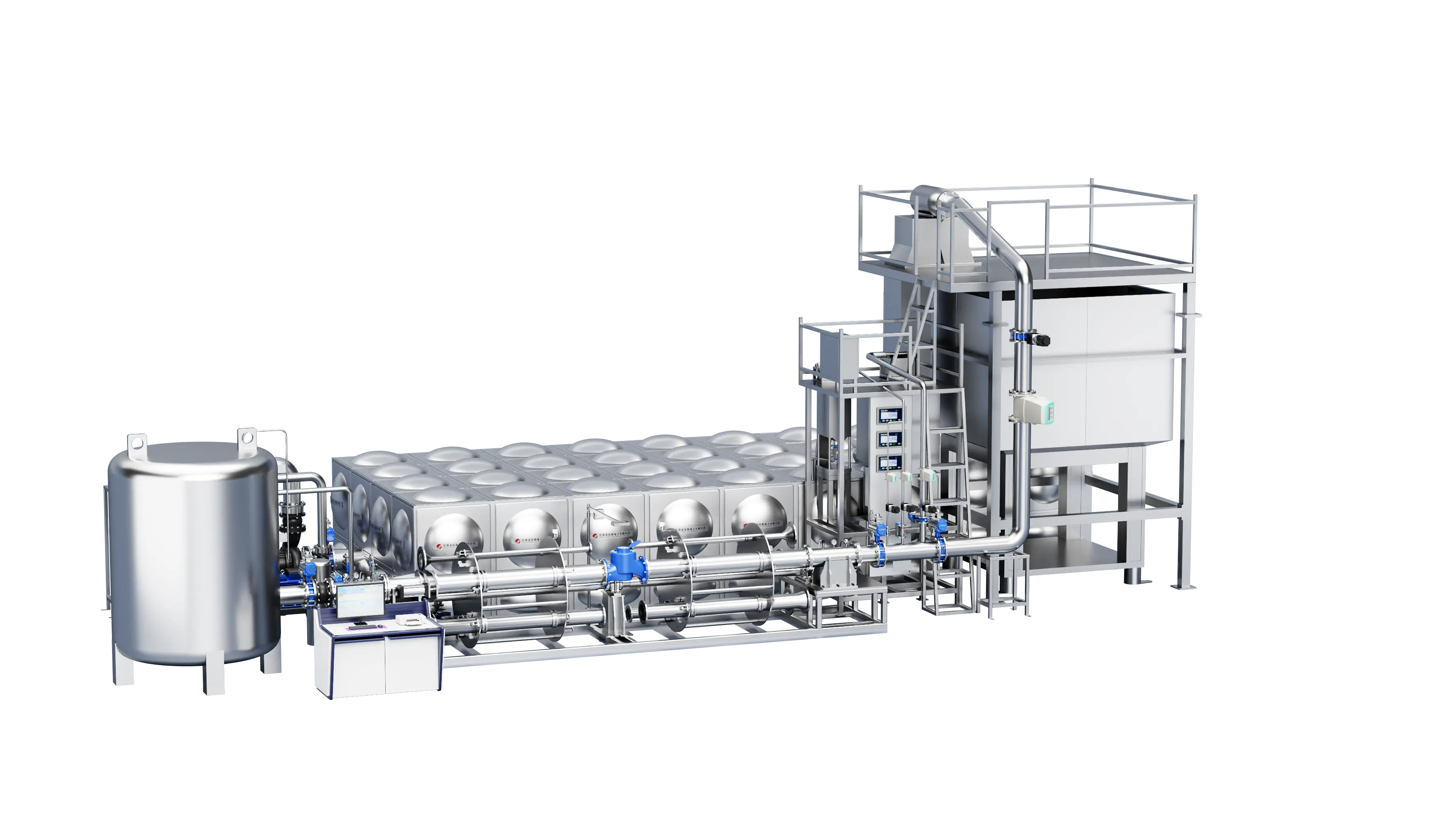

DN50-D200 Fully Automatic Heat Meter Test Bench (Tube Replacement Type - Volumetric Method)

Product Introduction

1. High production efficiency;

2. Fast input method: Wireless barcode scanner input for form numbers, fast, accurate, and convenient;

3. Energy saving and consumption reduction: Saves water, electricity, and labor;

4. Compact size: Saves space, fully automated, shared network, and saves auxiliary materials;

5. Novel structure: 304 stainless steel piping, novel and elegant appearance.

6. Detailed product information: Request from sales personnel.

Product Models: JYM-50-200-5-AW-HS4.0, JYM-50-200-2-AWS-HS4.0

Functional Parameter Table

Verification Medium: Pure tap water

Testing Methods: Reversing method, start-stop method, standard meter method

Type of Meter Under Test: Ordinary mechanical water meter, ultrasonic water meter, smart water meter, electromagnetic flow meter

Meter Diameter/Quantity Under Test: DN50 1 unit, DN80 1 unit, DN100 1 unit, DN150 1 unit, DN200 1 unit

Reversing Unit: Cross-type pneumatic open reversing unit

Water Meter Injection System: Differential pressure vacuum generator

Water Meter Acquisition System: Mobile phone, camera, laser, infrared, RS232, pulse

Meter Clamping Mechanism: Tube-changing type

Standard Instrument: Electronic scale, standard meter

Liquid Level Acquisition Device: Hikvision camera

Performance Parameter Table

Device Uncertainty Urel≤0.5‰ (K=2)

Flow stability: Start-stop method 1.0%, others: 0.2%

Flow range: (0.03~630) m³/h

Water pumps:

TD100-33G/2100 m³/h 30m (two units)

TD200-32/4400 m³/h 32m (two units)

TD50-32G/25 m³/h 34.6m (one unit)

Volume meter:

50L-100L

1000L-2000L

5000L-12000L

Water source working pressure: 0.3-0.5Mpa

Adjustable, air source pressure: 0.4-0.7MPa

Standard gauge (instantaneous flow display device) (Siemens/E+H/Yokogawa/Köln)

DN10:20-500L/H

DN40:2260-22600L/H

DN100 10-200m³/H

DN200 56.55-630m³/H
