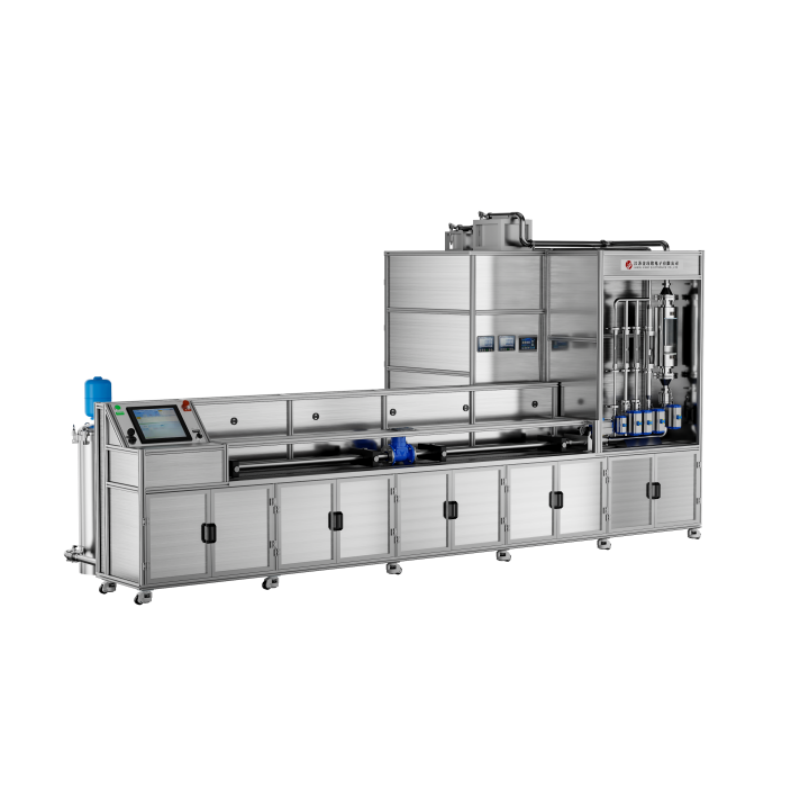

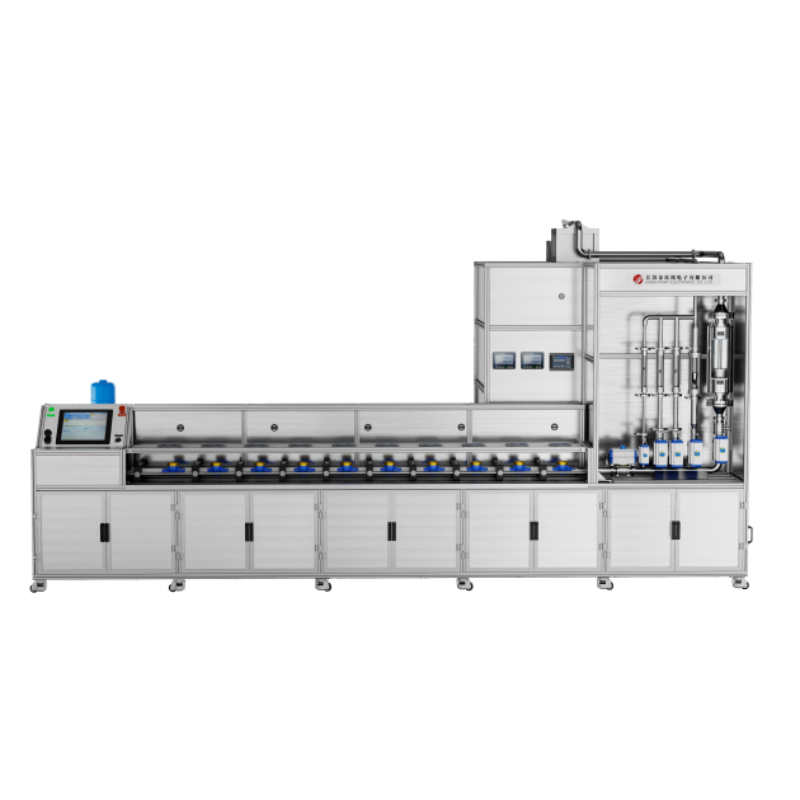

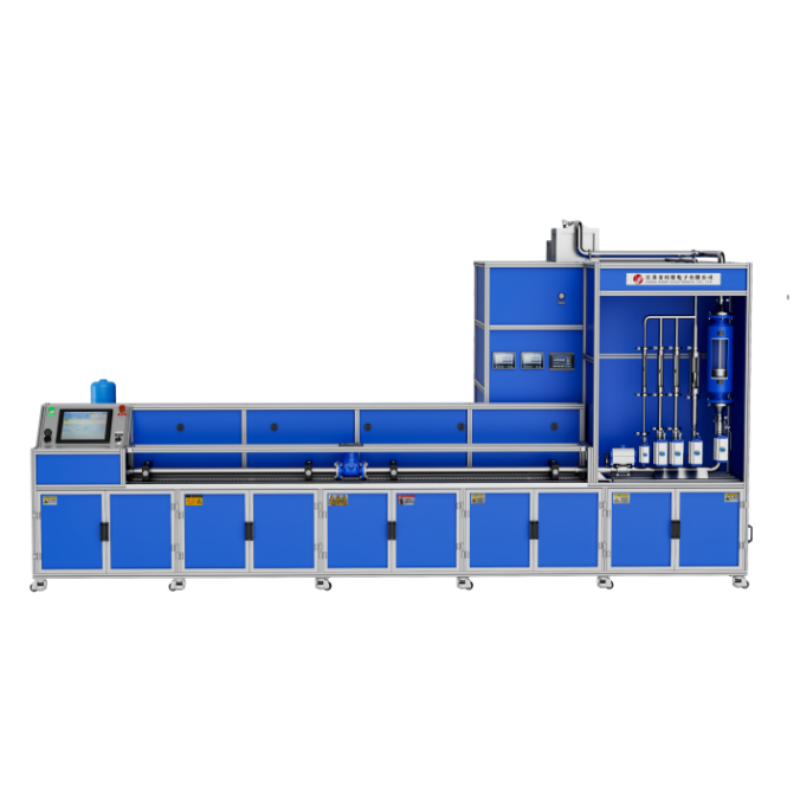

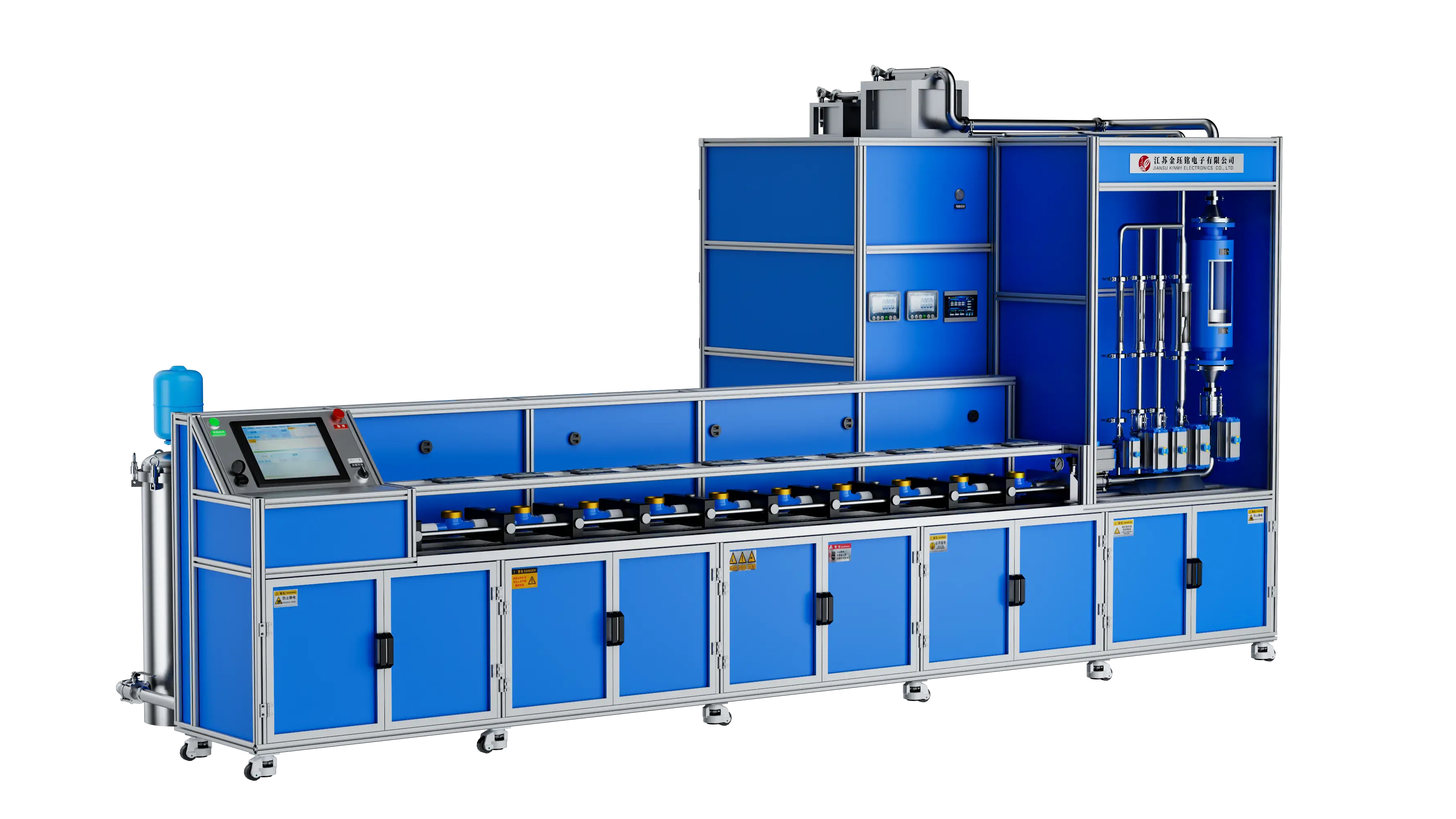

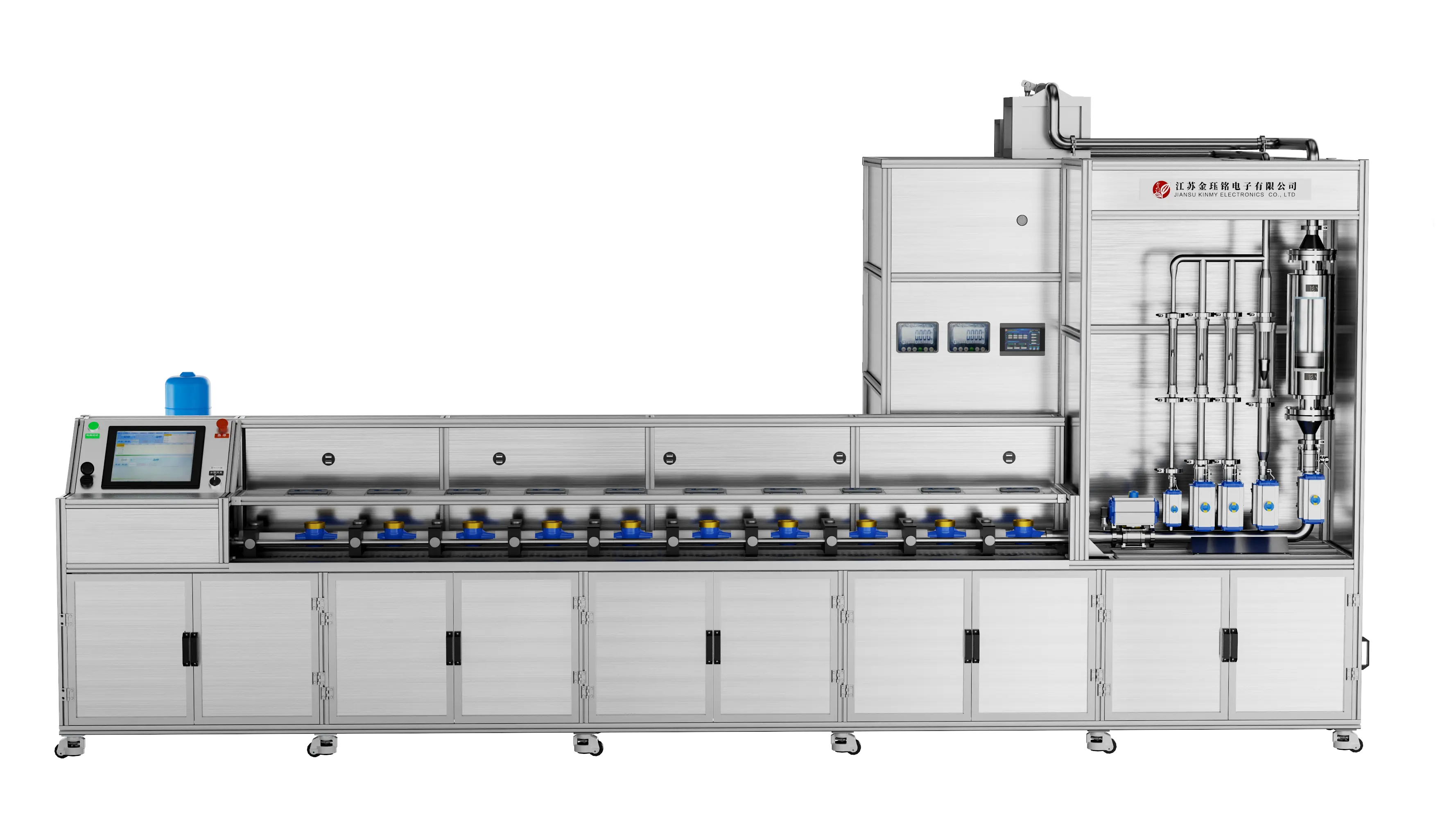

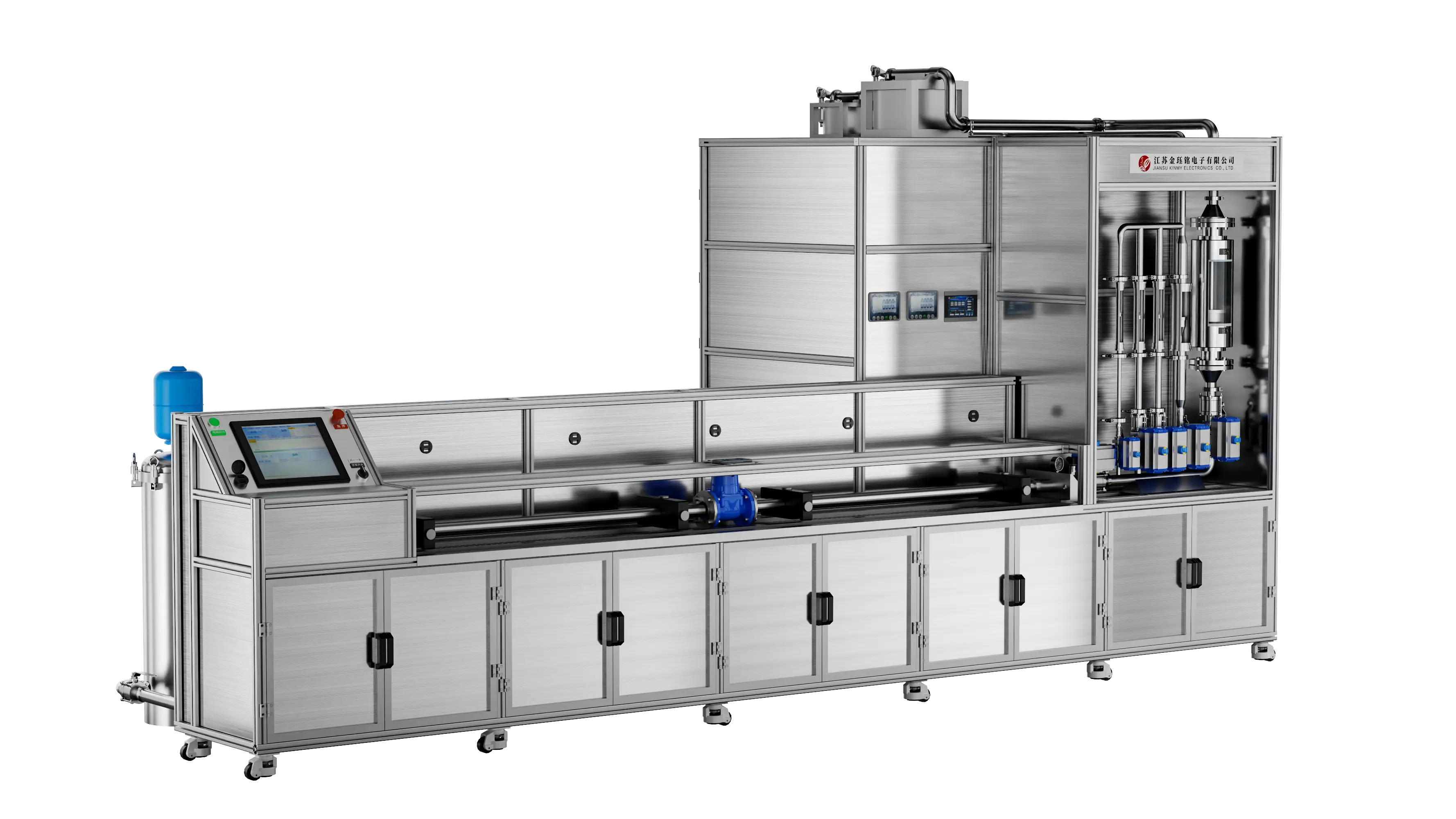

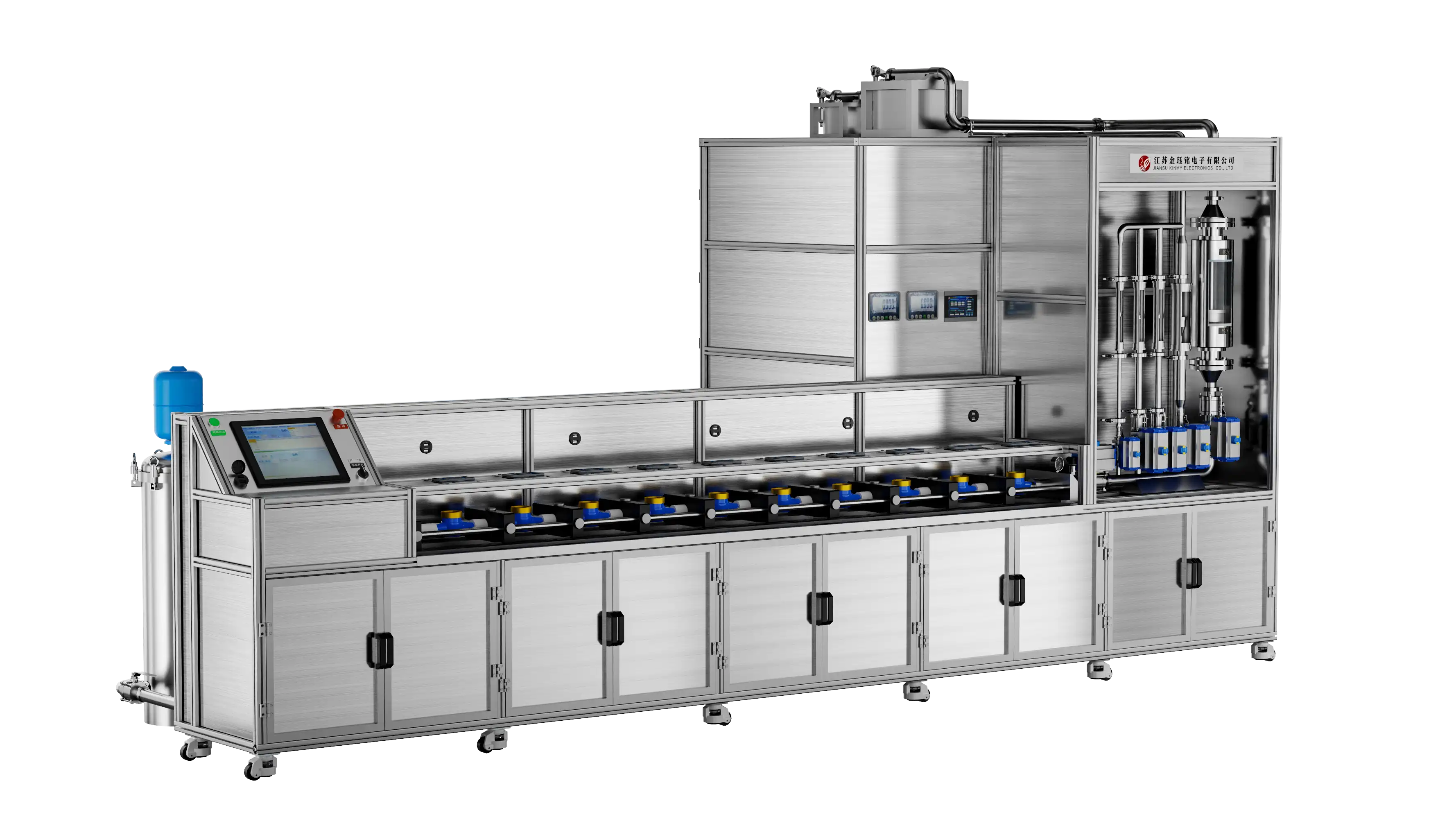

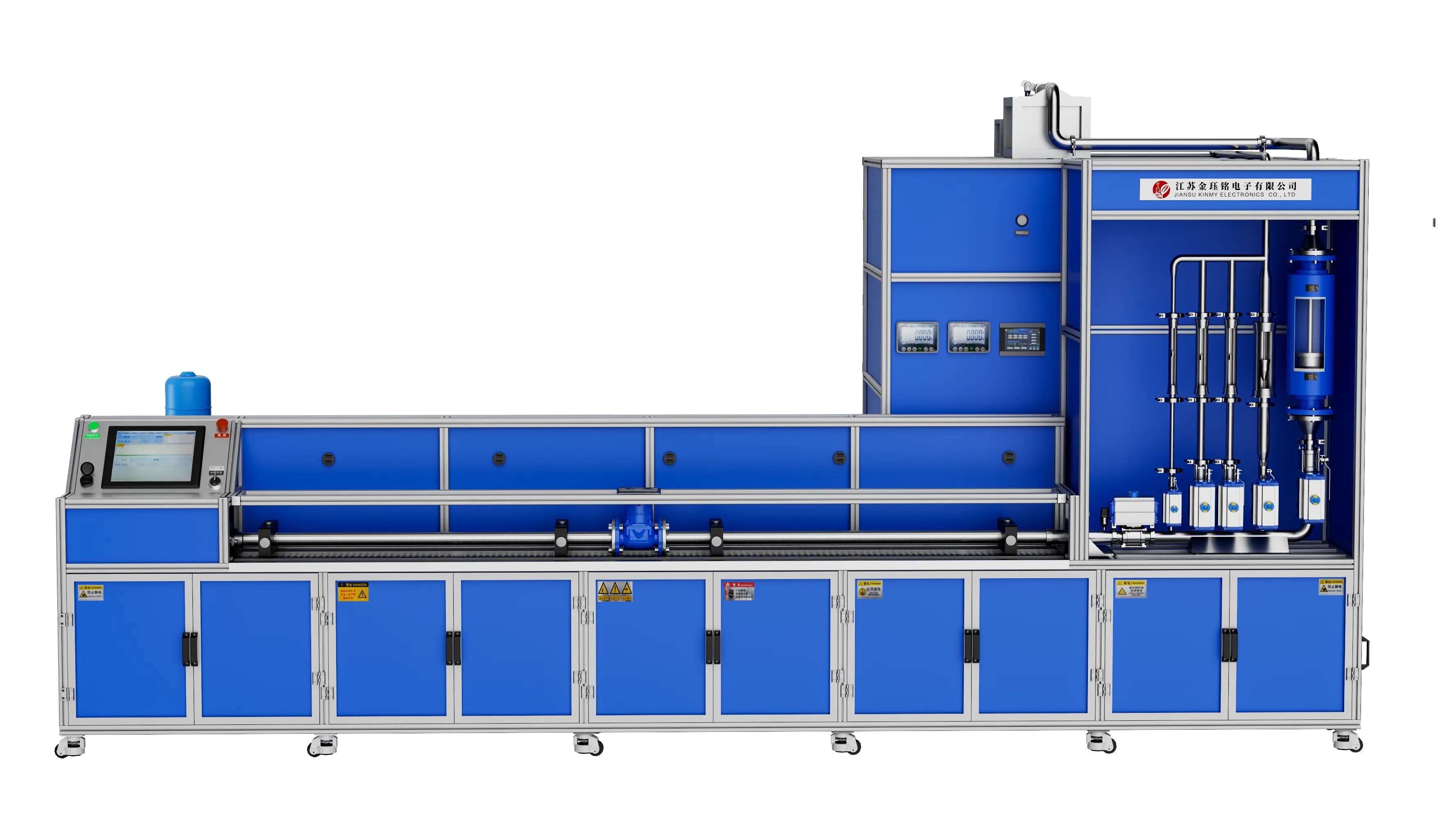

DN15-D50 Fully Automatic Heat Meter Test Bench (Horizontal Type)

Product Introduction

1. High Production Efficiency: 300 water meters can be tested in eight hours.

2. Fast Input Method: Wireless barcode scanner input of meter numbers, fast, accurate, and convenient.

3. Energy Saving and Consumption Reduction: Saves water, electricity, and labor.

4. Compact Size: Saves space, fully automated, shares a network, and saves auxiliary materials.

5. Novel Structure: European standard aluminum profile frame, 304 stainless steel piping, novel and stylish appearance. 6. Detailed Product Information: Request from sales personnel

Product Models: JYM-15-50-10-AWH-HS4.0, JYM-15-50-10-AWSH-HS4.0, JYM-15-50-07-AWHP-HS4.0

Functional Parameter Table

Testing Medium: Pure tap water

Testing Method: Dual-time method, start-stop method

Test Meter Type: Heat meter, ordinary mechanical water meter, ultrasonic water meter, smart water meter

Test Meter Diameter/Quantity: DN15 10 units, DN20 8 units, DN25 6 units, DN32 1 unit, DN40 1 unit, DN50 1 unit

Commutator: Cross-type pneumatic open commutator

Water meter durability testing and water injection system: (0-3.2Mpa) differential pressure vacuum generator

Water meter acquisition system: Mobile phone, camera, laser, infrared, RS232, pulse

Meter clamping mechanism: Single meter independent pneumatic clamping device

Standard: Electronic scale, standard meter

Flow display device: Standard meter

Standard thermostatic device: High-precision platinum resistance thermometer, thermostatic bath, digital meter

Performance parameter table

Device uncertainty: U≤0.2%(K=2)

Flow stability: Start-stop method 1.0%, others: 0.2%

Flow range: (0.004~40)m³/h

Water pump: Flow rate 70m³/h, head 40m

Electronic scale resolution: ①Max=30kg, 6000e ②Max=600kg, 30000d

Water source working pressure: 0.3-0.7Mpa

Adjustable; Air source pressure: 0.4-0.7MPa

Standard gauge (instantaneous flow display device):

DN50 2-40m³/h

DN25 0.55-17.5m³/h

DN10 0.085-2.8m³/h

DN2 0.003-0.11m³/h
