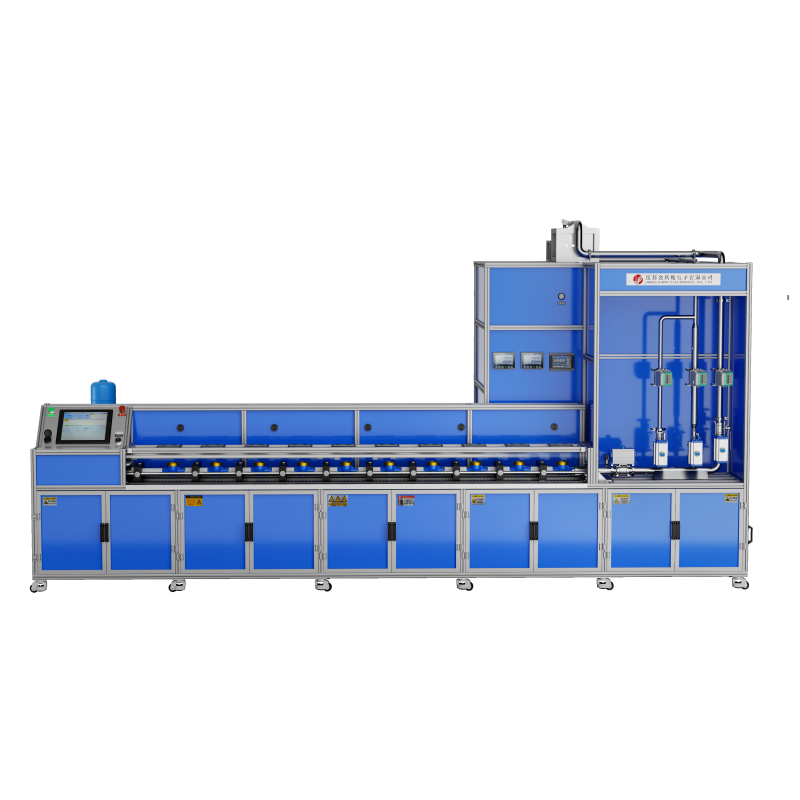

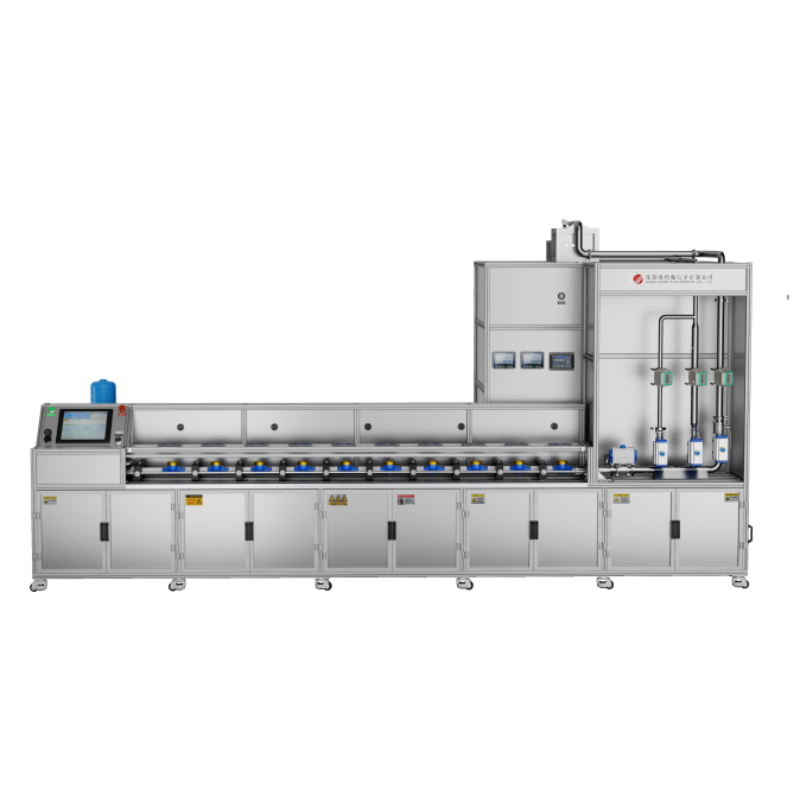

DN15-DN25 Fully Automatic Water Flow Rate Test Bench

Product Introduction

1. High Production Efficiency: 200 water meters can be tested in eight hours.

2. Fast Input Method: Wireless barcode scanner input of meter numbers—fast, accurate, and convenient.

3. Energy Saving and Consumption Reduction: Saves water, electricity, and labor.

4. Compact Size: Saves space, fully automated, shares a network, and reduces auxiliary materials.

5. Novel Structure: European standard aluminum profile frame, 304 stainless steel piping, novel and stylish appearance.

Detailed product information: Please request from sales personnel.

Product Model: JYM-15-25-10-AZ-HS4.0

Technical Parameters:

1. Nominal Diameter (mm): DN15-25;

2. Meter Diameter to be Tested: DN15, DN20, DN25;

3. Number of Meters to be Tested: 10 DN15 meters in series, 10 DN20 meters in series, 5 DN25 meters in series;

4. Flow Range: 0.04-8 m³/h;

5. Dial Recognition Method: Camera recognition with red pointer + sensitive pointer, using a customized high-definition pixel smart scale from a major industrial brand;

6. Testing Method: Mass scale, 1 unit each of 150kg and 15kg;

7. Material: Industrial aluminum profile and 304 stainless steel composite;

8. Water Source: Well-known brand water pump. The pump comes with a dedicated base;

9. Pump Control Cabinet: Variable frequency drive;

10. Piping Connection: Food-grade 304 stainless steel;
