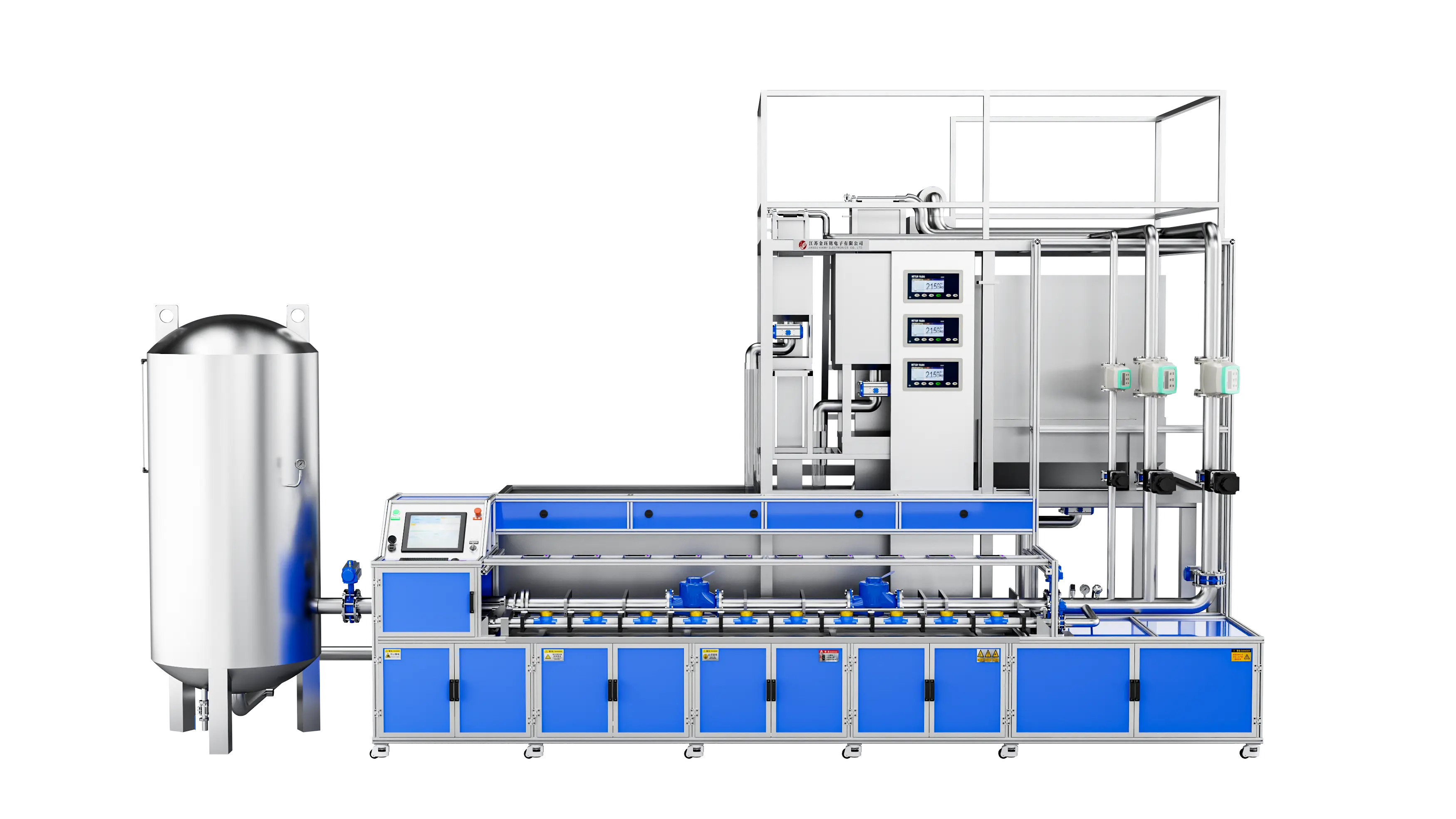

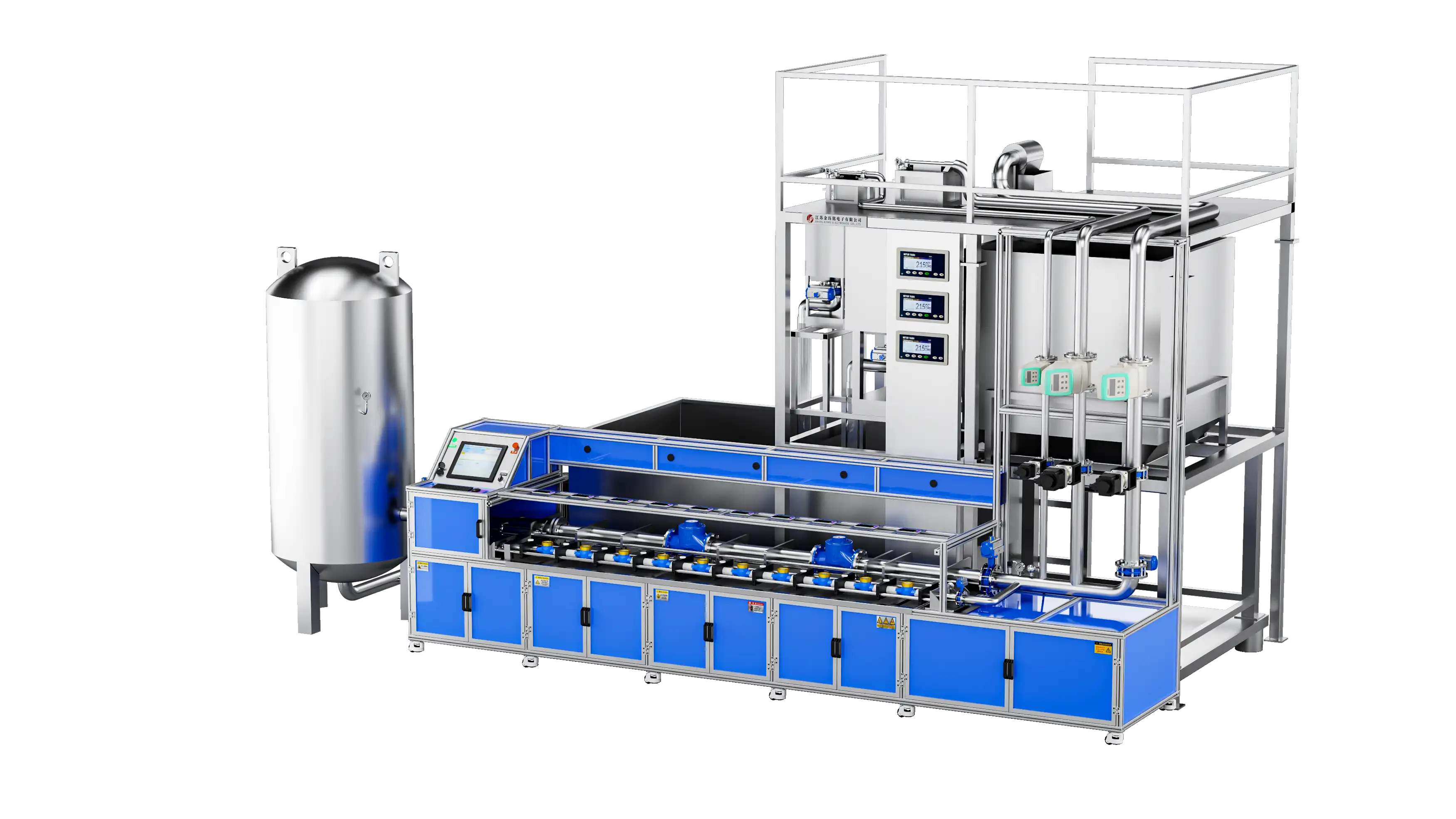

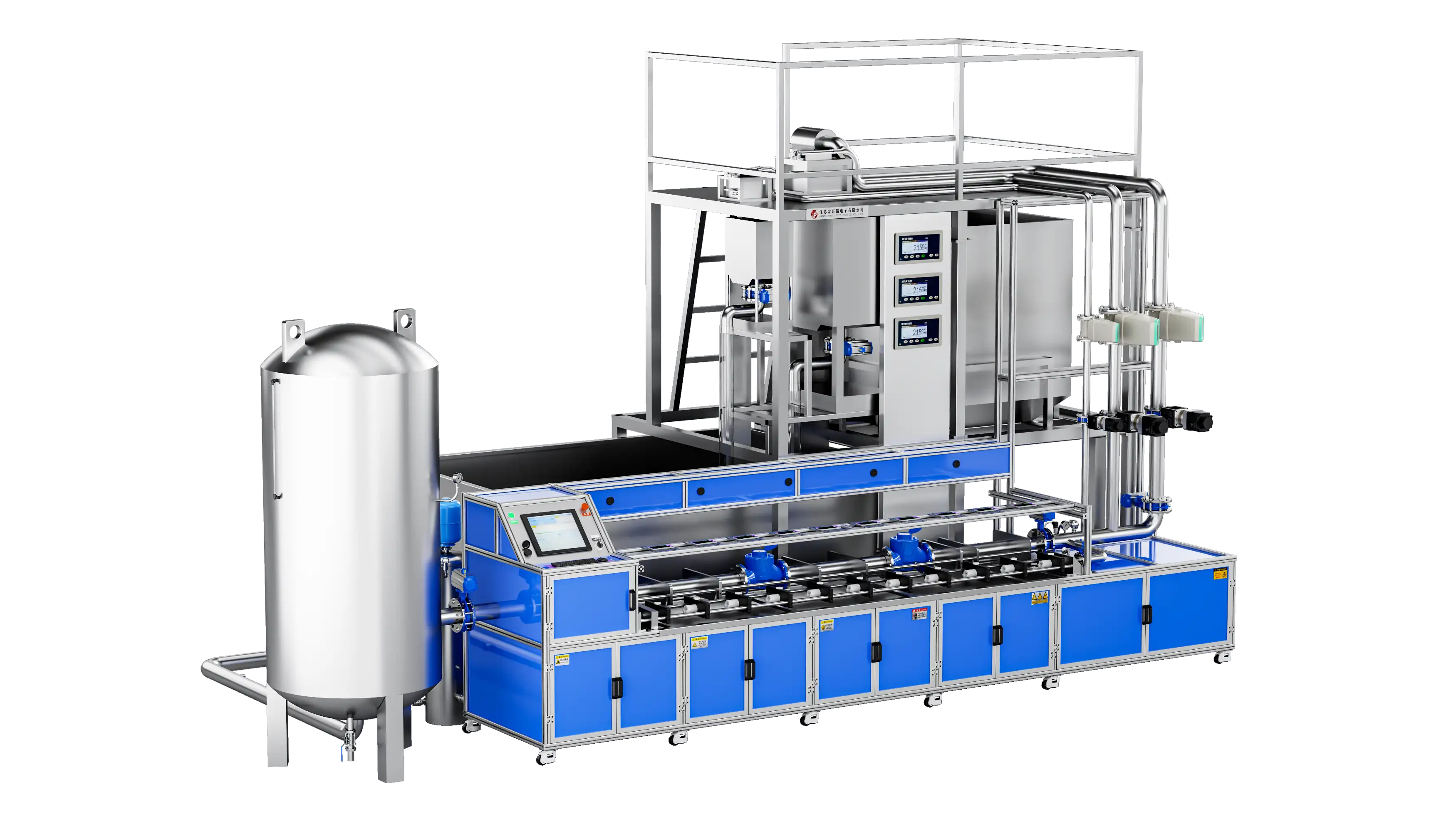

DN15-D100 Fully Automatic Water Flow Calibration Device(Volumetric Method+Standard Meter Method)

Novel Structure: European standard aluminum profile frame, 304 stainless steel piping, novel and stylish appearance. Detailed product information: Please request from sales personnel.

Send Inquiry

Product Description

	Water Flow Calibration Device, Urel ≤ 0.05% (k=2)
Flow Stability	1.0% for Start-Stop Method; 0.2% for Other Methods
Calibration Medium	Pure Tap Water
Operating Humidity	Humidity: ≤ 93% RH
Operating Water Temperature	20℃ ± 10℃
Water Temperature Fluctuation in Single Measurement	Water Temperature Fluctuation in Single Measurement
Water Fluctuation Coefficient in Single Cycle	≤ ±0.1%
Water Source Operating Pressure	0.0-0.5 MPa (Adjustable)
Air Source Operating Pressure	0.4-0.7 MPa
Device Operating Temperature	4˜50℃
Number of Meters Under Test	DN15: 10 units \| DN20: 8 units \| DN25: 6 units \| DN40, DN50, DN65: 5 units \| DN80, DN100: 3 units
Water Pump	H=20 m; Q=2 m³/h; P=0.5 kW, 1 unit \| H=30 m; Q=40 m³/h; P=7.5 kW, 1 unit \| H=30 m; Q=180 m³/h; P=22 kW, 1 unit
Water Tank	15000 L
Reverser	DN25 & DN100 Cross-Type Pneumatic Open Reversers, Low Noise & High Sensitivity, Stroke Difference < 10 ms, Uncertainty ≤ 0.002%
Meter Clamping Mechanism	Dual-Cylinder External-Push Tandem Meter Clamping Device; Single Pneumatic Clamping Device for 10 Front & 5 Rear Positions
Water Meter Tightness Test	Pressure Range: (0˜2.0) MPa
Nominal Diameter	Φ50 mm, Telescopic Stroke ≥ 80 mm
Timer	(10-100) kHz (Adjustable); Accuracy Better Than 10⁻⁶
Calibration Signal	Pulse, f = (0˜10) kHz
Vacuum System	Differential-Pressure Vacuum Generator, Vacuum Priming, Maintains Water Meters in Full-Water State
Supported Test Modes	Fully Automatic, Semi-Automatic, Touchscreen Manual
Data Acquisition Devices	5 Mobile Phones (50 MP Pixels, 8G/128G Storage)
Standard Device	Volumetric Method+Standard Meter Method
Flow Range	（0.010-130）m³/h
Calibration Methods	Start-Stop Method	Reversal Method	Flow-Time Method	Quantity
Electromagnetic Flowmeter Standard Meter Standard (0.2-0.3 Grade)	DN2：3-90L/H			1
	DN10：20-500L/H			1
	DN25：500-8000L/H			1
	DN50：8000-40000L/H			1
	DN100 10-200m³/H			1
Volumetric Measuring Vessel Volumetric Method Standard	10L-20L			1
	50L-105L			1
	300L-500L			1
	1500L-3000L			1
This plan is for reference only; customized solutions can be provided according to customer requirements.
