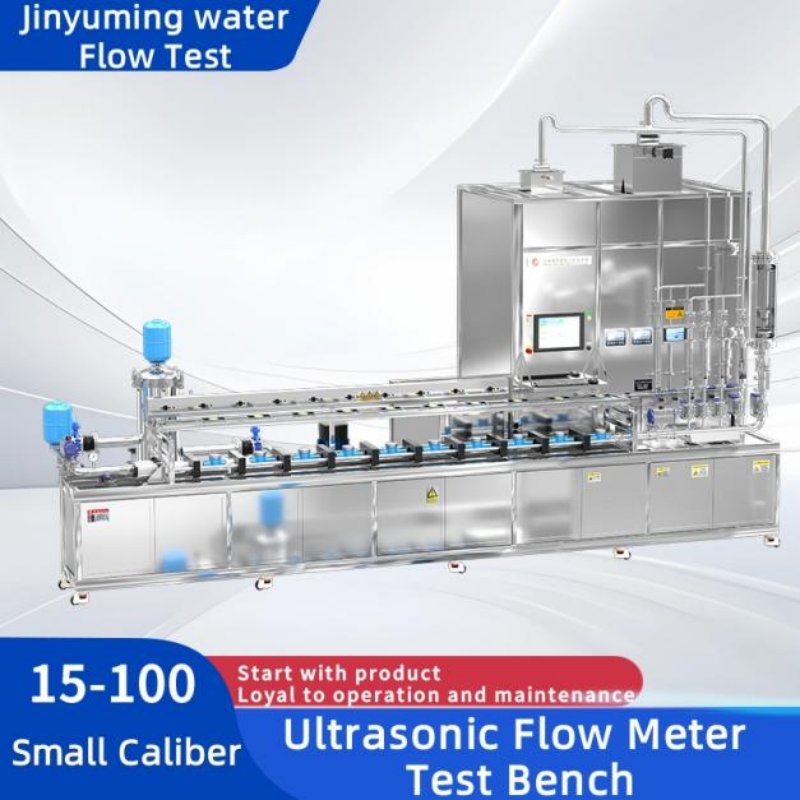

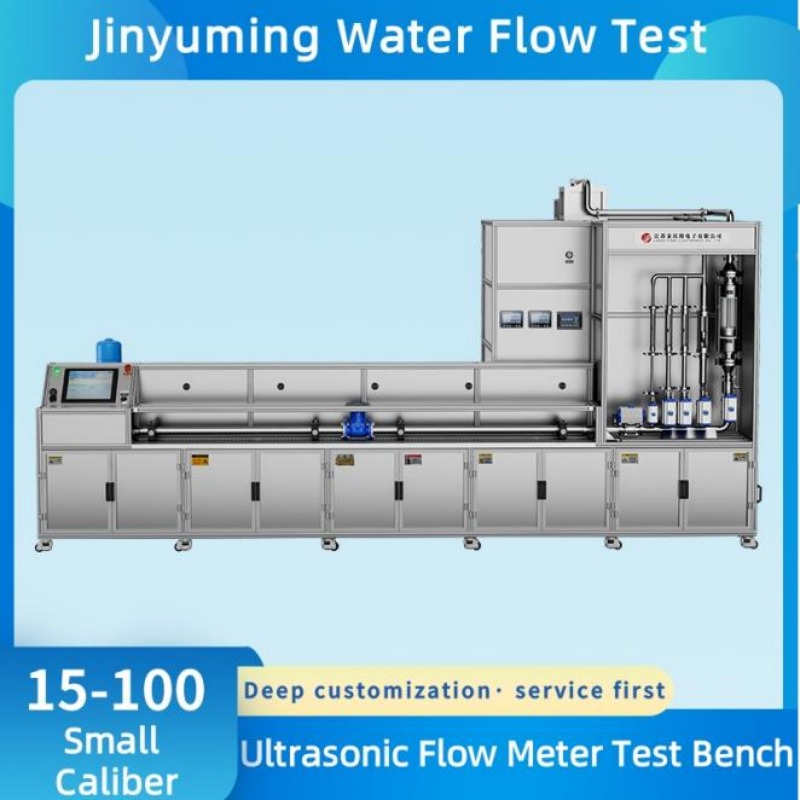

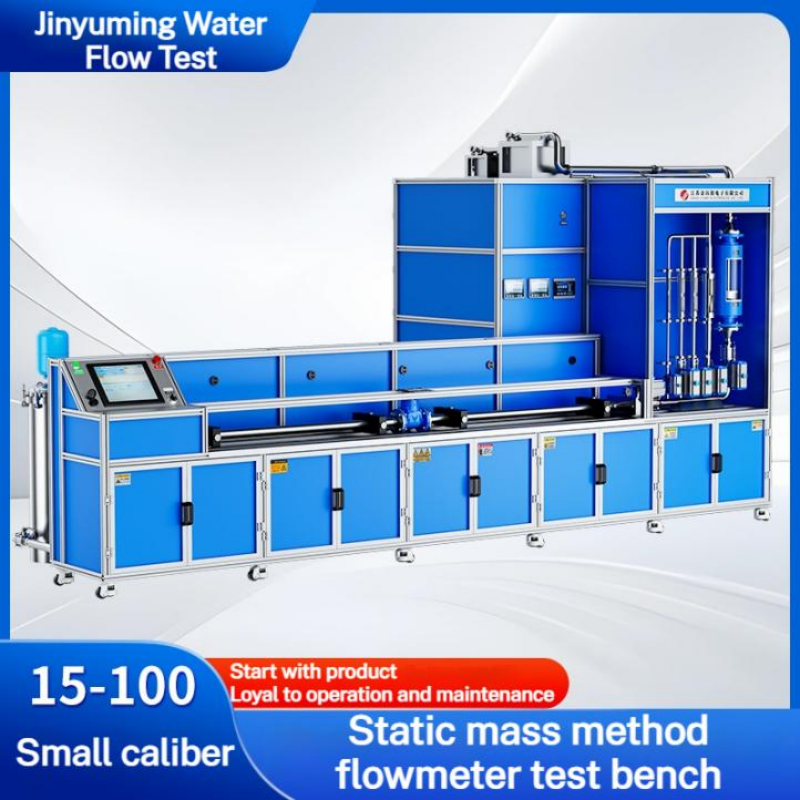

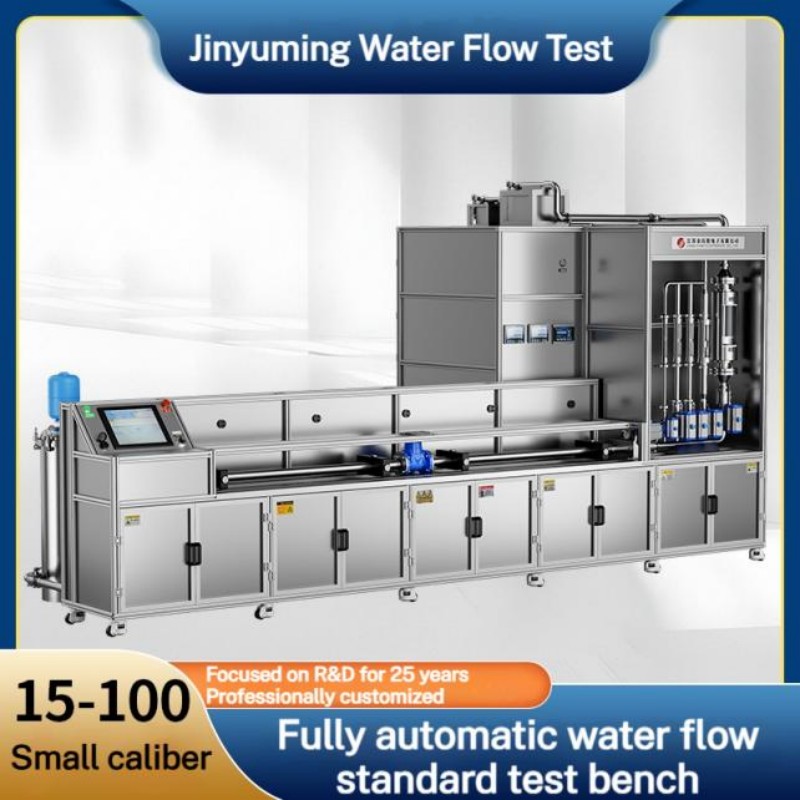

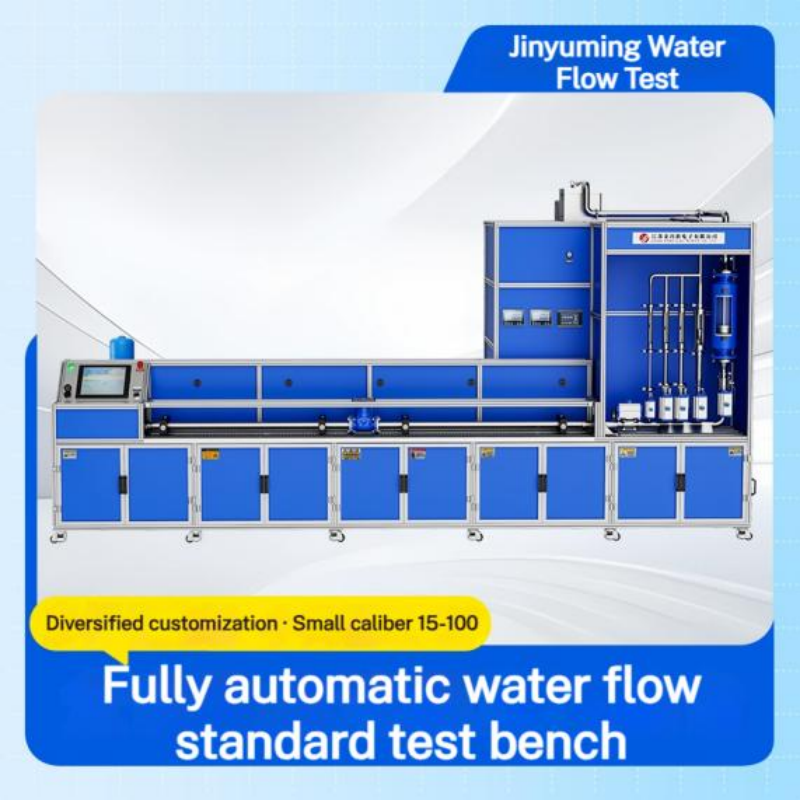

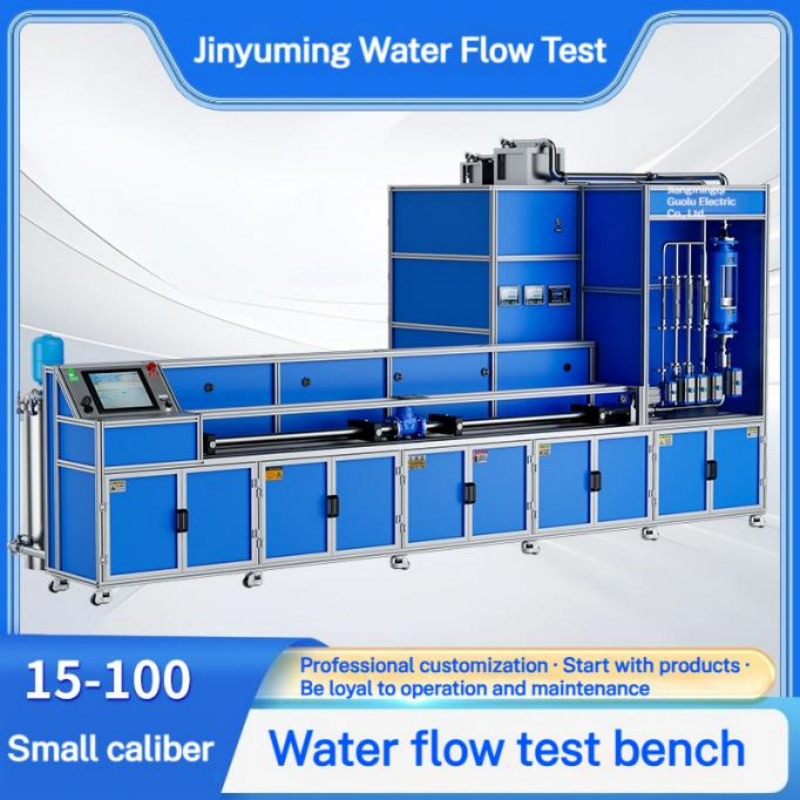

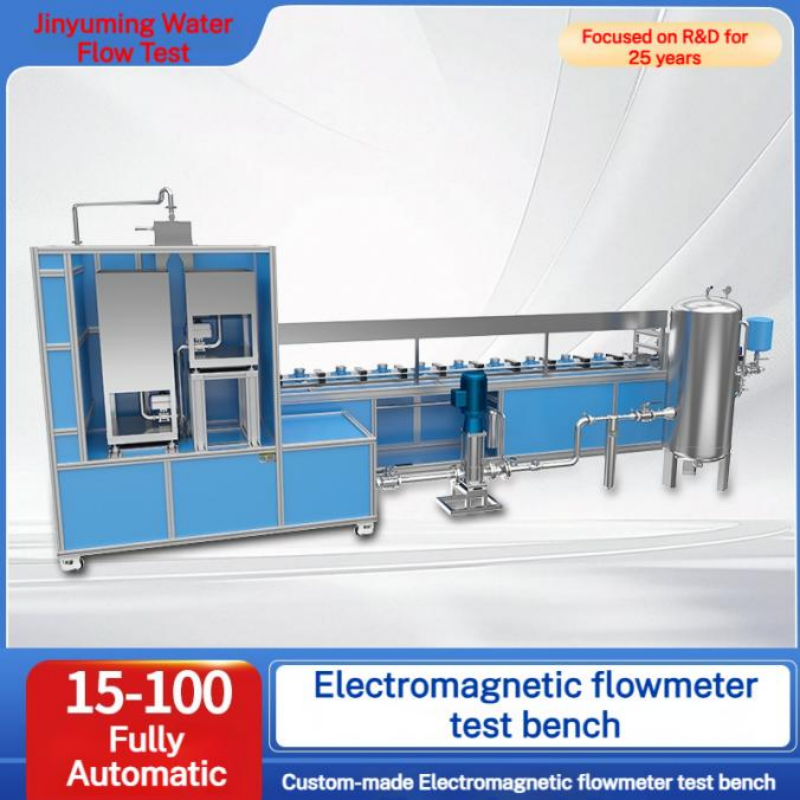

DN15-D100 Fully Automatic Liquid Flow Test Bench(Horizontal Type)

Product Introduction

1. High Production Efficiency: 100 water meters can be tested in eight hours.

2. Fast Input Method: Wireless barcode scanner input of meter numbers—fast, accurate, and convenient.

3. Energy Saving and Consumption Reduction: Saves water, electricity, and labor.

4. Compact Size: Saves space, fully automated, shares a network, and reduces auxiliary materials.

5. Novel Structure: European standard aluminum profile frame, 304 stainless steel piping, novel and stylish appearance. Detailed product information: Please request from sales personnel.

Product Models:JYM-15-100-10-AWH-HS4.0,JYM-15-100-10-AWSH-HS4.0, JYM-15-100-07-AWHP-HS4.0

Functional Parameter Table

Testing Medium: Pure tap water

Testing Method: Dual-time method, start-stop method

Test Meter Type: Ordinary mechanical water meter, ultrasonic water meter, smart water meter

Test Meter Diameter/Quantity: DN15 10 units, DN20 8 units, DN25 6 units, DN32 1 unit, DN40 1 unit, DN50 1 unit,DN65 1 unit, DN80 1 unit, DN100 1 unit

Commutator: Cross-type pneumatic open commutator

Water meter durability testing and water injection system: (0-3.2Mpa) differential pressure vacuum generator

Water meter acquisition system: Mobile phone, camera, laser, infrared, RS232, pulse, 4-20mA

Clipping mechanism: Tube‑replacement type, rotary type, flat type

Standard instruments: Electronic scale, standard meter, volumetric meter

Performance parameter table

Device uncertainty: U≤0.05%(K=2)

Flow stability: Start-stop method 1.0%, others: 0.2%

Flow range: (0.004~40)m³/h

Water pump: TD-100-33G/1 100m³/h

TD-40-48G/2 20 m³/h

Electronic scale resolution: 15KG, 150KG, 300KG, 3000KG

Water source working pressure: 0.3-0.7Mpa

Adjustable; Air source pressure: 0.4-0.7MPa

Standard gauge (instantaneous flow display device):

 DN3: 0.006-0.25 m³/h

DN15: 0.15-6 m²/h

DN40: 1.2-45 m³/h

DN80: 4-160 m²/h
