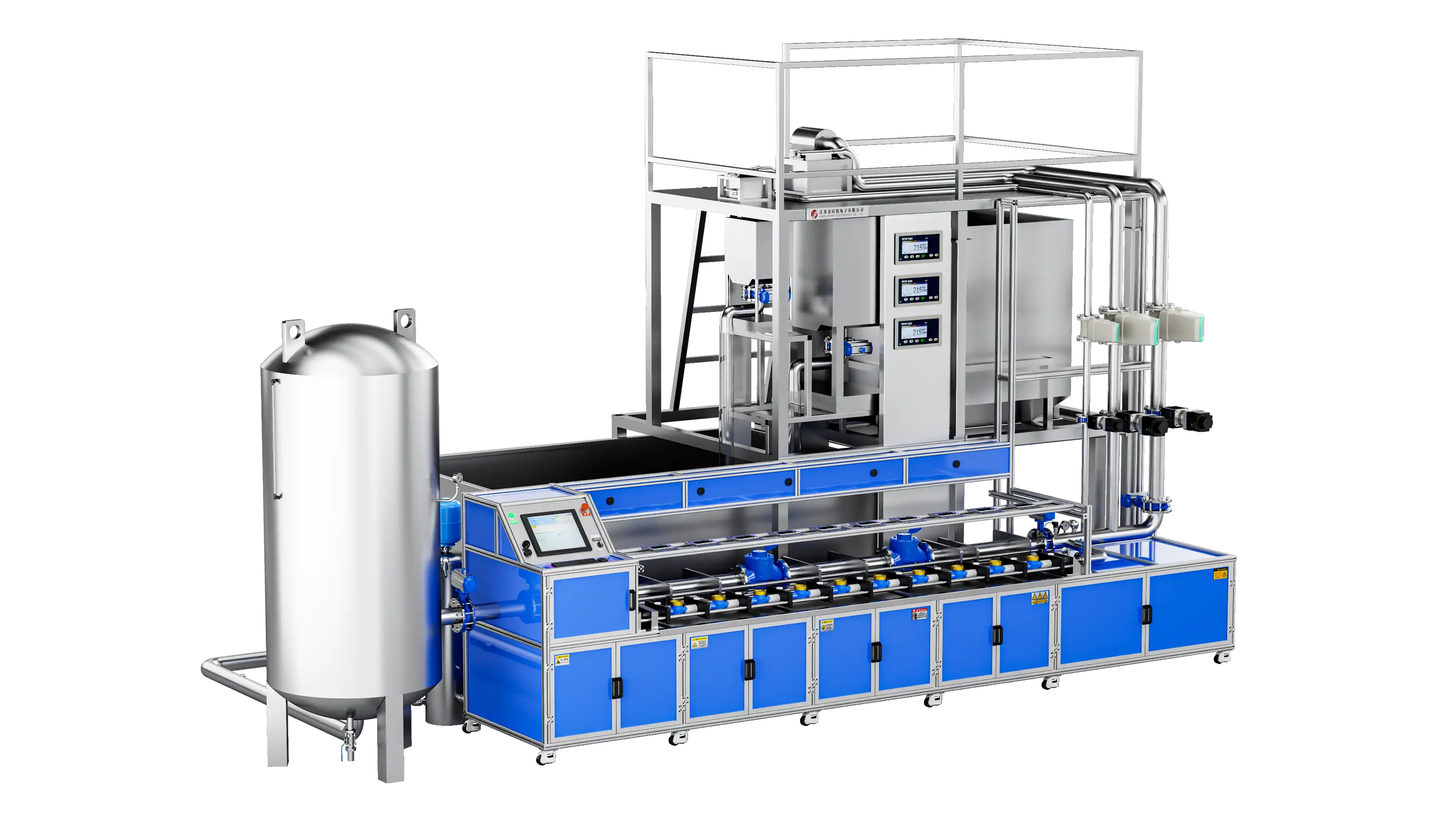

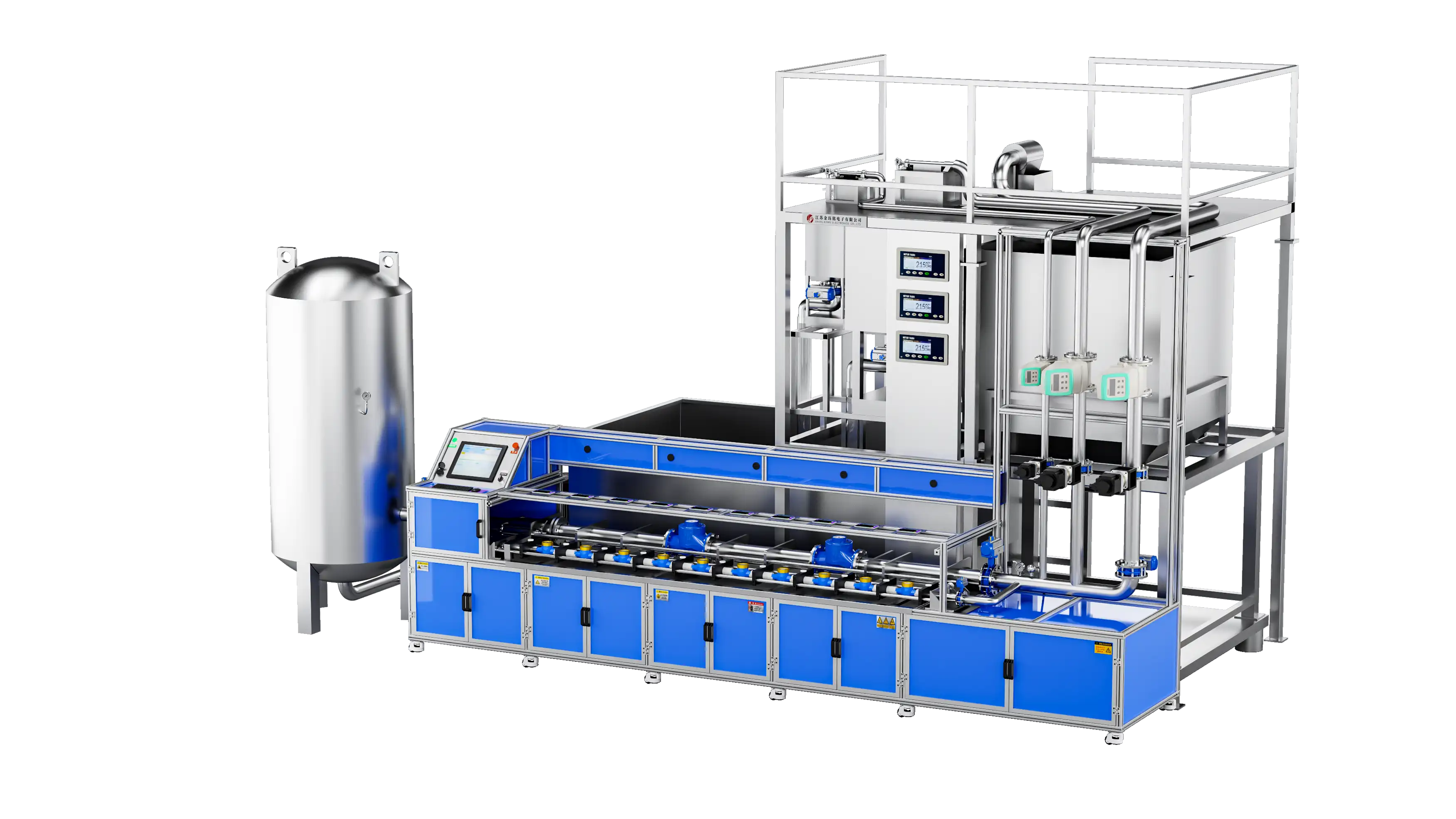

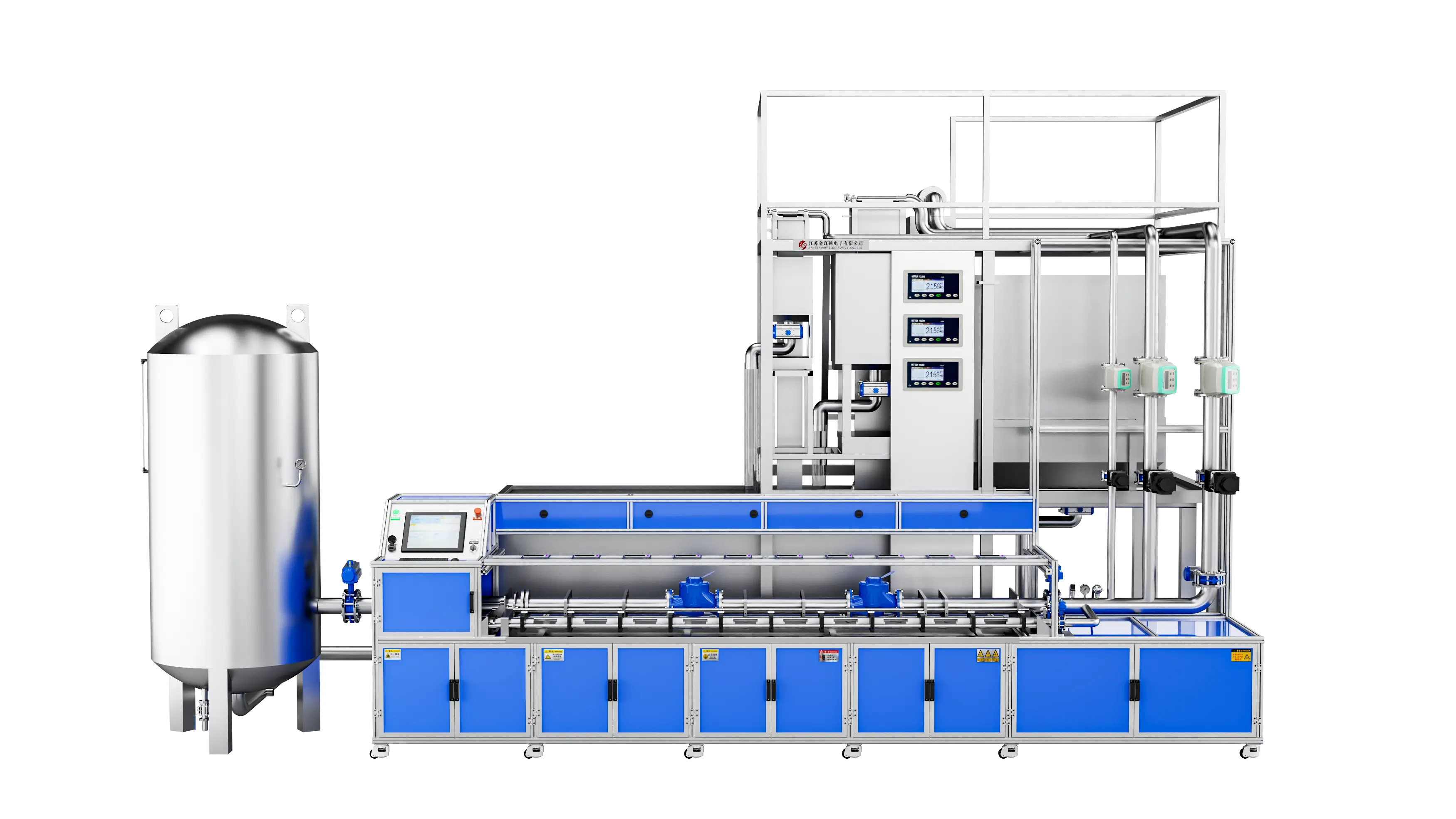

DN15-D100 Fully Automatic Heat Meter Test Bench (Mass Method + Master Meter Method)

Send Inquiry

Product Description

Product Introduction

1. Compact size, small footprint, corrosion resistant, and equipped with wheels for easy movement.

2. 2.7-inch touchscreen panel for setting pressure, vacuum pressure, pressure time, and vacuum water injection time.

3. Pneumatic quick clamping, faster and more efficient than traditional hydraulic clamping, requiring no external high-pressure water source.

4. One-button start, one-button selection (manual or automatic), safe operation.

5. Suitable for mass production, used in conjunction with fully automatic Water Meter Test Benchs and automatic meter Meter Screwing Machines to improve production cycle time and increase capacity.

6. Low power consumption, energy-saving, requires only one operator, saving labor and time.

7. Detailed product information: Request from sales personnel.

Product Model: JYM-15-100-AZZAH-PS2.0

Device Uncertainty	Urel≤0.2%（k=2）
Flow Stability	1.0% for start‑stop method; 0.2% for other methods
Test Medium	Purified tap water
Operating Humidity	≤ 93% RH
Operating Water Temperature	20 ℃ ± 10 ℃
Water Temperature Fluctuation in Single Measurement	Water temperature fluctuation in a single measurement
Water Fluctuation Coefficient per Cycle	≤ ± 0.1%
Water Source Working Pressure	0.0–0.5 MPa, adjustable
Air Source Working Pressure	0.4–0.7 MPa
Device Operating Temperature	4–50 ℃
Number of Meters Under Test	DN15: 10 pcs \| DN20: 8 pcs \| DN25: 6 pcs \| DN40 / DN50 / DN65: 5 pcs \| DN80 / DN100: 3 pcs
Water Pump	1 pc: H=20 m, Q=2 m³/h, P=0.5 kW; 1 pc: H=30 m, Q=40 m³/h, P=7.5 kW; 1 pc: H=30 m, Q=180 m³/h, P=22 kW
Water Tank	15000 L
Commutator	DN25 & DN100 cross‑fork pneumatic open commutator, low noise and high sensitivity; travel difference < 10 ms; uncertainty within 0.002%
Meter Clamping Mechanism	Dual‑cylinder outward‑push series pneumatic clamping mechanism; single pneumatic clamps for front 10 and rear 5 positions
Water Meter Seal Test	Pressure range: (0–2.0) MPa
Bore Diameter	Φ50 mm, telescopic stroke ≥ 80 mm
Timer	(10–100) kHz (adjustable); better than 10⁻⁶
Calibration Signal	Pulse signal, f = (0–10) kHz
Vacuum System	Differential pressure vacuum generator for vacuum water filling to keep water meters fully filled
Supported Operation Modes	Fully automatic, semi‑automatic, touchscreen manual operation
Acquisition Equipment	5 sets of mobile phones with 50 MP resolution, 8G / 128G storage
Standard Device	Mass Method + Master Meter Method
Flow Range	（0.010-130）m³/h
Calibration Method	Start‑stop method	Diversion method	Flow–Time Method	QTY
Electromagnetic Flow Meter Instantaneous Flow Display Advanced (Class 0.5)	DN2：3-90L/H			1
	DN10：20-500L/H			1
	DN25：500-800L/H			1
	DN50：8000-40000L/H			1
	DN100 10-200m³/H			1
Electromagnetic Flow Meter Standard Meter Standard (Class 0.2–0.3)	DN2：3-90L/H			1
	DN10：20-500L/H			1
	DN25：500-800L/H			1
	DN50：8000-40000L/H			1
	DN100 10-200m³/H			1
Electronic Scale Mass Method Standard	①Max=30kg，6000e			1
	②Max=150kg，15000d			1
	③Max=3000kg，15000D			1
	Thermostat Standard for Heat Meter Calibration Device
Standard Platinum Resistance Thermometer	Class 2
Digital Meter	WZPB-2 6½-digit digital meter for temperature acquisition
High Temperature Thermostatic Bath	WL-L1A (High Temp. Bath) Measuring range: (4 – 95) ℃ Max. working temperature difference: 0.03 ℃ Average temperature difference: 0.015 ℃
Low Temperature Thermostatic Bath	WL-L1B (Low Temp. Bath) Measuring range: (room temperature – 95) ℃ Max. working temperature difference: 0.03 ℃ Average temperature difference: 0.015 ℃
Heating Device	Customized according to the water tank size.
